Lamborghini Gallardo LP550 Coupe - Rear Hood And Spoiler - Wing

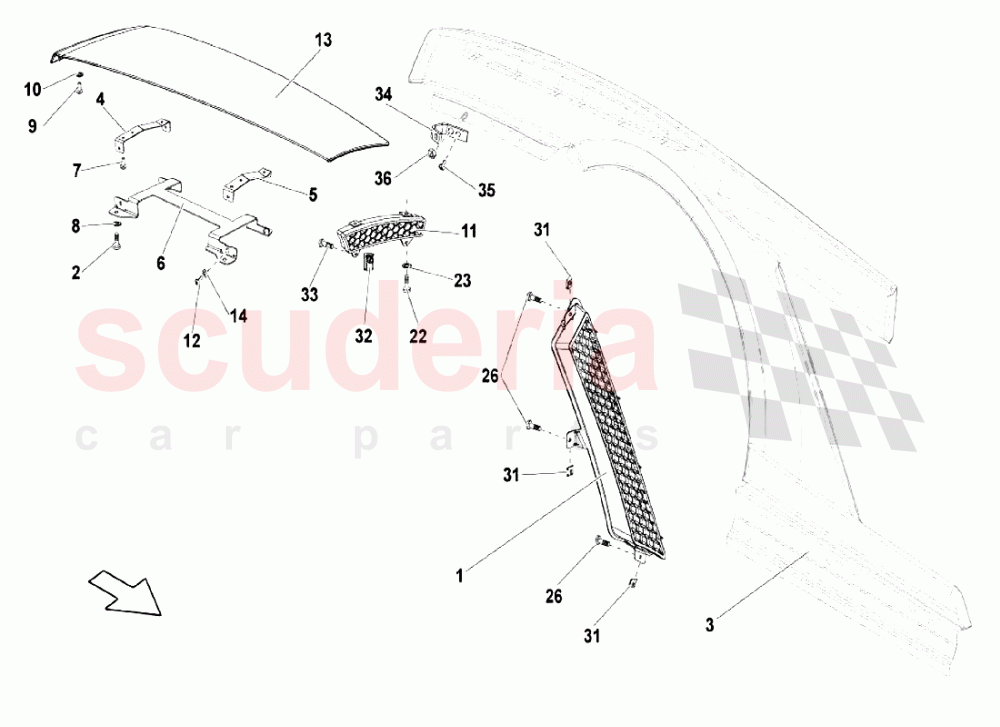

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400317116A	AIR INTAKE GRID, RH (STYLE PACK)	400317116A AIR INTAKE GRID, RH (STYLE PACK)	-	1	Enquire
001	400317115	AIR INTAKE GRID, LH	400317115 AIR INTAKE GRID, LH	-	1	Enquire
001	400317116	AIR INTAKE GRID, RH	400317116 AIR INTAKE GRID, RH	-	1	Enquire
001	400317115A	AIR INTAKE GRID, LH (STYLE PACK)	400317115A AIR INTAKE GRID, LH (STYLE PACK)	-	1	Enquire
002	N0402936	HEXAGON BOLT	N0402936 HEXAGON BOLT	-	4	Enquire
004	408827588A	RH BRACKET	408827588A RH BRACKET	-	1	Enquire
004	408827587A	LH BRACKET	408827587A LH BRACKET	-	1	Enquire
005	408827587	LH BRACKET	408827587 LH BRACKET	-	1	Enquire
005	408827588	RH BRACKET	408827588 RH BRACKET	-	1	Enquire
006	408827606	RH BRACKET	408827606 RH BRACKET	-	1	Enquire
006	408827605	LH BRACKET	408827605 LH BRACKET	-	1	Enquire
007	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	N10335202 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
008	N10612001	WASHER	N10612001 WASHER	-	8	Enquire
009	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	N10335202 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
010	N0115478	WASHER	N0115478 WASHER	-	4	Enquire
011	400827968A	GRID, RH	400827968A GRID, RH	-	1	Enquire
011	400827968B	GRID, RH (STYLE PACK)	400827968B GRID, RH (STYLE PACK)	-	1	Enquire
011	400827967B	GRID, LH (STYLE PACK)	400827967B GRID, LH (STYLE PACK)	-	1	Enquire
011	400827967A	GRID, LH	400827967A GRID, LH	-	1	Enquire
012	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	N10335202 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
013	400827994C	SIDE COVER, RH	400827994C SIDE COVER, RH	-	1	Enquire
013	400827993C	SIDE COVER, LH	400827993C SIDE COVER, LH	-	1	Enquire
014	N0115478	WASHER	N0115478 WASHER	-	8	Enquire
031	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
032	N91104501	CLIP	N91104501 CLIP	-	4	Enquire
033	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
034	400810240A	RH BRACKET	400810240A RH BRACKET	-	1	Enquire
034	400810239C	LH BRACKET	400810239C LH BRACKET	-	1	Enquire
035	N10448504	SCREW M6X16	N10448504 SCREW M6X16	-	2	Enquire
036	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
