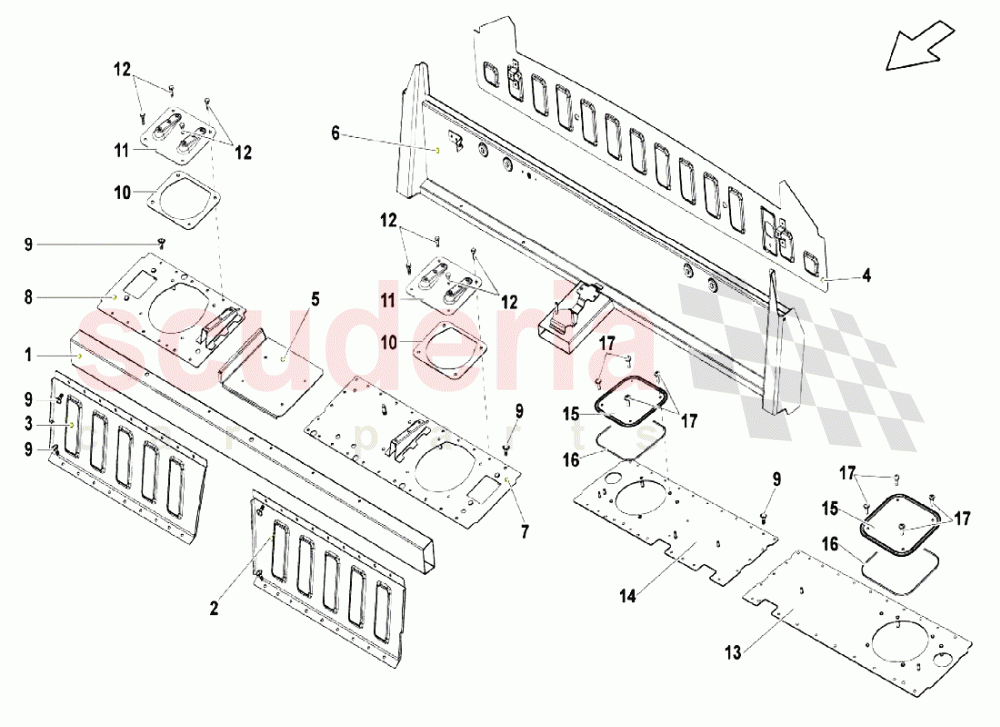

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	403803221	CROSS MEMBER (WITH PREDISPOSITION ROLL BAR)	403803221 CROSS MEMBER (WITH PREDISPOSITION ROLL BAR)	$1,280.92	1
001	400803221C	CROSS MEMBER	400803221C CROSS MEMBER	$723.11	1
002	408801275A	BOARD	408801275A BOARD	$392.49	1
003	408801276A	BOARD	408801276A BOARD	$392.49	1
004	408813501G	REAR PANEL	408813501G REAR PANEL	$4,280.89	1
006	408813511G	REAR PANEL	408813511G REAR PANEL	$1,854.83	1
009	N90919302	SCREW M5X18	N90919302 SCREW M5X18	$0.77 MSRP: ~~7.27~~ (89.4% off)	82
010	403201621	GASKET (WITH PREDISPOSITION ROLL BAR)	403201621 GASKET (WITH PREDISPOSITION ROLL BAR)	$28.76	2
011	403201970	COVER (WITH PREDISPOSITION ROLL BAR)	403201970 COVER (WITH PREDISPOSITION ROLL BAR)	$87.76	2
013	408813503C	BOARD	408813503C BOARD	$423.39	1
014	408813504C	BOARD	408813504C BOARD	$431.44	1
015	420803961	COVER	420803961 COVER	$12.24	2
016	420803963	GASKET	420803963 GASKET	$6.11	2
017	N91054001	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	N91054001 SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	$1.04 MSRP: ~~7.27~~ (85.7% off)	8
