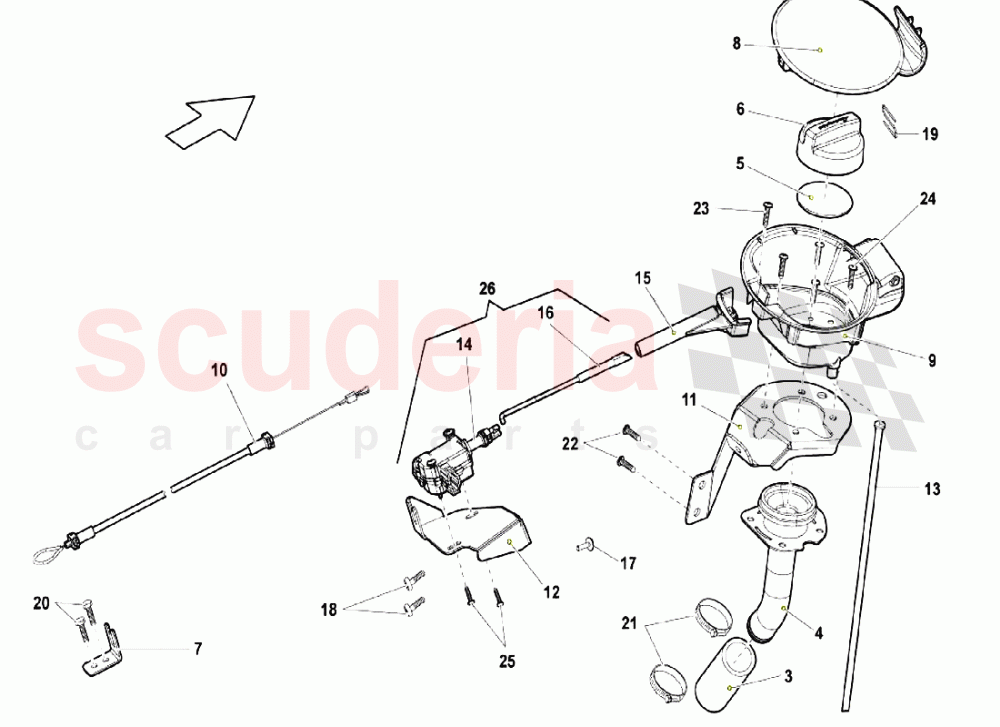

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
003	400201609	FUEL FILLER PIPE	400201609 FUEL FILLER PIPE	-	1	Enquire
005	400201557	GASKET	400201557 GASKET	-	1	Enquire
006	400201587A	Fuel Filler Plug	400201587A Fuel Filler Plug	-	1	Enquire
009	400809933C	FUEL FILLER TANK	400809933C FUEL FILLER TANK	-	1	Enquire
010	400809977A	FUEL FILLER LID MANUAL OPENING CABLE	400809977A FUEL FILLER LID MANUAL OPENING CABLE	-	1	Enquire
010	400809977	FUEL FILLER LID MANUAL OPENING CABLE	400809977 FUEL FILLER LID MANUAL OPENING CABLE	-	1	Enquire
012	400959849C	ACTUATOR SUPPORT BRACKET	400959849C ACTUATOR SUPPORT BRACKET	-	1	Enquire
013	8Z0809937	WATER DRAIN PIPE	8Z0809937 WATER DRAIN PIPE	-	1	Enquire
014	8Z0810773A	Fuel Flap Motor	8Z0810773A Fuel Flap Motor	-	1	Enquire
015	8Z0810901	ACTUATOR ROD SUPPORT	8Z0810901 ACTUATOR ROD SUPPORT	-	1	Enquire
017	N90732103	HEXAGON SOCKET OVAL HEAD BOLT	N90732103 HEXAGON SOCKET OVAL HEAD BOLT	-	1	Enquire
018	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
019	1J0809931	SPRING	1J0809931 SPRING	-	1	Enquire
021	N91115401	SPRING BAND CLAMP	N91115401 SPRING BAND CLAMP	-	2	Enquire
022	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
023	N90732103	HEXAGON SOCKET OVAL HEAD BOLT	N90732103 HEXAGON SOCKET OVAL HEAD BOLT	-	1	Enquire
024	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
026	408959776	ACTUATOR ASSEMBLY	408959776 ACTUATOR ASSEMBLY	-	1	Enquire
