Frame Elements - Side Member Rear Part 2 of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

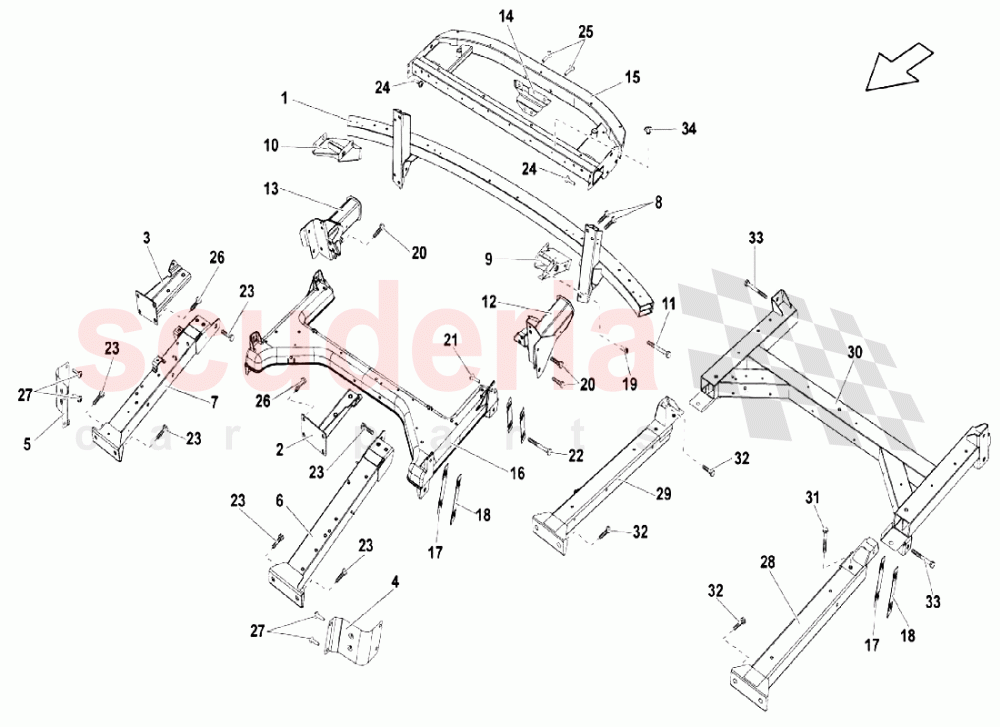

Lamborghini Gallardo LP550 Coupe - Frame Elements - Side Member Rear Part 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	400823429	PUFFER	400823429 PUFFER	-	2	Enquire
001	400807307A	REAR BUMPER	400807307A REAR BUMPER	-	1	Enquire
002	400809125	BRACKET	400809125 BRACKET	-	1	Enquire
003	400809126	BRACKET	400809126 BRACKET	-	1	Enquire
004	400810427	SUPPORT	400810427 SUPPORT	-	1	Enquire
005	400810428	SUPPORT	400810428 SUPPORT	-	1	Enquire
006	408813703A	SUPPORT	408813703A SUPPORT	-	1	Enquire
007	408813704A	SUPPORT	408813704A SUPPORT	-	1	Enquire
008	N90365912	OVAL HEXAGON SOCKET HEAD BOLT	N90365912 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
009	400813721	SUPPORT	400813721 SUPPORT	-	1	Enquire
010	400813722	SUPPORT	400813722 SUPPORT	-	1	Enquire
011	N0103917	SCREW M8X100X41	N0103917 SCREW M8X100X41	-	11	Enquire
012	400807553	STRUT,BUMPER	400807553 STRUT,BUMPER	-	1	Enquire
013	400807554	STRUT,BUMPER	400807554 STRUT,BUMPER	-	1	Enquire
014	400813787A	REINFORCEMENT	400813787A REINFORCEMENT	-	1	Enquire
015	400814291A	CROSS MEMBER	400814291A CROSS MEMBER	-	1	Enquire
016	420814285C	CROSS MEMBER	420814285C CROSS MEMBER	-	1	Enquire
017	420813176	INSERT 0,5 MM	420813176 INSERT 0,5 MM	-	4	Enquire
018	420813176A	INSERT 1 MM	420813176A INSERT 1 MM	-	4	Enquire
019	N90365912	OVAL HEXAGON SOCKET HEAD BOLT	N90365912 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
020	N91104901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91104901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	-	12	Enquire
021	WHT002459	SCREW M8X40	WHT002459 SCREW M8X40	-	4	Enquire
022	N10709401	HEXAGON HEAD BOLT (COMBI)	N10709401 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
023	N0195307	HEX COLLARED BOLT	N0195307 HEX COLLARED BOLT	-	6	Enquire
024	420807739	SHOULDERED BOLT	420807739 SHOULDERED BOLT	-	6	Enquire
025	N90365912	OVAL HEXAGON SOCKET HEAD BOLT	N90365912 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
026	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
027	N90949302	SCREW M6X15.5	N90949302 SCREW M6X15.5	-	8	Enquire
