Lamborghini Gallardo LP550 Coupe - Doors - Door Panel 2

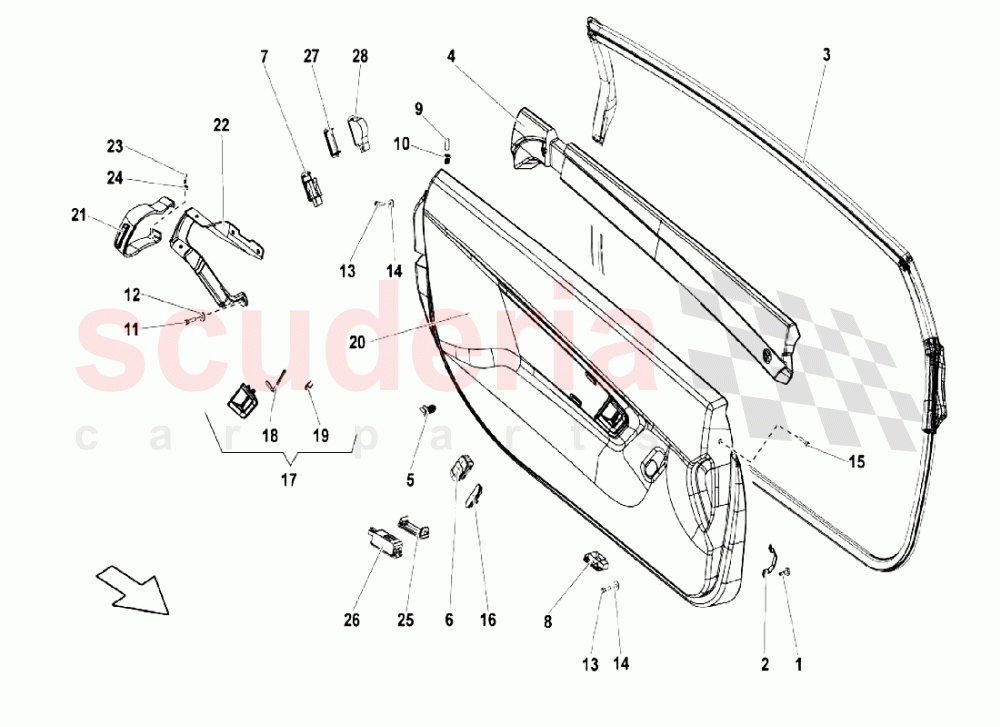

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT000767	SCREW	WHT000767 SCREW	-	4	Enquire
002	400035243	TWEETER SUPPORT BRACKET	400035243 TWEETER SUPPORT BRACKET	-	2	Enquire
003	400831708	RIGHT DOOR WEATHERSTRIP, INNER	400831708 RIGHT DOOR WEATHERSTRIP, INNER	-	1	Enquire
003	400831707	LEFT DOOR WEATHERSTRIP, INNER	400831707 LEFT DOOR WEATHERSTRIP, INNER	-	1	Enquire
004	400837967C	DOOR CRASH PAD	400837967C DOOR CRASH PAD	-	1	Enquire
004	400837968C	DOOR CRASH PAD	400837968C DOOR CRASH PAD	-	1	Enquire
005	4D0867299A	FASTENER	4D0867299A FASTENER	-	6	Enquire
006	400962107B	DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	400962107B DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	-	2	Enquire
006	400962107A	DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	400962107A DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	-	2	Enquire
009	8N0919238	WARNING LAMP	8N0919238 WARNING LAMP	-	1	Enquire
010	8Z0919424A4PK	SLEEVE DWA	8Z0919424A4PK SLEEVE DWA	-	2	Enquire
011	N10544302	SCREW M5X25	N10544302 SCREW M5X25	-	2	Enquire
012	N01154012	WASHER	N01154012 WASHER	-	6	Enquire
013	WHT003111	SCREW M5X16	WHT003111 SCREW M5X16	-	2	Enquire
015	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
016	402837232C	PLUG	402837232C PLUG	-	1	Enquire
017	400837115A	LH HANDLE KIT (CARBON INTERIOR)	400837115A LH HANDLE KIT (CARBON INTERIOR)	-	1	Enquire
017	400837116B	RH HANDLE KIT (DECORLACK PAINTED)	400837116B RH HANDLE KIT (DECORLACK PAINTED)	-	1	Enquire
017	400837115B	LH HANDLE KIT (DECORLACK PAINTED)	400837115B LH HANDLE KIT (DECORLACK PAINTED)	-	1	Enquire
017	400837116A	RH HANDLE KIT (CARBON INTERIOR)	400837116A RH HANDLE KIT (CARBON INTERIOR)	-	1	Enquire
020	404867105E	LH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	404867105E LH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	-	1	Enquire
020	404867106D	RH DOOR PANEL ASSEMBLY (WITHAUT PREDISPOSITION FOR LOUDSPEAKER)	404867106D RH DOOR PANEL ASSEMBLY (WITHAUT PREDISPOSITION FOR LOUDSPEAKER)	-	1	Enquire
020	404867105D	LH DOOR PANEL ASSEMBLY (WITHAUT PREDISPOSITION FOR LOUDSPEAKER)	404867105D LH DOOR PANEL ASSEMBLY (WITHAUT PREDISPOSITION FOR LOUDSPEAKER)	-	1	Enquire
020	404867106E	RH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	404867106E RH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	-	1	Enquire
021	403837221	LH HANDLE	403837221 LH HANDLE	-	1	Enquire
021	403837222	RH HANDLE	403837222 RH HANDLE	-	1	Enquire
022	403837896	RH BRACKET	403837896 RH BRACKET	-	1	Enquire
022	403837895	LH BRACKET	403837895 LH BRACKET	-	1	Enquire
023	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	-	4	Enquire
024	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT	-	4	Enquire
025	8E0867443	DUMMY COVER	8E0867443 DUMMY COVER	-	2	Enquire
026	4E0947415	LIGHT	4E0947415 LIGHT	-	2	Enquire
027	8P0947412	REAR LIGHT REFLECTOR	8P0947412 REAR LIGHT REFLECTOR	-	2	Enquire
028	6Y0947411	DOOR WARNING LIGHT	6Y0947411 DOOR WARNING LIGHT	-	2	Enquire
