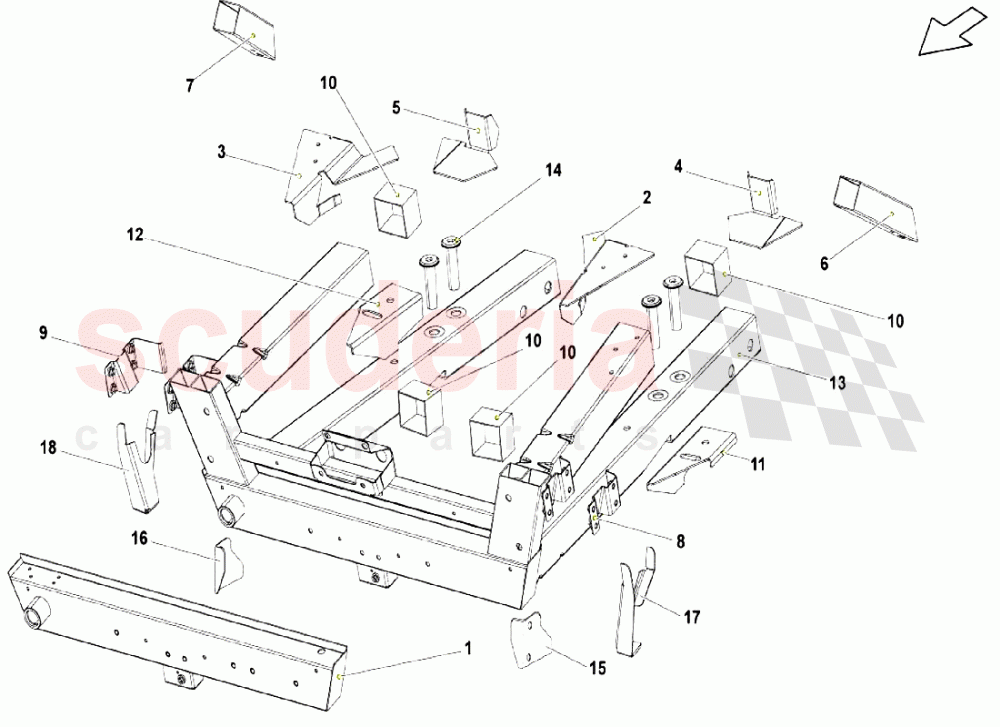

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400805541	CROSS MEMBER	400805541 CROSS MEMBER	$1,686.83	1
002	400805601A	INTERSECTION ELEMENT	400805601A INTERSECTION ELEMENT	$825.27	1
003	400805602A	INTERSECTION ELEMENT	400805602A INTERSECTION ELEMENT	$825.27	1
004	400805635	INTERSECTION ELEMENT	400805635 INTERSECTION ELEMENT	$452.97	1
005	400805636	INTERSECTION ELEMENT	400805636 INTERSECTION ELEMENT	$242.62	1
006	400805697	SUPPORT	400805697 SUPPORT	$269.48	1
007	400805698	SUPPORT	400805698 SUPPORT	$269.48	1
008	400805887A	U-BOLT	400805887A U-BOLT	$365.61	1
009	400805888A	U-BOLT	400805888A U-BOLT	$365.61	1
011	400806669	DOUBLE SHEET METAL	400806669 DOUBLE SHEET METAL	$509.42	1
012	400806670	DOUBLE SHEET METAL	400806670 DOUBLE SHEET METAL	$509.42	1
013	400805011G	FRONT CHASSIS PART	400805011G FRONT CHASSIS PART	$13,844.04	1
014	400805179L	FRONT CHASSIS PART -	400805179L FRONT CHASSIS PART -	$135.74	4
017	400806365B	LH SUPPORT	400806365B LH SUPPORT	$305.11	1
018	400806366B	RH SUPPORT	400806366B RH SUPPORT	$305.11	1
