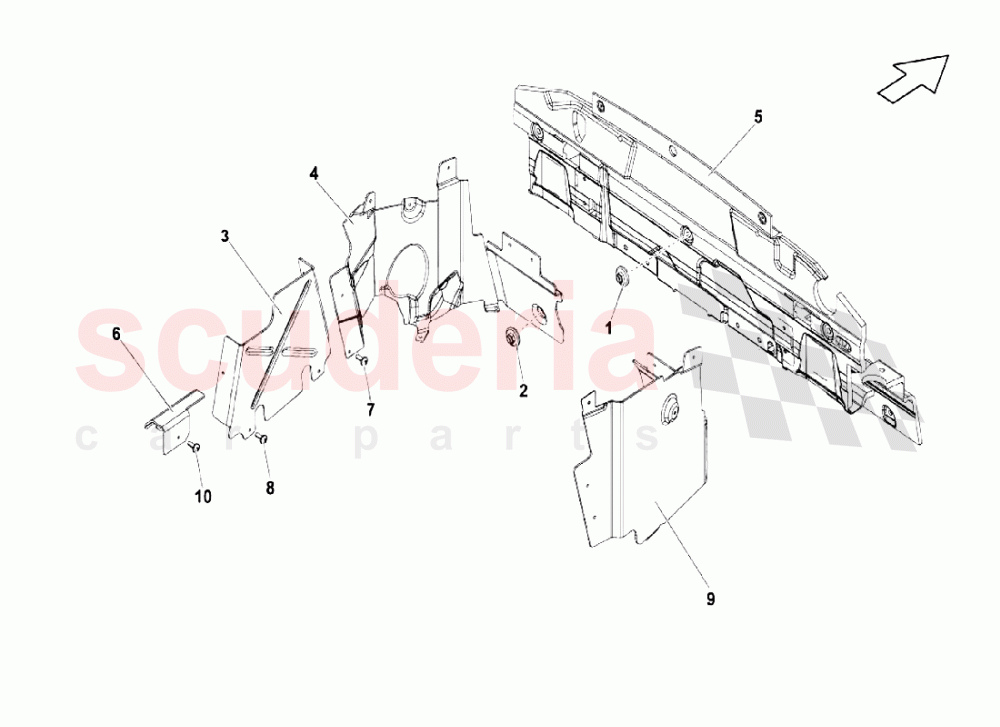

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N90641901	NUT	N90641901 NUT	-	13	Enquire
002	N90745001	HEXAGON COLLAR NUT IN STOCK	N90745001 HEXAGON COLLAR NUT IN STOCK	-	4	Enquire
003	420825741	LH PANEL	420825741 LH PANEL	-	1	Enquire
003	420825742	RH PANEL	420825742 RH PANEL	-	1	Enquire
004	420825731E	LH PANEL	420825731E LH PANEL	-	1	Enquire
005	408825249A	FIREPROOF SHIELD	408825249A FIREPROOF SHIELD	-	1	Enquire
006	420825707	LH PANEL	420825707 LH PANEL	-	1	Enquire
006	420825708	RH PANEL	420825708 RH PANEL	-	1	Enquire
007	4E0831701	Screw M6X13 IN STOCK	4E0831701 Screw M6X13 IN STOCK	-	15	Enquire
008	4E0831701	Screw M6X13 IN STOCK	4E0831701 Screw M6X13 IN STOCK	-	12	Enquire
009	420825733A	RH PANEL	420825733A RH PANEL	-	1	Enquire
010	4E0831701	Screw M6X13 IN STOCK	4E0831701 Screw M6X13 IN STOCK	-	4	Enquire
