Engine Hood (for Cars With Fast Cooling) of Lamborghini Lamborghini Diablo SV (1999)

View All

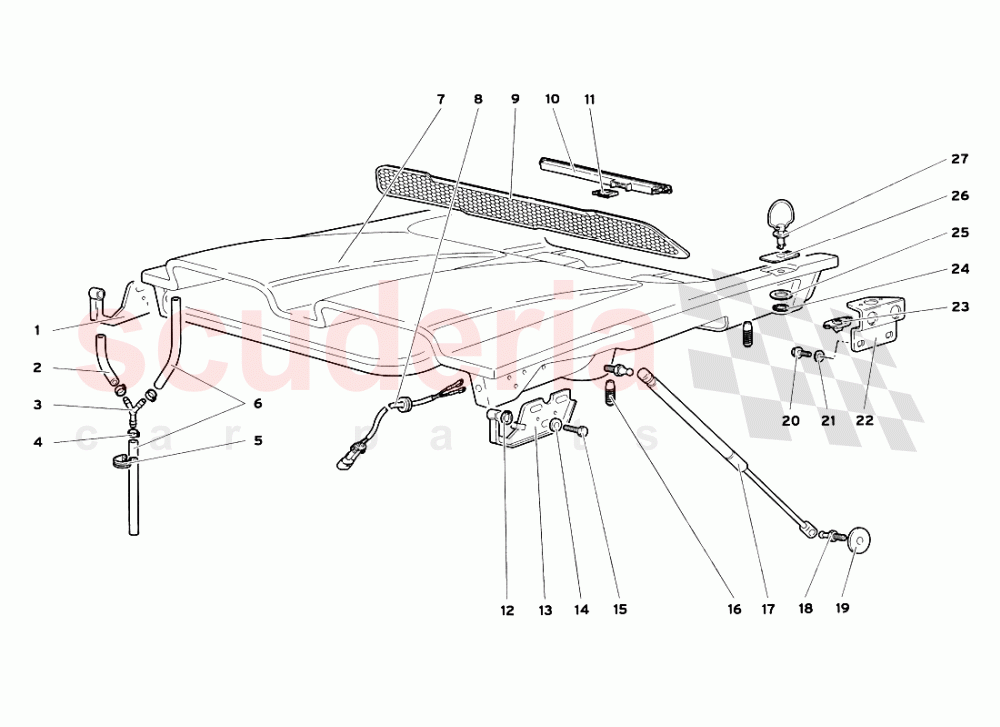

Lamborghini Diablo SV (1999) - Engine Hood (for Cars With Fast Cooling)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9460322	RIGHT HINGE	9460322 RIGHT HINGE (Valid for cars with fast closing hood) CERNIERA DX	-	1	Enquire
002	9490116	PIPE	9490116 PIPE (Valid for cars with fast closing hood) TUBO	-	2	Enquire
003	6108392	CONNECTION	6108392 CONNECTION (Valid for cars with fast closing hood) RACCORDO 3 VIE	-	2	Enquire
004	8831528	CLAMP	8831528 CLAMP (Valid for cars with fast closing hood) FASCETTA	-	6	Enquire
005	8831515	CLAMP	8831515 CLAMP (Valid for cars with fast closing hood) FASCETTA	-	2	Enquire
006	9490115	PIPE	9490115 PIPE (Valid for cars with fast closing hood) TUBO	-	4	Enquire
007	9460015	ENGINE BONNET	9460015 ENGINE BONNET (Valid for cars with fast closing hood) COFANO MOTORE	-	1	Enquire
008	6135191	ELECT CABLET-	6135191 ELECT CABLET- (Valid for cars with fast closing hood) CABLAGGIO	-	1	Enquire
009	9430172	NET	9430172 NET (Valid for cars with fast closing hood) RETE	-	1	Enquire
010	410945249A	High Mount Brake Light	410945249A High Mount Brake Light use part number: 0R1470010	-	1	Enquire
010	410945249A	High Mount Brake Light	410945249A High Mount Brake Light	-	1	Enquire
011	6132280	CONNECTOR	6132280 CONNECTOR (Valid for cars with fast closing hood) CONNESSIONE	-	1	Enquire
012	8580801	RETAINER RING	8580801 RETAINER RING (Valid for cars with fast closing hood) ANELLO RITEGNO	-	2	Enquire
013	9460323	LEFT HINGE	9460323 LEFT HINGE (Valid for cars with fast closing hood) CERNIERA SX	-	1	Enquire
014	8400656	WASHER	8400656 WASHER (Valid for cars with fast closing hood) RONDELLA	-	6	Enquire
015	8100656	SCREW	8100656 SCREW (Valid for cars with fast closing hood) VITE	-	6	Enquire
016	9460214	RUBBER BUMPER	9460214 RUBBER BUMPER (Valid for cars with fast closing hood) PARACOLPI COMMA	-	4	Enquire
017	92004388	ENGINE COVER STRUT	92004388 ENGINE COVER STRUT (Valid for cars with fast closing hood) MARTINETTO	-	2	Enquire
018	9459305	BALL PIN	9459305 BALL PIN (Valid for cars with fast closing hood) PERNO GIUNTO SFERICO	-	4	Enquire
019	WHT001942	WASHER	WHT001942 WASHER (Valid for cars with fast closing hood) RONDELLA	-	2	Enquire
020	8100601	SCREW	8100601 SCREW (Valid for cars with fast closing hood) VITE	-	4	Enquire
021	8410602	WASHER	8410602 WASHER (Valid for cars with fast closing hood) RONDELLA	-	4	Enquire
022	9460219	SUPPORT - (Valid for cars with fast closing hood) SUPPORTO	9460219 SUPPORT - (Valid for cars with fast closing hood) SUPPORTO (Valid for cars with fast closing hood) O	-	2	Enquire
023	9411615	CLIP	9411615 CLIP (Valid for cars with fast closing hood) FERMAGLIO	-	2	Enquire
024	8581101	RETAINER RING	8581101 RETAINER RING (Valid for cars with fast closing hood) ANELLO RITEGNO	-	2	Enquire
025	3230722	WASHER	3230722 WASHER (Valid for cars with fast closing hood) RONDELLA	-	2	Enquire
027	9460018	LOCK	9460018 LOCK (Valid for cars with fast closing hood) CHIUSURA RAPIDA	-	2	Enquire
