Body Elements - Right Flank of Lamborghini Lamborghini Diablo SV (1999)

View All

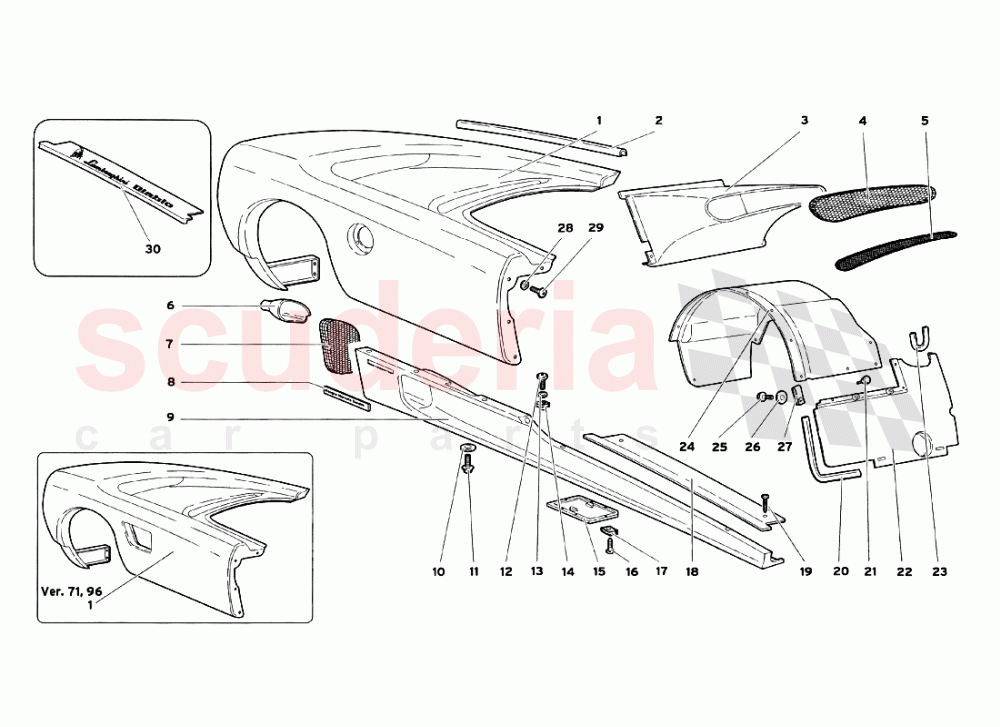

Lamborghini Diablo SV (1999) - Body Elements - Right Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9410011	REAR MUDG. FENDER	9410011 REAR MUDG. FENDER PARAFANGO POST.	$9,925.54	1
001	9410012	RH REAR FENDER	9410012 RH REAR FENDER (Valid for USA - July 1999) PARAFANGO POST.	$9,925.54	1
001	9410012	RH REAR FENDER	9410012 RH REAR FENDER (Valid for CANADA - July 1999) PARAFANGO POST.	$9,925.54	1
002	9490113	GASKET	9490113 GASKET GUARNIZIONE	$34.02	1
003	9453146	CONVEYOR	9453146 CONVEYOR CONVOGLIATORE	$830.02	1
004	9430124	NET	9430124 NET RETE	$529.77	1
005	9430126	NET	9430126 NET RETE	$544.67	1
006	9453154	CONVEYOR	9453154 CONVEYOR CONVOGLIATORE	$240.69 MSRP: ~~243.50~~ (1.2% off)	1
007	9430169	NET	9430169 NET RETE	$85.88	1
009	9410304	SIDE PANEL	9410304 SIDE PANEL BRANCARDO	$4,812.84	1
010	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	3
011	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	9
012	87400685	SCREW	87400685 SCREW VITE	-	3	Enquire
013	8400624	WASHER	8400624 WASHER RONDELLA	$4.78	3
014	N90327506	SPEED NUT	N90327506 SPEED NUT	$0.94	6
015	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZMMtt	$67.50 MSRP: ~~70.60~~ (4.4% off)	1
016	WHT003114	SCREW	WHT003114 SCREW VITE	$5.45	6
017	WHT003424	CLIP	WHT003424 CLIP MOLLETTA	$0.89 MSRP: ~~7.25~~ (87.7% off)	6
018	9458307	DOORSILL MOULDING	9458307 DOORSILL MOULDING BATTICALCAGNO	$3,777.92	1
019	8700334	SCREW	8700334 SCREW VITE	$0.70 MSRP: ~~7.25~~ (90.3% off)	2
020	9411511	GASKET	9411511 GASKET GUARNIZIONE	$109.81	1
021	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI COMMA	$22.52	2
022	9411525	PROTECTION	9411525 PROTECTION PARASASSI	$405.29	1
023	9411513	GASKET	9411513 GASKET GUARNIZIONE	$183.12	1
024	9911500	REAR WHEELBOX	9911500 REAR WHEELBOX PASSARUOTA POST.	$420.61	1
025	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	17
026	N91109201	WASHER	N91109201 WASHER RONDELLA	$1.55 MSRP: ~~5.85~~ (73.5% off)	17
027	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	17
028	8400624	WASHER	8400624 WASHER RONDELLA	$4.78	9
029	8740685	SCREW	8740685 SCREW VITE	$21.42	9
030	9458614	DOORSILL MOULDING	9458614 DOORSILL MOULDING (Valid for USA - July 1999) BATTICALCAGNO	$764.28	1
