Front Hood 2 of Lamborghini Lamborghini Diablo SV (1999)

View All

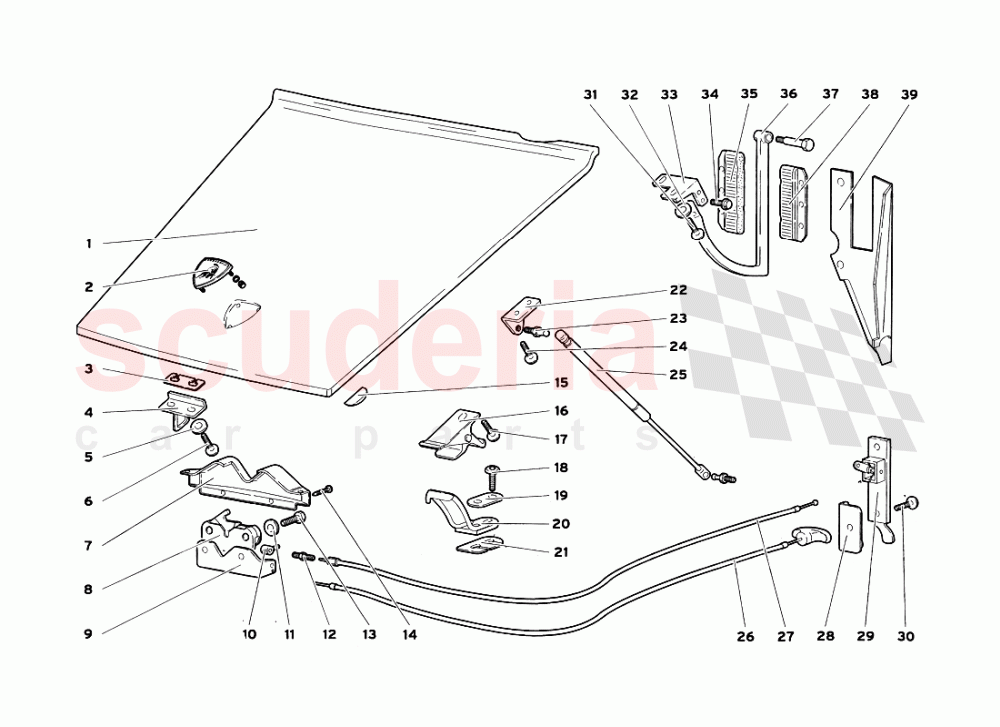

Lamborghini Diablo SV (1999) - Front Hood 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9459010	FRONT BONNET	9459010 FRONT BONNET COFANO ANTERIORE	$1,910.66 MSRP: ~~1,935.00~~ (1.3% off)	1
002	6127985	ORNAMENT	6127985 ORNAMENT SCUDO LAMBORGHINI	$455.33	1
003	9459228	SHIM	9459228 SHIM SPESSORE	$17.43	2
004	9459227	LOCK STRIKER	9459227 LOCK STRIKER RISCONTRO	$127.19	1
005	8400627	WASHER	8400627 WASHER RONDELLA	$21.97 MSRP: ~~22.95~~ (4.3% off)	2
006	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	2
007	9459230	COVERING	9459230 COVERING RIVESTIMENTO	$41.75	1
008	9459216	LOCK	9459216 LOCK SERRATURA	$191.07	1
009	9459213	SPACER	9459213 SPACER DISTANZIALE	$22.27	1
010	9459217	CLAMP	9459217 CLAMP MORSETTO	-	1	Enquire
011	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	2
012	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE REGISTRO	-	1	Enquire
013	8100623	SCREW	8100623 SCREW VITE	$0.36	2
014	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE IN STOCK	$1.32 MSRP: ~~7.18~~ (81.6% off)	2
015	9459108	RIGHT ELASTIC PAD	9459108 RIGHT ELASTIC PAD TASSELLO DX	$34.94 MSRP: ~~36.45~~ (4.1% off)	1
015	9459109	LEFT ELASTIC PAD	9459109 LEFT ELASTIC PAD TASSELLO SX	$34.94 MSRP: ~~36.45~~ (4.1% off)	1
016	9459208	HOOK	9459208 HOOK GANCIO	$115.04	1
017	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	1
018	8700665	SCREW	8700665 SCREW VITE	$50.57 MSRP: ~~53.00~~ (4.6% off)	2
019	9459226	PLATE	9459226 PLATE PIASTRINA	$30.21	1
020	9459224	LOCK STRIKER	9459224 LOCK STRIKER RISCONTRO	$170.80	1
021	9459235	SHIM	9459235 SHIM SPESSORE Dl REGISTRO 2 MM	$7.27 MSRP: ~~7.40~~ (1.8% off)	1
021	9459225	SHIM	9459225 SHIM SPESSORE Dl REGISTRO 1 MM	$15.88 MSRP: ~~16.50~~ (3.8% off)	1
022	9459309	BRACKET	9459309 BRACKET STAFFA	$38.21 MSRP: ~~40.00~~ (4.5% off)	2
023	9459305	BALL PIN IN STOCK	9459305 BALL PIN PERNO IN STOCK	$2.84	4
024	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	4
025	79004387	SHOCK ABSORBER	79004387 SHOCK ABSORBER MARTINETTO (ARGENTO)	$139.99	2
025	79004387	SHOCK ABSORBER	79004387 SHOCK ABSORBER MARTINETTO (NERO)	$139.99	2
026	9459003	CABLE	9459003 CABLE CAVO EMERGENZA	-	1	Enquire
027	9459001	CABLE	9459001 CABLE CAVO APERTURA COFANO	$22.75	1
028	9459223	PLATE	9459223 PLATE PIASTRINA	$14.16 MSRP: ~~14.75~~ (4% off)	1
029	9459200	HANDLE	9459200 HANDLE MANIGLIA APERTURA COFANO	$518.63	1
030	8700544	SCREW	8700544 SCREW VITE	$1.68	2
031	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	4
032	8400627	WASHER	8400627 WASHER RONDELLA	$21.97 MSRP: ~~22.95~~ (4.3% off)	4
033	9459321	RIGHT SUPPORT	9459321 RIGHT SUPPORT SUPPORTO DX	$50.57 MSRP: ~~53.00~~ (4.6% off)	1
033	9459322	LEFT SUPPORT	9459322 LEFT SUPPORT SUPPORTO SX	$50.57 MSRP: ~~53.00~~ (4.6% off)	1
034	8700674	SCREW	8700674 SCREW VITE	-	4	Enquire
035	79001335	BRUSH	79001335 BRUSH SPAZZOLA	$42.14	2
036	79001734	RIGHT HINGE	79001734 RIGHT HINGE CERNIERA DX	$319.89	1
036	79001733	LEFT HINGE	79001733 LEFT HINGE CERNIERASX	$274.21 MSRP: ~~287.00~~ (4.5% off)	1
037	9459323	PIN	9459323 PIN PERNO	$54.44	2
038	79001336	BRUSH	79001336 BRUSH SPAZZOLA	$42.14	2
039	79001337	RIGHT PLATE	79001337 RIGHT PLATE PIASTRA DX	$53.49	1
