Front Body Elements of Lamborghini Lamborghini Diablo SV (1999)

View All

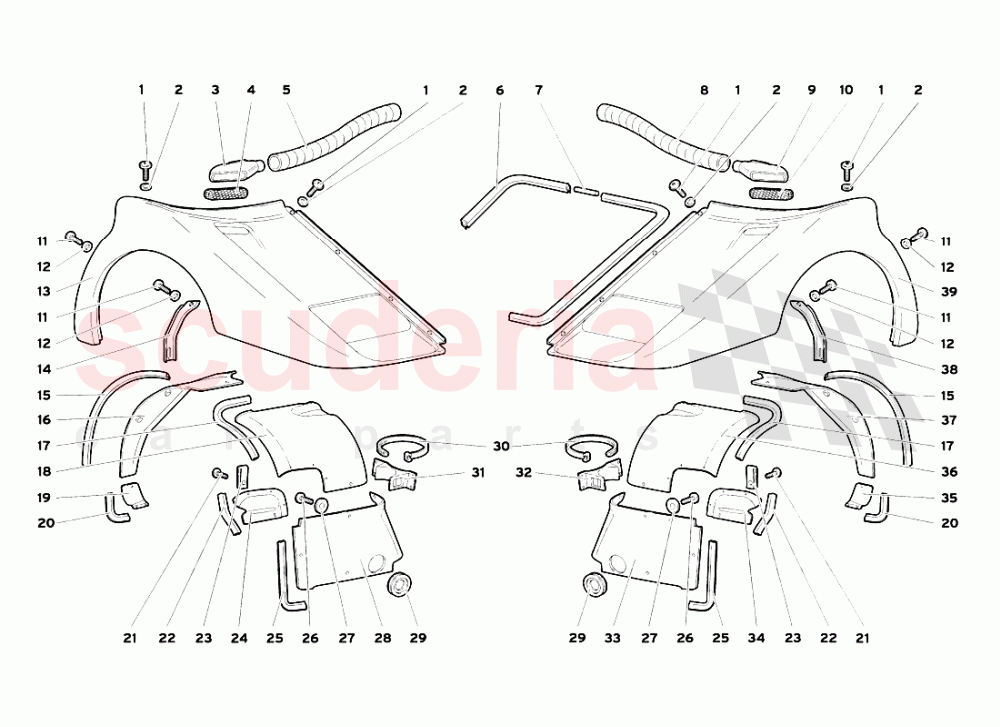

Lamborghini Diablo SV (1999) - Front Body Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700692	SCREW	8700692 SCREW VITE	-	14	Enquire
002	8400629	WASHER	8400629 WASHER RONDELLA	-	14	Enquire
003	9453002	RIGHT AIR INTAKE	9453002 RIGHT AIR INTAKE PRESA D'ARIA DX	-	1	Enquire
004	9430122	RIGHT NET	9430122 RIGHT NET RETE DX	-	1	Enquire
005	9453129	RIGHT PIPE	9453129 RIGHT PIPE TUBO DX	-	1	Enquire
006	9490111	GASKET	9490111 GASKET GUARNIZIONE	-	1	Enquire
007	9490112	UNION	9490112 UNION ELEMENTO COLLEGAMENTO	-	1	Enquire
008	9453130	LEFT PIPE	9453130 LEFT PIPE TUBOSX	-	1	Enquire
009	9453003	LEFT AIR INTAKE	9453003 LEFT AIR INTAKE PRESA D'ARIA SX	-	1	Enquire
010	9430123	LEFT NET	9430123 LEFT NET RETE SX	-	1	Enquire
011	8100601	SCREW	8100601 SCREW VITE	-	10	Enquire
012	8400606	WASHER	8400606 WASHER RONDELLA	-	10	Enquire
013	66002236	R. FR.MUDGU./FEN.	66002236 R. FR.MUDGU./FEN. (Valid for USA - July 1999) PARAFANGO ANT. DX	-	1	Enquire
013	66002230	R. FR.MUDGU./FEN.	66002230 R. FR.MUDGU./FEN. PARAFANGO ANT. DX	-	1	Enquire
013	66002236	R. FR.MUDGU./FEN.	66002236 R. FR.MUDGU./FEN. (Valid for CANADA - July 1999) PARAFANGO ANT. DX	-	1	Enquire
014	9410109	RIGHT BRACKET	9410109 RIGHT BRACKET STAFFA DX	-	1	Enquire
015	9411410	GASKET	9411410 GASKET GUARNIZIONE	-	2	Enquire
016	9411402	RIGHT FR. WHEELBOX	9411402 RIGHT FR. WHEELBOX PASSARUOTA	-	1	Enquire
017	68003623	GASKET	68003623 GASKET GUARNIZIONE	-	2	Enquire
018	68002279	FR. WHEELBOX	68002279 FR. WHEELBOX PASSARUOTA ANT. DX SUP.	-	1	Enquire
019	9411425	RIGHT PANEL	9411425 RIGHT PANEL PANNELLO DX	-	1	Enquire
020	9411427	GASKET	9411427 GASKET GUARNIZIONE	-	2	Enquire
021	WHT003066	SCREW	WHT003066 SCREW	-	6	Enquire
022	68003622	GASKET	68003622 GASKET GUARNIZIONE	-	2	Enquire
023	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	-	8	Enquire
024	68002281	RIGHT LID INSPECTION	68002281 RIGHT LID INSPECTION SPORTELLO ISPEZIONE DX	-	1	Enquire
025	9411408	GASKET	9411408 GASKET GUARNIZIONE	-	2	Enquire
026	WHT003066	SCREW	WHT003066 SCREW	-	16	Enquire
027	N91115501	WASHER	N91115501 WASHER RONDELLA	-	18	Enquire
028	68002284	RIGHT FR. WHEELBOX	68002284 RIGHT FR. WHEELBOX PASSARUOTA ANT. DX	-	1	Enquire
029	9411418	GASKET	9411418 GASKET GUARNIZIONE	-	2	Enquire
030	8830306	CLAMP	8830306 CLAMP FASCETTA	-	2	Enquire
031	410805890	RIGHT SUPPORT	410805890 RIGHT SUPPORT CAVALLOTTO DX	-	1	Enquire
032	9411422	LEFT RETAINER	9411422 LEFT RETAINER CAVALLOTTO SX	-	1	Enquire
033	68002285	LEFT FR. WHEELBOX	68002285 LEFT FR. WHEELBOX PASSARUOTA ANT. SX	-	1	Enquire
034	68002282	LEFT LID INSPECTION	68002282 LEFT LID INSPECTION SPORTELLO ISPEZIONE SX	-	1	Enquire
035	9411426	LEFT PANEL	9411426 LEFT PANEL PANNELLO SX	-	1	Enquire
036	68002280	FR. WHEELBOX	68002280 FR. WHEELBOX PASSARUOTA ANT. SX SUP.	-	1	Enquire
037	9411405	LEFT FR. WHEELBOX	9411405 LEFT FR. WHEELBOX PASSARUOTA	-	1	Enquire
038	9410110	LEFT BRACKET	9410110 LEFT BRACKET STAFFA SX	-	1	Enquire
039	66002238	LEFT FR. MUD GUARD	66002238 LEFT FR. MUD GUARD (Valid for USA - July 1999) PARFANGO ANT. SX	-	1	Enquire
039	66002232	LEFT FR. MUD GUARD	66002232 LEFT FR. MUD GUARD PARFANGO ANT. SX	-	1	Enquire
039	66002238	LEFT FR. MUD GUARD	66002238 LEFT FR. MUD GUARD (Valid for CANADA - July 1999) PARFANGO ANT. SX	-	1	Enquire
