Rear Hood and Wing of Lamborghini Lamborghini Diablo SV (1999)

View All

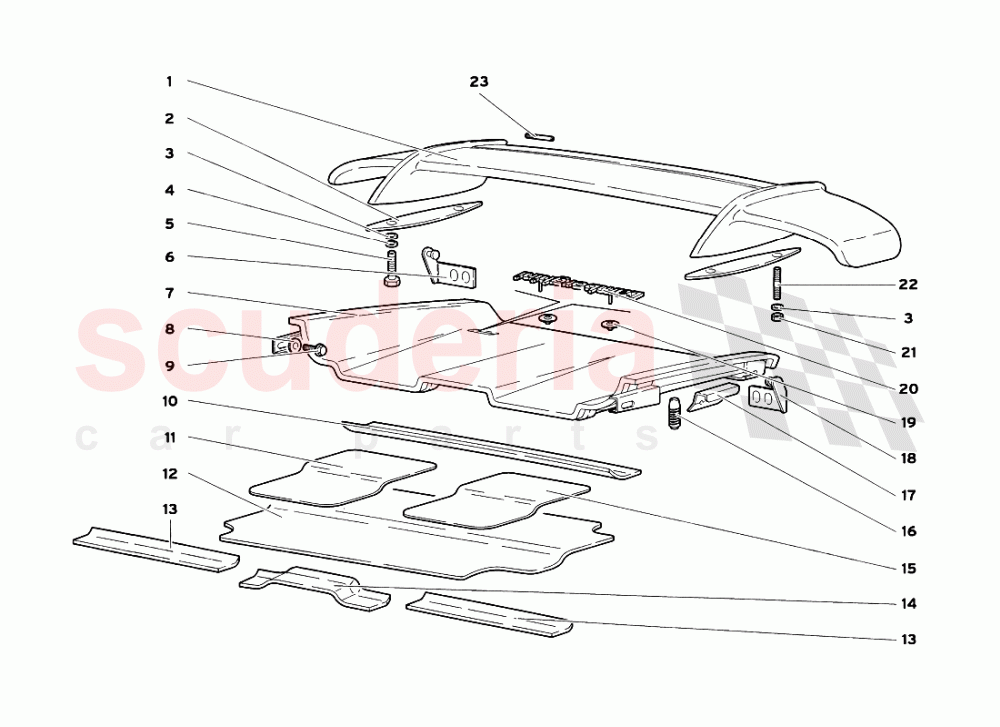

Lamborghini Diablo SV (1999) - Rear Hood and Wing

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	97001699	COLOURED STABILISER	97001699 COLOURED STABILISER (OPTIONAL) ALETTONE IN TINTA	-	1	Enquire
001	97004614	COLOURED STABILISER	97004614 COLOURED STABILISER (Valid for JAPAN - July 1999) (OPTIONAL) ALETTONE IN TINTA	-	1	Enquire
001	97001694	BLACK STABILISER	97001694 BLACK STABILISER (OPTIONAL) ALETTONE NERO	-	1	Enquire
001	97004615	BLACK STABILISER	97004615 BLACK STABILISER (Valid for JAPAN - July 1999) (OPTIONAL) ALETTONE NERO	-	1	Enquire
002	97001880	GASKET	97001880 GASKET GUARNIZIONE	-	2	Enquire
003	8400606	WASHER	8400606 WASHER RONDELLA	-	4	Enquire
004	8410601	WASHER	8410601 WASHER RONDELLA	-	2	Enquire
005	8100621	SCREW	8100621 SCREW VITE	-	2	Enquire
006	4132637	RIGHT BRACKET	4132637 RIGHT BRACKET STAFFA DX	-	1	Enquire
007	9429001	REAR BONNET	9429001 REAR BONNET COFANO POST.	-	1	Enquire
008	WHT003093	Washer	WHT003093 Washer RONDELLA	-	2	Enquire
009	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
010	9429111	CHANNEL	9429111 CHANNEL PROFILATO	-	1	Enquire
011	9455242	RIGHT LINING	9455242 RIGHT LINING ISOLAMENTODX	-	1	Enquire
012	9455244	LINING	9455244 LINING ISOLAMENTO	-	1	Enquire
013	9429109	CHANNEL	9429109 CHANNEL PROFILATO	-	2	Enquire
014	9429108	CHANNEL	9429108 CHANNEL PROFILATO	-	1	Enquire
015	9455243	LEFT LINING	9455243 LEFT LINING ISOLAMENTO SX	-	1	Enquire
016	9460214	RUBBER BUMPER	9460214 RUBBER BUMPER TAMPONE COMMA	-	2	Enquire
017	9429112	CHANNEL	9429112 CHANNEL PROFILATO	-	2	Enquire
018	4132636	LEFT BRACKET	4132636 LEFT BRACKET STAFFA SX	-	1	Enquire
019	8410305	CLIP	8410305 CLIP MOLLETTA	-	2	Enquire
021	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
022	8300663	STUD	8300663 STUD PRIGIONIERO	-	2	Enquire
023	9490017	PIN	9490017 PIN PERNO FILETTATO	-	4	Enquire
