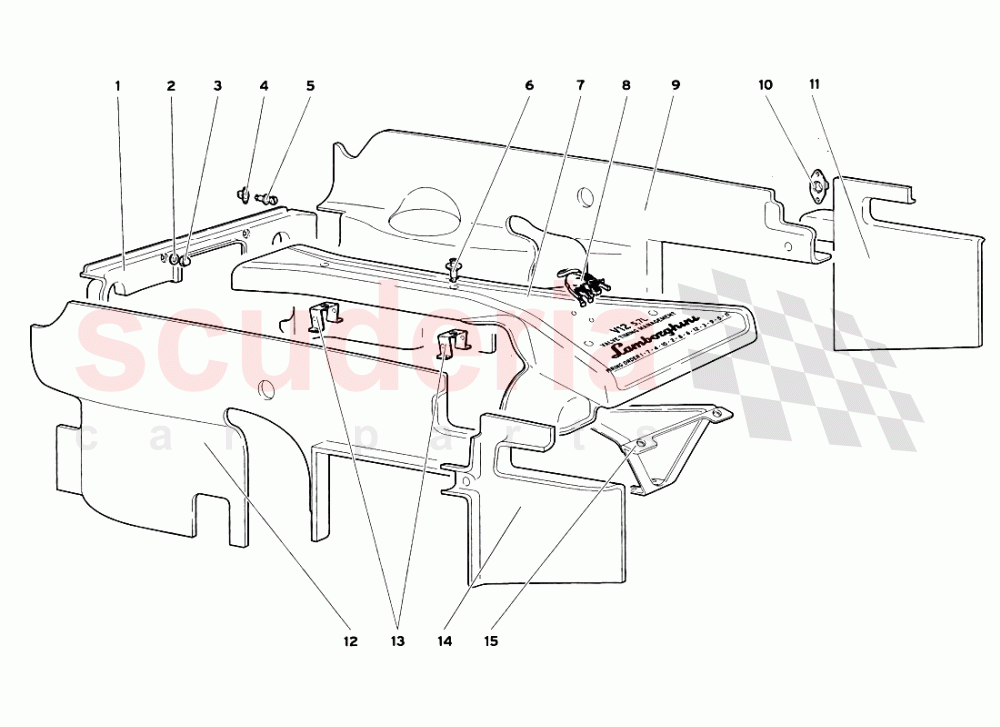

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9411644	SHIELD	9411644 SHIELD PROTEZIONE	$641.44	1
002	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
003	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	2
004	9411618	CLIP	9411618 CLIP FERMAGLIO	$9.20 MSRP: ~~9.30~~ (1.1% off)	1
005	9411617	SCREW	9411617 SCREW VITE	$22.82 MSRP: ~~23.80~~ (4.1% off)	1
006	20004117	SCREW	20004117 SCREW VITE	$57.88	6
007	20001838	PANEL	20001838 PANEL PANNELLO	$32.39	1
008	9966005	ORNAMENT (BULL)	9966005 ORNAMENT (BULL) FREGIO (TORO)	$295.29	1
009	9411645	RIGHT PANEL	9411645 RIGHT PANEL PANNELLO DX	$919.36	1
010	9411615	CLIP	9411615 CLIP FERMAGLIO	$33.93	2
011	9411647	RIGHT REAR PANEL	9411647 RIGHT REAR PANEL PANNELLO POST. DX	$349.88	1
012	9411646	LEFT PANEL	9411646 LEFT PANEL PANNELLO SX	$838.71	1
013	1637846	BRACKET	1637846 BRACKET STAFFA	$73.45	2
014	9411648	LEFT REAR PANEL	9411648 LEFT REAR PANEL PANNELLO POST. SX	$349.88	1
015	1637847	SUPPORT - SUPPORTO	1637847 SUPPORT - SUPPORTO O	$128.41	1
