Lamborghini Diablo SV (1999) - Doors 2

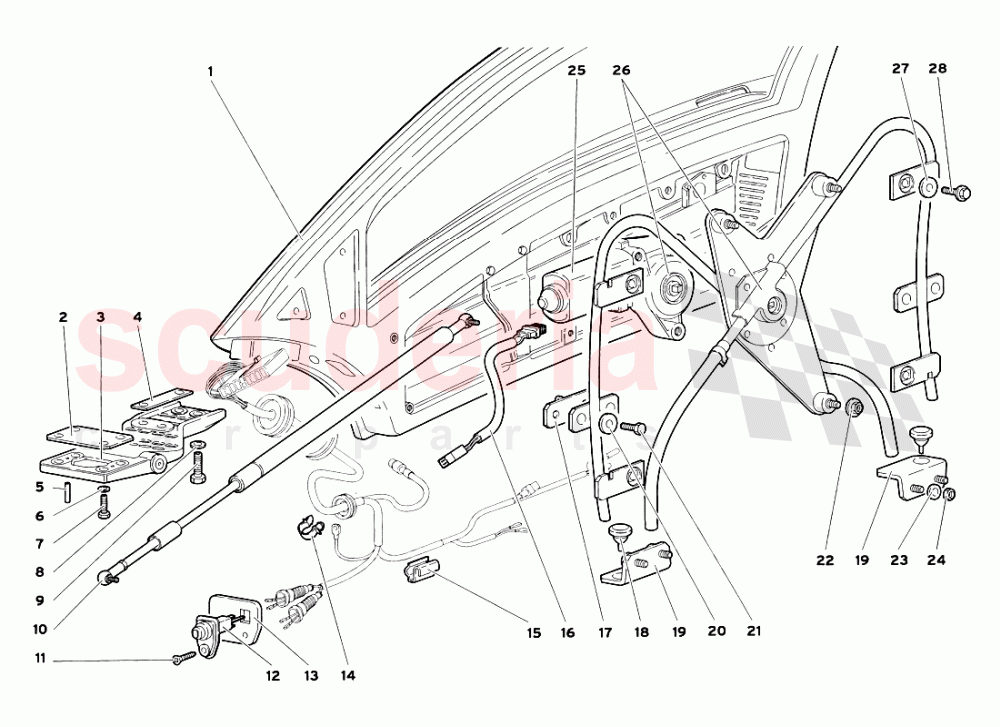

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421056	LEFT DOOR	9421056 LEFT DOOR PORTA SX	$8,666.23	1
001	9421055	RIGHT DOOR	9421055 RIGHT DOOR PORTA DX	$8,666.23	1
002	4132052	SHIM	4132052 SHIM SPESSORE1 MM	-	1	Enquire
002	4132051	SHIM	4132051 SHIM SPESSORE 0,8 MM	-	1	Enquire
002	4132053	SHIM	4132053 SHIM SPESSORE 1,2 MM	-	1	Enquire
002	4132054	SHIM	4132054 SHIM SPESSORE 1,5 MM	-	1	Enquire
003	9421030	LH HINGE	9421030 LH HINGE CERNIERA SX	$1,277.93 MSRP: ~~1,335.00~~ (4.3% off)	1
003	410831402	RH HINGE	410831402 RH HINGE CERNIERA DX	$1,153.22	1
004	9421380	SHIM	9421380 SHIM SPESSORE 1 MM	-	1	Enquire
004	9421381	SHIM	9421381 SHIM SPESSORE 1,5 MM	$28.24 MSRP: ~~29.45~~ (4.1% off)	1
005	8900401	PIN IN STOCK	8900401 PIN SA ELASTICA IN STOCK	$0.25 MSRP: ~~7.35~~ (96.6% off)	4
006	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	8
007	8100821	SCREW	8100821 SCREW VITE	$1.26	8
008	8411015	WASHER	8411015 WASHER RONDELLA	$11.31 MSRP: ~~11.70~~ (3.3% off)	8
009	8101008	SCREW	8101008 SCREW VITE	$15.99	8
010	9421031	DOOR STRUT	9421031 DOOR STRUT MARTINETTO	$129.11	2
011	WHT003304	SCREW IN STOCK	WHT003304 SCREW VITE IN STOCK	$0.61 MSRP: ~~7.28~~ (91.6% off)	2
012	5934450	SWITCH	5934450 SWITCH INTERRUTTORE	$21.47 MSRP: ~~21.75~~ (1.3% off)	2
013	5934447	PLATE	5934447 PLATE PIASTRINA	$74.44 MSRP: ~~77.80~~ (4.3% off)	2
014	8830411	STRAP IN STOCK	8830411 STRAP MOLLETTA IN STOCK	$1.29 MSRP: ~~7.09~~ (81.8% off)	2
015	8830302	CLAMP	8830302 CLAMP FAS C ETTA	$4.35	10
016	9421606	ELECT CABLE	9421606 ELECT CABLE CABLAGGIO	$25.20 MSRP: ~~26.25~~ (4% off)	2
017	9421607	BRACKET	9421607 BRACKET STAFFA	$59.27	4
018	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI COMMA	$22.52	4
019	9421406	RIGHT DOOR PLATE	9421406 RIGHT DOOR PLATE PIASTRINA PORTA DX	$48.26 MSRP: ~~50.50~~ (4.4% off)	2
019	9421407	LEFT DOOR PLATE	9421407 LEFT DOOR PLATE PIASTRINA PORTA SX	$9.55 MSRP: ~~9.70~~ (1.5% off)	2
020	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
021	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$0.67 MSRP: ~~7.31~~ (90.8% off)	8
022	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	6
023	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
024	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	8
025	9421605	LEFT ELECT MOTOR	9421605 LEFT ELECT MOTOR MOTORING SX	$488.85	1
025	9421604	RIGHT ELECT MOTOR	9421604 RIGHT ELECT MOTOR MOTORING DX	$488.85	1
026	9421600	RIGHT KIT WIND. REGUL	9421600 RIGHT KIT WIND. REGUL KIT ALZACRISTALLO DX	$697.69	1
026	9421601	LEFT KIT WINDOW REGUL.	9421601 LEFT KIT WINDOW REGUL. KIT ALZACRISTALLO SX	$2,308.72	1
027	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	8
028	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$1.89	8
