Lamborghini Diablo SV (1999) - Engine Hood (for Cars Without Fast Cooling)

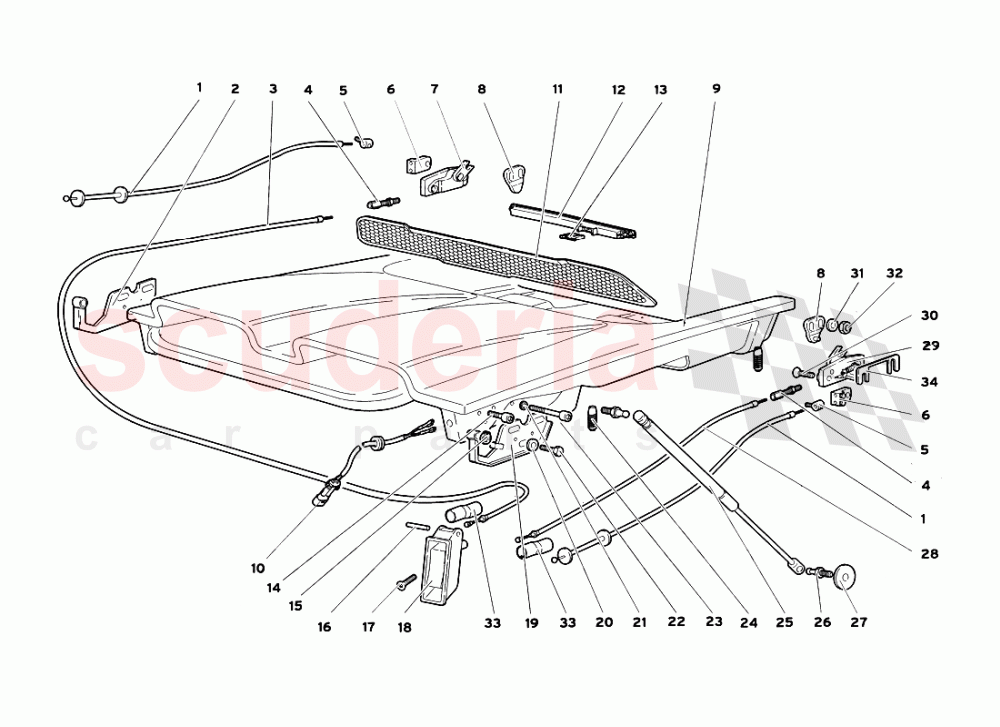

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9460003	CABLE	9460003 CABLE (Valid for cars without fast closing hood) CAVO EMERGENZA	-	2	Enquire
002	9460322	RIGHT HINGE	9460322 RIGHT HINGE (Valid for cars without fast closing hood) CERNIERA DX	-	1	Enquire
003	9460006	RIGHT CABLE	9460006 RIGHT CABLE (Valid for cars without fast closing hood) CAVO DX	-	1	Enquire
004	9460213	ADJ/SCREW	9460213 ADJ/SCREW (Valid for cars without fast closing hood) VITE REGOLAZIONE	-	2	Enquire
005	9460210	CLAMP	9460210 CLAMP (Valid for cars without fast closing hood) MORSETTO	-	2	Enquire
006	9460212	DOUBLE CLAMP	9460212 DOUBLE CLAMP use 410814333	-	2	Enquire
007	9460200	RIGHT LOCK	9460200 RIGHT LOCK (Valid for cars without fast closing hood) SERRATURA DX	-	1	Enquire
008	9460201	LOCK STRIKER	9460201 LOCK STRIKER (Valid for cars without fast closing hood) RISCONTRO	-	2	Enquire
009	92003867	ENGINE BONNET	92003867 ENGINE BONNET (Valid for cars without fast closing hood) COFANO MOTORE	-	1	Enquire
010	6135191	ELECT CABLET-	6135191 ELECT CABLET- (Valid for cars without fast closing hood) CABLAGGIO	-	1	Enquire
011	9430172	NET	9430172 NET (Valid for cars without fast closing hood) RETE	-	1	Enquire
012	410945249A	High Mount Brake Light	410945249A High Mount Brake Light use part number: 0R1470010	-	1	Enquire
012	410945249A	High Mount Brake Light	410945249A High Mount Brake Light	-	1	Enquire
013	6132280	CONNECTOR	6132280 CONNECTOR (Valid for cars without fast closing hood) CONNESSIONE	-	1	Enquire
014	8700547	SCREW	8700547 SCREW (Valid for cars without fast closing hood) VITE	-	2	Enquire
015	8580801	RETAINER RING	8580801 RETAINER RING (Valid for cars without fast closing hood) ANELLO RITEGNO	-	2	Enquire
016	8850304	PIN - SPINA	8850304 PIN - SPINA (Valid for cars without fast closing hood) SA	-	1	Enquire
017	8700539	SCREW	8700539 SCREW (Valid for cars without fast closing hood) VITE	-	1	Enquire
018	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY	-	1	Enquire
019	9460323	LEFT HINGE	9460323 LEFT HINGE (Valid for cars without fast closing hood) CERNIERA SX	-	1	Enquire
020	8400656	WASHER	8400656 WASHER (Valid for cars without fast closing hood) RONDELLA	-	6	Enquire
021	8400510	WASHER	8400510 WASHER (Valid for cars without fast closing hood) RONDELLA	-	2	Enquire
022	8100656	SCREW	8100656 SCREW (Valid for cars without fast closing hood) VITE	-	6	Enquire
023	8700549	SCREW	8700549 SCREW (Valid for cars without fast closing hood) VITE	-	2	Enquire
024	9460214	RUBBER BUMPER	9460214 RUBBER BUMPER (Valid for cars without fast closing hood) PARACOLPI COMMA	-	4	Enquire
025	92004388	ENGINE COVER STRUT	92004388 ENGINE COVER STRUT (Valid for cars without fast closing hood) MARTINETTO	-	2	Enquire
026	9459305	BALL PIN	9459305 BALL PIN (Valid for cars without fast closing hood) PERNO GIUNTO SFERICO	-	4	Enquire
027	WHT001942	WASHER	WHT001942 WASHER (Valid for cars without fast closing hood) RONDELLA	-	2	Enquire
028	9460007	LEFT CABLE	9460007 LEFT CABLE (Valid for cars without fast closing hood) CAVO SX	-	1	Enquire
029	9460202	LEFT LOCK	9460202 LEFT LOCK (Valid for cars without fast closing hood) SERRATURA SX	-	1	Enquire
030	8700613	SCREW	8700613 SCREW (Valid for cars without fast closing hood) VITE	-	4	Enquire
031	8400606	WASHER	8400606 WASHER (Valid for cars without fast closing hood) RONDELLA	-	4	Enquire
032	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING (Valid for cars without fast closing hood) DADO	-	4	Enquire
033	9421385	LINER	9421385 LINER (Valid for cars without fast closing hood) GUAINA	-	2	Enquire
034	9460215	SPACER	9460215 SPACER (Valid for cars without fast closing hood) DISTANZIALE	-	1	Enquire
034	9460216	SPACER	9460216 SPACER (Valid for cars without fast closing hood) DISTANZIALE	-	1	Enquire
