Lamborghini Diablo SV (1999) - Doors 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

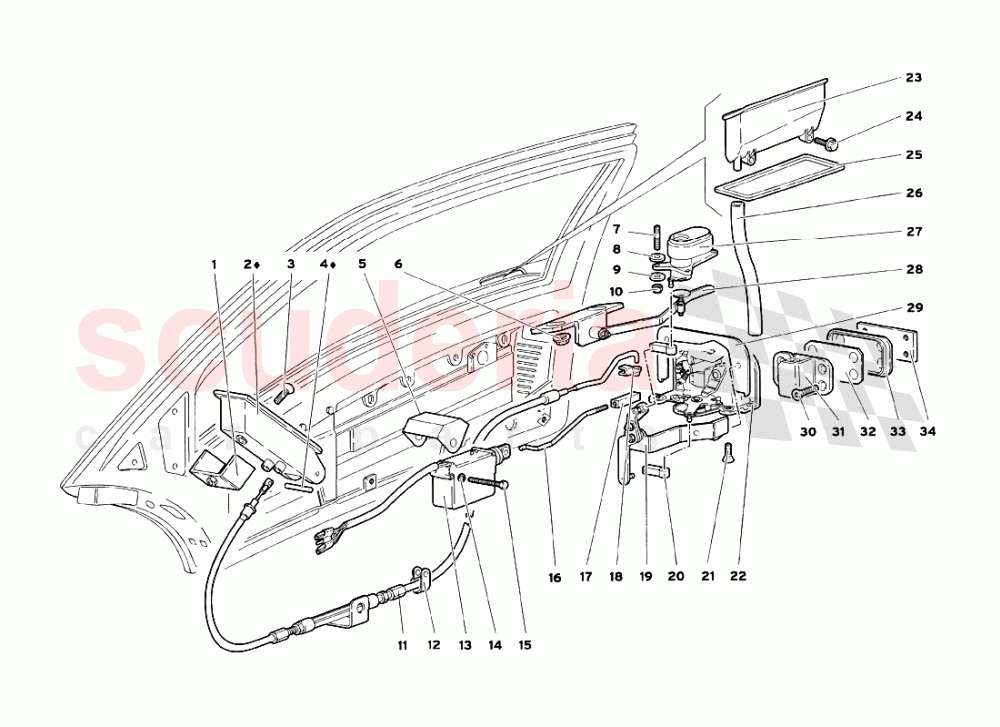

Doors 1 of Lamborghini Lamborghini Diablo SV (1999) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9421274
BRACKET
CAVALLOTTO 		$71.43 2
002 410823537
DOOR OPENING INTERIOR HANDLE ASSEMBLY
IN STOCK 		$1,305.01 2
002 72005334
HANDLE
(Valid for cars with aluminium handles) MANIGLIA 		- 2 Enquire
003 8700539
SCREW
VITE 		- 2 Enquire
004 8850304
PIN - SPINA
PERNO 		$1.99 2
004 8900305
PIN - SPINA
(Valid for cars with aluminium handles) PERNO 		$0.27 (96.3% off) 2
005 9921113
LEFT SHIELD
PROTEZIONE SX 		$15.63 (1.1% off) 1
005 9921112
RIGHT SHIELD
PROTEZIONE DX 		$85.50 1
006 N01508213
HEXAGON COLLAR NUT
DADO
IN STOCK 		$0.21 4
007 8300403
STUD
PRIGIONIERO (L=21 MM) 		$26.37 (4.3% off) 4
007 9921221
STUD
PRIGIONIERO(L=18MM) 		$4.29 (2.5% off) 2
008 8400401
WASHER
RONDELLA (DISTANZIALE) 		$0.13 1
009 8400401
WASHER
RONDELLA 		$0.13 6
010 WHT002959
CLAMPING NUT
DADO
IN STOCK 		$0.82 (88.7% off) 6
011 9421052
RIGHT CABLE
CAVO DX 		$292.19 (4.5% off) 1
011 9421051
LEFT CABLE
CAVO SX 		$135.23 1
012 8830907
STRAP
FASCETTA
IN STOCK 		$0.49 (93.3% off) 6
013 R1320008
RHS door actuator 		$468.99 1
013 R1320007
LHS door actuator 		$988.63 1
014 8400401
WASHER
RONDELLA 		$0.13 4
015 8100404
SCREW
VITE 		$0.64 4
016 9921211
LEFT TIE ROD
TIRANTE SX 		$22.03 1
016 9921204
RIGHT TIE ROD
TIRANTE DX 		$22.03 1
017 7021016
PAWL
NOTTOLINO 		- 2 Enquire
018 9421251
CLIP
MOLLETTA Dl AGGANCIO 		- 2 Enquire
019 9921226
LEFT IDLE LEVER
RINVIO A LEVA SX 		$243.81 (1.1% off) 1
019 9921225
RIGHT IDLE LEVER
RINVIO A LEVA DX 		$358.24 1
020 9421214
COUPLING
TESTINA 		- 4 Enquire
021 8700610
SCREW
VITE
IN STOCK 		$0.67 (90.8% off) 8
022 410837016
RIGHT LOCK
SERRATURA SX 		$637.08 1
022 410837015
LEFT LOCK
SERRATURA DX 		$637.08 1
023 9421200
RIGHT HANDLE
MANIGLIA DX 		$343.79 1
023 9421201
LEFT HANDLE
MANIGLIA SX 		$360.44 1
024 N10718801
HEX COLLARED BOLT
VITE 		$0.95 1
025 9421712
RIGHT GASKET
GUARNIZIONE DX 		$5.47 (1.4% off) 1
025 9421713
LEFT GASKET
GUARNIZIONE SX 		$13.22 1
026 9421245
PIPE
TUBO 		$17.89 2
027 72005036
LH & RH DOOR BUTTONS 		$502.27 1
028 9921224
LEFT IDLE LEVER
RINVIO A LEVA SX 		$243.81 (1.1% off) 1
028 9921223
RIGHT IDLE LEVER
RINVIO A LEVA DX 		$243.81 (1.1% off) 1
029 9421273
RIGHT GASKET
GUARNIZIONE DX 		- 1 Enquire
029 9421272
LEFT GASKET
GUARNIZIONESX 		- 1 Enquire
030 8700610
SCREW
VITE
IN STOCK 		$0.67 (90.8% off) 8
031 410831407A
Hinge Half Left Hand
RISCONTRO SX
IN STOCK 		$489.25 1
031 410831408A
Hinge Half Right hand
RISCONTRO DX
IN STOCK 		$862.90 1
032 410837963
SPACER
DISTANZIALE
IN STOCK 		$16.19 4
032 410837964
SPACER
DISTANZIALE 		$15.73 4
033 410837899
ORNAMENT
IN STOCK 		$15.91 2
034 7021253
PLATE
PIASTRA 		$714.63 2
