Crankase and Lower Mounting of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

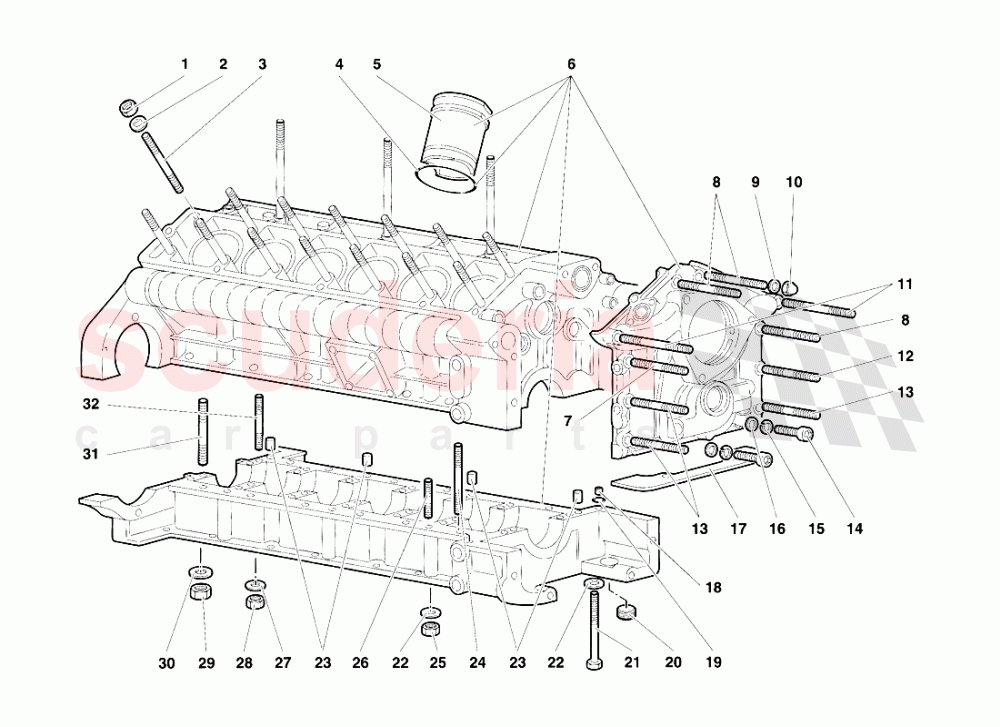

Lamborghini Diablo SE30 (1993-1995) - Crankase and Lower Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120924	CAP NUT	1120924 CAP NUT DADO	$36.47 MSRP: ~~38.15~~ (4.4% off)	28
002	8401230	WASHER IN STOCK	8401230 WASHER RONDELLA IN STOCK	$58.12	28
003	1824761	STUD BOLT	1824761 STUD BOLT PRIGIONIERO	$102.62	28
004	WHT003085	SEAL RING	WHT003085 SEAL RING ANELLO TENUTA	$4.37 MSRP: ~~7.06~~ (38.1% off)	12
005	1829442	CYLINDER	1829442 CYLINDER CILINDRO	$472.72 MSRP: ~~479.00~~ (1.3% off)	12
006	403400100	CRANKCASE	403400100 CRANKCASE BASAMENTO MOTORE LAVORATO	$21,391.06	1
007	N0444416	STUD BOLT IN STOCK	N0444416 STUD BOLT PRIGIONIERO L=40mm IN STOCK	$3.45 MSRP: ~~7.04~~ (51% off)	1
008	8300904	STUD	8300904 STUD PRIGIONIERO L=45mm	$28.41 MSRP: ~~29.70~~ (4.3% off)	3
009	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	8
010	8200816	NUT	8200816 NUT DADO	$5.14	10
011	8300905	STUD	8300905 STUD PRIGIONIERO L=55mm	$18.60 MSRP: ~~19.45~~ (4.4% off)	2
012	8300880	STUD	8300880 STUD PRIGIONIERO	$24.62	2
013	8300902	STUD BOLT	8300902 STUD BOLT PRIGIONIERO L=35mm	$9.26 MSRP: ~~9.55~~ (3% off)	3
014	8700822	SCREW	8700822 SCREW VITE	$0.76 MSRP: ~~7.29~~ (89.6% off)	2
015	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	2
016	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
017	1232219	GASKET	1232219 GASKET GUARNIZIONE	$4.71 MSRP: ~~4.85~~ (2.9% off)	1
018	1828787	DOWEL	1828787 DOWEL GRANO	$14.49	1
019	8600902	SEAL	8600902 SEAL ANELLO TENUTA	$0.16	1
020	8932007	PLUG	8932007 PLUG TAPPO	$88.59	1
021	8100871	SCREW	8100871 SCREW VITE L=95mm	$4.16 MSRP: ~~4.30~~ (3.3% off)	1
022	8410815	WASHER	8410815 WASHER RONDELLA	$0.21 MSRP: ~~7.37~~ (97.2% off)	14
023	8851105	DOWEL	8851105 DOWEL GRANO	-	4	Enquire
024	8300884	STUD	8300884 STUD PRIGIONIERO L=95mm	$33.37 MSRP: ~~34.85~~ (4.2% off)	1
025	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	13
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO L=25mm	$22.30	10
027	8400820	WASHER	8400820 WASHER RONDELLA	$17.74	14
028	8200805	NUT	8200805 NUT DADO	$0.13	14
029	8201221	NUT	8201221 NUT DADO	$3.24	14
030	8401227	WASHER	8401227 WASHER RONDELLA	$16.67	14
031	8301238	STUD BOLT	8301238 STUD BOLT PRIGIONIERO L=1 10mm	$16.80	14
032	8300886	STUD	8300886 STUD PRIGIONIERO L=105mm	$44.50	14
