Lamborghini Diablo SE30 (1993-1995) - Accessories for Right Cylinder Head

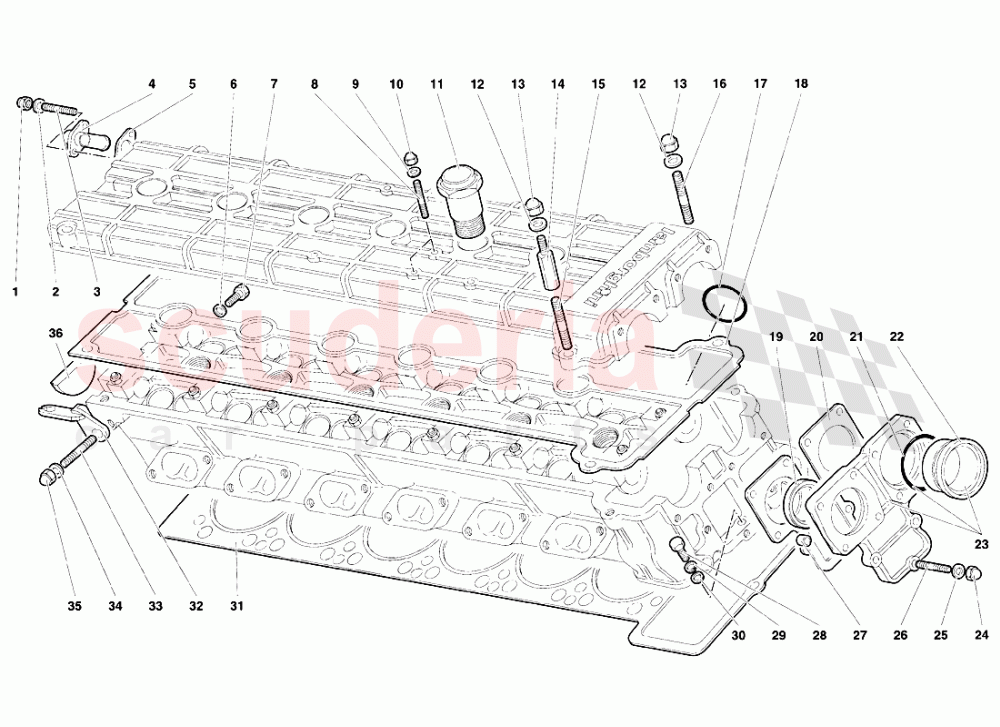

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	2
002	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	2
003	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	2
004	1135291	VENT PIPE	1135291 VENT PIPE TUBO Dl SFIATO	$81.49	1
005	1128365	GASKET	1128365 GASKET GUARNIZIONE	$5.90	1
006	8400802	WASHER	8400802 WASHER RONDELLA	$1.50 MSRP: ~~7.27~~ (79.4% off)	1
007	8100839	SCREW	8100839 SCREW VITE	$0.46 MSRP: ~~7.31~~ (93.7% off)	1
008	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	2
009	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
010	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	2
011	1134281	UNION	1134281 UNION BOCCHETTONE	$204.08 MSRP: ~~206.50~~ (1.2% off)	6
012	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	2
013	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	2
014	1128397	STUD	1128397 STUD COLONNETTA	$35.30	1
015	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.87 MSRP: ~~12.30~~ (3.5% off)	1
016	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$14.35 MSRP: ~~15.00~~ (4.3% off)	1
017	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$8.17 MSRP: ~~8.45~~ (3.3% off)	6
018	1120811	CAM COVER GASKET	1120811 CAM COVER GASKET	$180.52	1
019	8614211	SEAL	8614211 SEAL ANELLO TENUTA	$21.91 MSRP: ~~22.90~~ (4.3% off)	1
020	1125182	GASKET	1125182 GASKET GUARNIZIONE	$31.26	1
021	8605001	SEAL IN STOCK	8605001 SEAL ANELLO TENUTA IN STOCK	$1.13 MSRP: ~~7.28~~ (84.5% off)	1
022	1132875	BUSHING	1132875 BUSHING BOCCOLA	$287.22	1
023	1132876	COVER	1132876 COVER COPERCHIO	$701.00	1
024	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	3
025	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	3
026	8300602	STUD	8300602 STUD PRIGIONIERO	$6.70 MSRP: ~~6.95~~ (3.6% off)	3
027	8800604	BUSHING	8800604 BUSHING BOCCOLA	-	1	Enquire
028	8100807	SCREW	8100807 SCREW VITE	$0.83 MSRP: ~~7.27~~ (88.6% off)	1
029	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
030	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	1
031	11000987	GASKET	11000987 GASKET	$392.28	1
032	1130730	BRACKET	1130730 BRACKET FERMAGUAINA	$135.23	1
033	8300844	STUD	8300844 STUD PRIGIONIERO	$2.02	1
034	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	1
035	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	1
036	1122528	PLUG	1122528 PLUG TAPPO	$65.21	2
