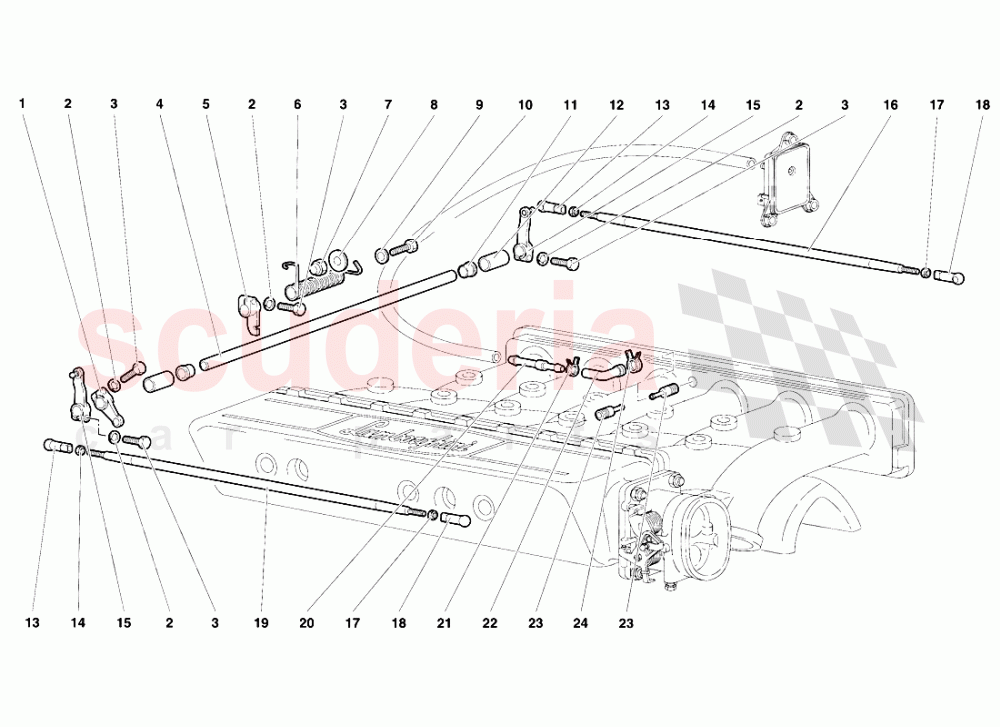

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1301093	LEVER	1301093 LEVER LEVA	-	1	Enquire
002	8410603	WASHER	8410603 WASHER RONDELLA	-	4	Enquire
003	8100621	SCREW	8100621 SCREW VITE	-	4	Enquire
004	1323135	SMALL SHAFT	1323135 SMALL SHAFT ALBERINO	-	1	Enquire
005	1331005	LEVER	1331005 LEVER LEVA	-	1	Enquire
006	1310961	SPRING	1310961 SPRING MOLLA	-	1	Enquire
007	8200605	NUT	8200605 NUT DADO	-	1	Enquire
008	8400606	WASHER	8400606 WASHER RONDELLA	-	1	Enquire
009	8410602	WASHER	8410602 WASHER RONDELLA	-	1	Enquire
010	8100625	BOLT	8100625 BOLT	-	1	Enquire
011	8801204	BUSHING	8801204 BUSHING BOCCOLA	-	2	Enquire
012	1323136	SPACER	1323136 SPACER DISTANZIALE	-	2	Enquire
013	1300804	COUPLING HEAD	1300804 COUPLING HEAD TESTA GIUNTO SFERICO	-	2	Enquire
014	8200501	NUT	8200501 NUT DADO	-	2	Enquire
015	1311580	LEVER	1311580 LEVER LEVA	-	2	Enquire
016	1328014	LEFT TIE ROD	1328014 LEFT TIE ROD TIRANTE SX	-	1	Enquire
017	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD) DADO	-	2	Enquire
018	1308539	COUPLING HEAD	1308539 COUPLING HEAD TESTA GIUNTO SFERICO	-	2	Enquire
019	1328016	RIGHT TIE ROD	1328016 RIGHT TIE ROD TIRANTE DX	-	1	Enquire
020	1329319	ADAPTER	1329319 ADAPTER RACCORDO	-	1	Enquire
021	8830122	CLAMP	8830122 CLAMP FASCETTA	-	2	Enquire
022	7L131756	CONNECTOR	7L131756 CONNECTOR RACCORDO	-	2	Enquire
023	1335015	CONNECTION	1335015 CONNECTION RACCORDO	-	2	Enquire
024	8830128	CLAMP	8830128 CLAMP FASCETTA	-	2	Enquire
