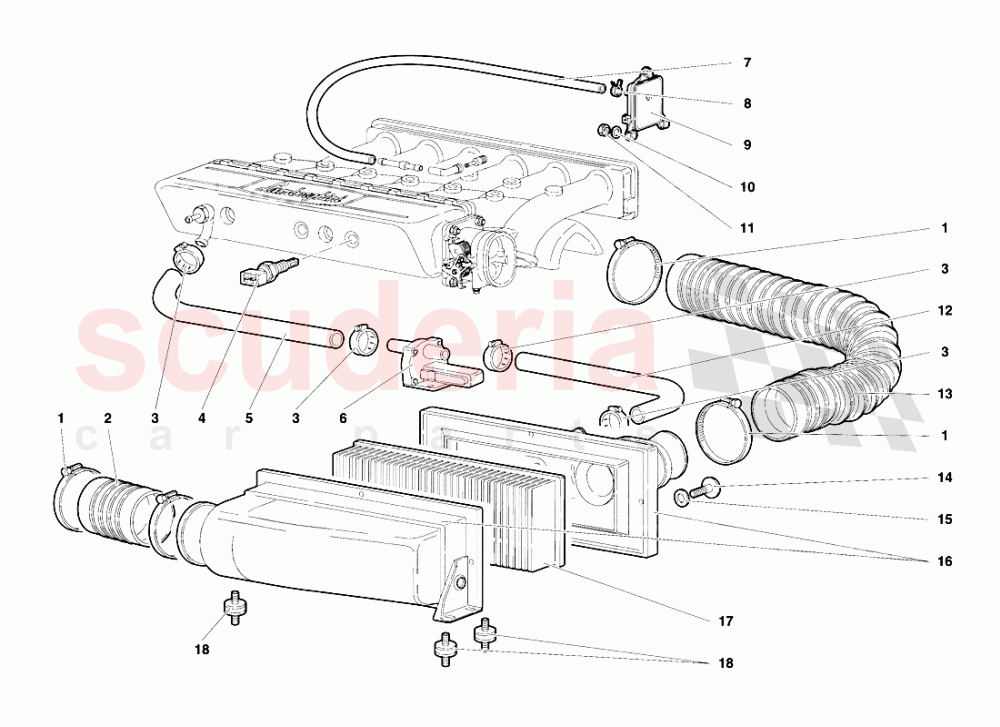

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8838701	STRAP	8838701 STRAP FASCETTA	-	8	Enquire
002	1330523	FLEX. HOSE	1330523 FLEX. HOSE TUBO	-	2	Enquire
003	8832003	CLAMP	8832003 CLAMP FASCETTA	-	8	Enquire
004	7M919529	Air Temperature Sensor	7M919529 Air Temperature Sensor	-	2	Enquire
005	1330525	RIGHT PIPE	1330525 RIGHT PIPE TUBO DX	-	1	Enquire
005	1330524	LEFT PIPE	1330524 LEFT PIPE TUBO SX	-	1	Enquire
006	2021139	VALVE	2021139 VALVE VALVOLA ARIA ADDIZIONALE	-	2	Enquire
007	1330454	PIPE	1330454 PIPE TUBO	-	2	Enquire
008	8830128	CLAMP	8830128 CLAMP FASCETTA	-	2	Enquire
009	7M919529A	PRESSURE SENSOR	7M919529A PRESSURE SENSOR	-	2	Enquire
010	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	6	Enquire
011	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	6	Enquire
012	1334382	PIPE	1334382 PIPE TUBO SX	-	1	Enquire
012	1334383	PIPE	1334383 PIPE TUBO DX	-	1	Enquire
013	1331286	RIGHT FLEX. HOSE	1331286 RIGHT FLEX. HOSE TUBO	-	2	Enquire
014	8700676	SCREW	8700676 SCREW VITE	-	8	Enquire
015	N91115501	WASHER	N91115501 WASHER RONDELLA	-	8	Enquire
016	1335520	LEFT CASE	1335520 LEFT CASE SCATOLA FILTRO ARIA SX	-	1	Enquire
016	1335516	RIGHT CASE	1335516 RIGHT CASE SCATOLA FILTRO ARIA DX	-	1	Enquire
017	7M133843	Air Filter ARRIVING SOON	7M133843 Air Filter ARRIVING SOON	-	2	Enquire
018	9411508	ELASTIC SUPPORT	9411508 ELASTIC SUPPORT SUPPORTO ELASTICO	-	6	Enquire
