Crankase of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

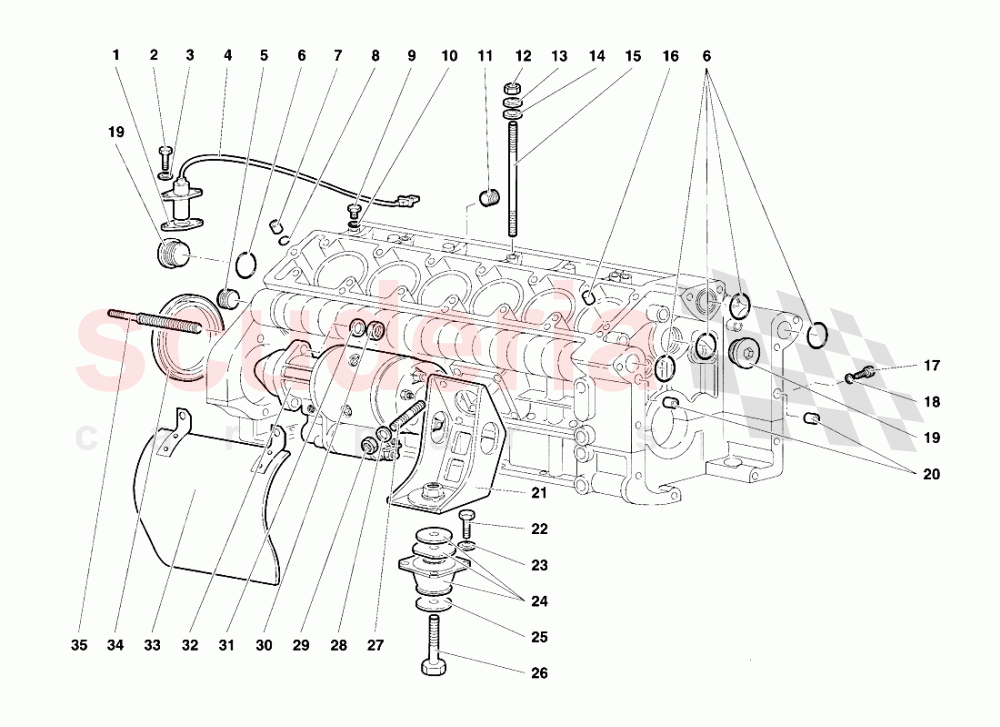

Lamborghini Diablo SE30 (1993-1995) - Crankase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1628602	SPACER	1628602 SPACER DISTANZIALE DA 0,4 mm	-	1	Enquire
001	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM DISTANZIALE DA 0,2 mm	-	1	Enquire
002	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	-	2	Enquire
003	8410502	WASHER	8410502 WASHER RONDELLA	-	2	Enquire
004	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	-	1	Enquire
005	8933503	PLUG	8933503 PLUG TAPPO	-	2	Enquire
006	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	-	5	Enquire
007	1832161	DOWEL	1832161 DOWEL GRAND	-	2	Enquire
008	WHT003059	SEAL RING	WHT003059 SEAL RING ANELLO TENUTA	-	2	Enquire
009	8101402	PLUG	8101402 PLUG TAPPO	-	1	Enquire
010	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
011	8931209	PLUG	8931209 PLUG TAPPO	-	1	Enquire
012	8200806	NUT	8200806 NUT DADO	-	3	Enquire
013	N0152785	WASHER	N0152785 WASHER RONDELLA	-	3	Enquire
014	8400801	WASHER	8400801 WASHER RONDELLA	-	3	Enquire
015	8300891	STUD	8300891 STUD PRIGIONIERO	-	3	Enquire
016	8850821	DOWEL	8850821 DOWEL GRAND	-	2	Enquire
017	8100620	Bolt	8100620 Bolt VITE	-	1	Enquire
018	WHT003041	WASHER	WHT003041 WASHER RONDELLA	-	1	Enquire
019	1830023	PLUG	1830023 PLUG TAPPO	-	2	Enquire
020	8851304	DOWEL	8851304 DOWEL GRAND	-	2	Enquire
021	1834989	SUPPORT - SUPPORTO	1834989 SUPPORT - SUPPORTO O	-	2	Enquire
022	8101031	SCREW	8101031 SCREW VITE	-	8	Enquire
023	8411014	WASHER	8411014 WASHER RONDELLA	-	8	Enquire
024	400199703A	Flexible Support	400199703A Flexible Support SUPPORTO ELASTICO	-	2	Enquire
025	N91089301	WASHER	N91089301 WASHER RONDELLA	-	2	Enquire
026	4131471	SCREW	4131471 SCREW VITE	-	2	Enquire
027	8300814	STUD BOLT	8300814 STUD BOLT PRIGIONIERO	-	8	Enquire
028	N0152785	WASHER	N0152785 WASHER RONDELLA	-	8	Enquire
029	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	8	Enquire
030	1832869	NUT	1832869 NUT DADO	-	2	Enquire
031	8411303	WASHER	8411303 WASHER RONDELLA	-	2	Enquire
032	7M911023	STARTER	7M911023 STARTER	-	1	Enquire
033	1632074	SHIELD	1632074 SHIELD PARATIA ANTICALORE	-	1	Enquire
034	7M103089	SEAL RING	7M103089 SEAL RING	-	1	Enquire
035	8301240	STUD	8301240 STUD PRIGIONIERO	-	2	Enquire
