Accessories for Left Cylinder Head of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Accessories for Left Cylinder Head

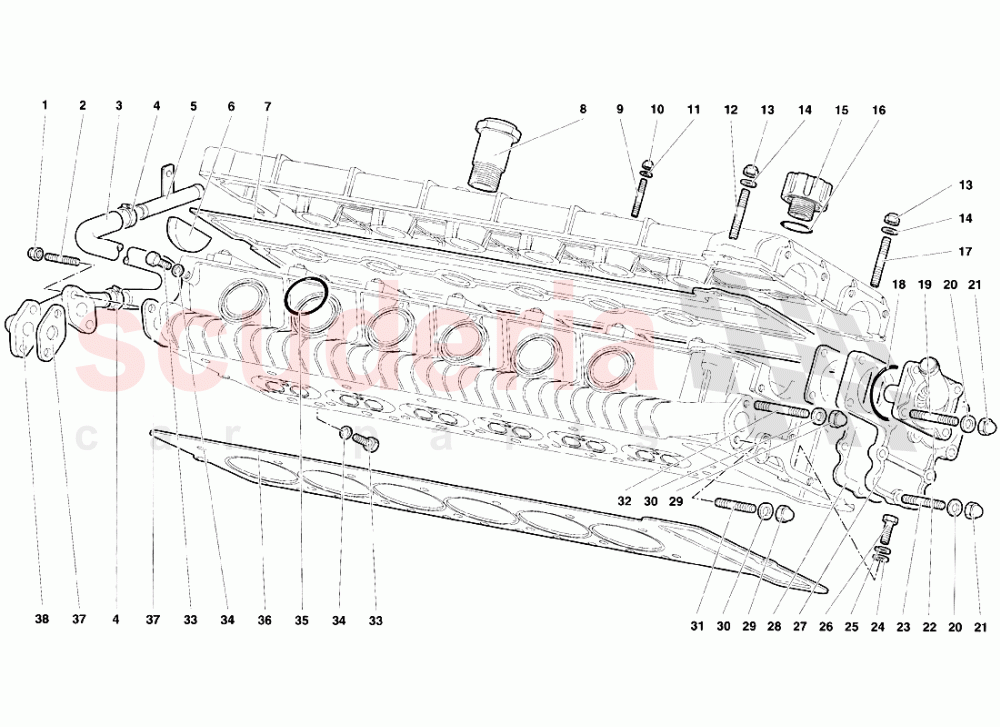

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT	8200605 NUT DADO	$3.06	4
002	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	4
003	410819370	Sleeve for Auxiliary Water Pump	410819370 Sleeve for Auxiliary Water Pump TUBO	$64.90	1
004	8832003	CLAMP	8832003 CLAMP FASCETTA	$44.10	2
005	1730064	CONNECTION	1730064 CONNECTION RACCORDO	$23.61 MSRP: ~~23.90~~ (1.2% off)	1
006	1122528	PLUG	1122528 PLUG TAPPO	$65.21	2
007	1120813	GASKET	1120813 GASKET GUARNIZIONE	$83.01	1
008	1134281	UNION	1134281 UNION BOCCHETTONE	$204.08 MSRP: ~~206.50~~ (1.2% off)	6
009	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	2
010	8200605	NUT	8200605 NUT DADO	$3.06	2
011	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	2
012	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$14.35 MSRP: ~~15.00~~ (4.3% off)	1
013	8200605	NUT	8200605 NUT DADO	$3.06	2
014	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	2
015	1128555	PLUG	1128555 PLUG TAPPO INTRODUZiONE	-	1	Enquire
016	8602801	SEAL	8602801 SEAL ANELLO TENUTA	$3.85	1
017	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.87 MSRP: ~~12.30~~ (3.5% off)	1
018	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.29	1
019	8300631	STUD	8300631 STUD PRIGIONIERO	$18.39	4
020	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	11
021	8200605	NUT	8200605 NUT DADO	$3.06	11
022	1132649	COVER	1132649 COVER COPERCHIO	$217.11	1
023	8300602	STUD	8300602 STUD PRIGIONIERO	$6.70 MSRP: ~~6.95~~ (3.6% off)	7
024	N0122094	WASHER	N0122094 WASHER RONDELLA	$1.47 MSRP: ~~7.15~~ (79.4% off)	1
025	N0152785	WASHER	N0152785 WASHER RONDELLA	$0.40	1
026	8100807	SCREW	8100807 SCREW VITE	$0.83 MSRP: ~~7.27~~ (88.6% off)	1
027	1132669	COVER	1132669 COVER COPERCHIO	$708.45	1
028	1125077	GASKET	1125077 GASKET GUARNIZIONE	$46.25	1
029	8200816	NUT	8200816 NUT DADO	$5.14	4
030	WHT001514	WASHER	WHT001514 WASHER RONDELLA	$24.95 MSRP: ~~64.00~~ (61% off)	4
031	8300840	STUD	8300840 STUD PRIGIONIERO	$3.37	2
032	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	$6.09 MSRP: ~~6.30~~ (3.3% off)	2
033	8100839	SCREW	8100839 SCREW VITE	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
034	8400802	WASHER	8400802 WASHER RONDELLA	$1.50 MSRP: ~~7.27~~ (79.4% off)	2
035	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$8.17 MSRP: ~~8.45~~ (3.3% off)	6
036	11000988	Gasket	11000988 Gasket	$405.18	1
037	1121254	GASKET	1121254 GASKET GUARNIZIONE	$9.33	2
038	1734153	PIPE	1734153 PIPE TUBO	$742.57	1
