Left Cylinder Head of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

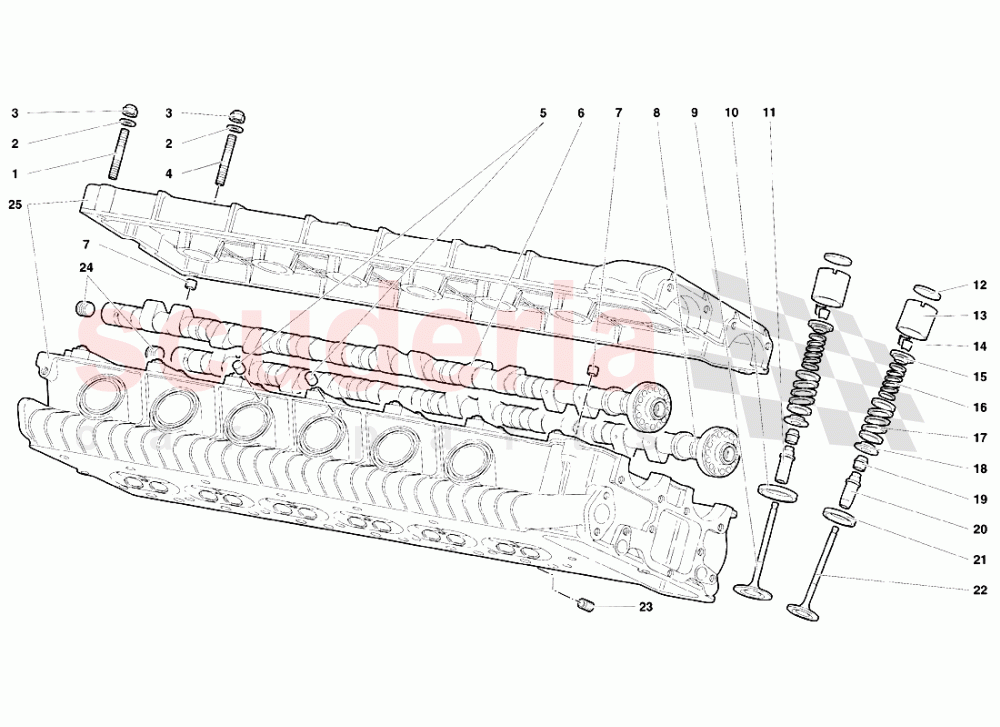

Lamborghini Diablo SE30 (1993-1995) - Left Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	$9.49 MSRP: ~~9.85~~ (3.7% off)	1
002	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	2
003	8200605	NUT	8200605 NUT DADO	$3.06	2
004	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$12.05 MSRP: ~~12.55~~ (4% off)	1
005	1122089	DOWEL	1122089 DOWEL GRAND	$16.80 MSRP: ~~17.60~~ (4.5% off)	2
006	1229370	CAMSHAFT	1229370 CAMSHAFT ASSE A CAMME ASP. TESTA SX	$16,203.43	1
007	8800604	BUSHING	8800604 BUSHING BOCCOLA	-	2	Enquire
008	1229369	CAMSHAFT	1229369 CAMSHAFT ASSE A CAMME SCARICO TESTA SX	$1,625.32	1
009	1224996	VALVE	1224996 VALVE VALVOLA ASPIRAZIONE	$56.16	12
011	1229717	VALVE GUIDE	1229717 VALVE GUIDE GUIDA VALVOLA SCARICO	$143.92	12
012	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.80 MM	$55.72	24
012	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.85 MM	$11.22	24
012	1220891	SHIM	1220891 SHIM SPESSORE Dl REGISTRO 3.95 MM	-	24	Enquire
012	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.90 MM	$55.72	24
012	1220892	Valve shims	1220892 Valve shims 4.00 MM	-	24	Enquire
012	1220900	SHIM	1220900 SHIM SPESSORE Dl REGISTRO 4.40 MM	-	24	Enquire
012	1220899	SHIM	1220899 SHIM SPESSORE Dl REGISTRO 4.35 MM	-	24	Enquire
012	1220898	SHIM	1220898 SHIM SPESSORE Dl REGISTRO 4.30 MM	-	24	Enquire
012	1220897	SHIM	1220897 SHIM SPESSORE Dl REGISTRO 4.25 MM	-	24	Enquire
012	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 4.10 MM	$55.72	24
012	1220896	SHIM	1220896 SHIM SPESSORE Dl REGISTRO 4.20 MM	-	24	Enquire
012	1220895	SHIM	1220895 SHIM SPESSORE Dl REGISTRO 4.15 MM	-	24	Enquire
012	1220905	SHIM	1220905 SHIM SPESSORE Dl REGISTRO 4.65 MM	-	24	Enquire
012	1220901	SHIM	1220901 SHIM SPESSORE Dl REGISTRO 4.45 MM	-	24	Enquire
012	1220893	SHIM	1220893 SHIM SPESSORE Dl REGISTRO 4.05 MM	-	24	Enquire
012	1220906	SHIM	1220906 SHIM SPESSORE Dl REGISTRO 4.70 MM	-	24	Enquire
012	1220903	SHIM	1220903 SHIM SPESSORE Dl REGISTRO 4.55 MM	-	24	Enquire
012	1220902	SHIM	1220902 SHIM SPESSORE Dl REGISTRO 4.50 MM	-	24	Enquire
012	1220904	SHIM	1220904 SHIM SPESSORE Dl REGISTRO 4.60 MM	-	24	Enquire
012	1220883	SHIM	1220883 SHIM SPESSORE Dl REGISTRO 3.55 MM	-	24	Enquire
012	1220884	SHIM	1220884 SHIM SPESSORE Dl REGISTRO 3.60 MM	-	24	Enquire
012	1220882	SHIM	1220882 SHIM SPESSORE Dl REGISTRO 3.50 MM	-	24	Enquire
012	1220881	SHIM	1220881 SHIM SPESSORE Dl REGISTRO 3.45 MM	-	24	Enquire
012	1220886	SHIM	1220886 SHIM SPESSORE Dl REGISTRO 3.70 MM	-	24	Enquire
012	1220880	SHIM	1220880 SHIM SPESSORE Dl REGISTRO 3.40 MM	-	24	Enquire
012	1220879	SHIM	1220879 SHIM SPESSORE Dl REGISTRO 3.35 MM	-	24	Enquire
012	1220887	SHIM	1220887 SHIM SPESSORE Dl REGISTRO 3.75 MM	-	24	Enquire
012	1220878	SHIM	1220878 SHIM SPESSORE Dl REGISTRO 3.30 MM	-	24	Enquire
012	1220877	SHIM	1220877 SHIM SPESSORE Dl REGISTRO 3.25 MM	-	24	Enquire
012	1220885	SHIM	1220885 SHIM SPESSORE Dl REGISTRO 3.65 MM	-	24	Enquire
013	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET PUNTERIA	$36.70	24
014	1220843	TAPPET LOCK CONE	1220843 TAPPET LOCK CONE SEMICONO PUNTERIE	$7.62	48
015	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$19.09	24
016	7M109633A	INNER SPRING	7M109633A INNER SPRING MOLLA INTERNA	$6.20	24
017	7M109623A	OUTER SPRING	7M109623A OUTER SPRING MOLLA ESTERNA	$19.15	24
018	1220993	TAPPET PLATE	1220993 TAPPET PLATE PIATTELLO INFERIORE PUNTERIA	-	24	Enquire
019	7M109675	SEAL RING	7M109675 SEAL RING	$15.73	48
020	1229718	VALVE GUIDE	1229718 VALVE GUIDE GUIDA VALVOLA SCARICO	$143.92	12
021	1225001	VALVE SEAT	1225001 VALVE SEAT SEDE VALVOLA SCARICO	-	12	Enquire
022	1224997	EXHAUST VALVE	1224997 EXHAUST VALVE VALVOLA SCARICO	$555.82	12
023	8840802	HELI-COIL	8840802 HELI-COIL	$3.24	12
024	8931412	PLUG	8931412 PLUG TAPPO	$94.42	2
025	463400400	HEAD	463400400 HEAD TESTA SX LAVORATA	$22,704.64	1
