Intake Manifold of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

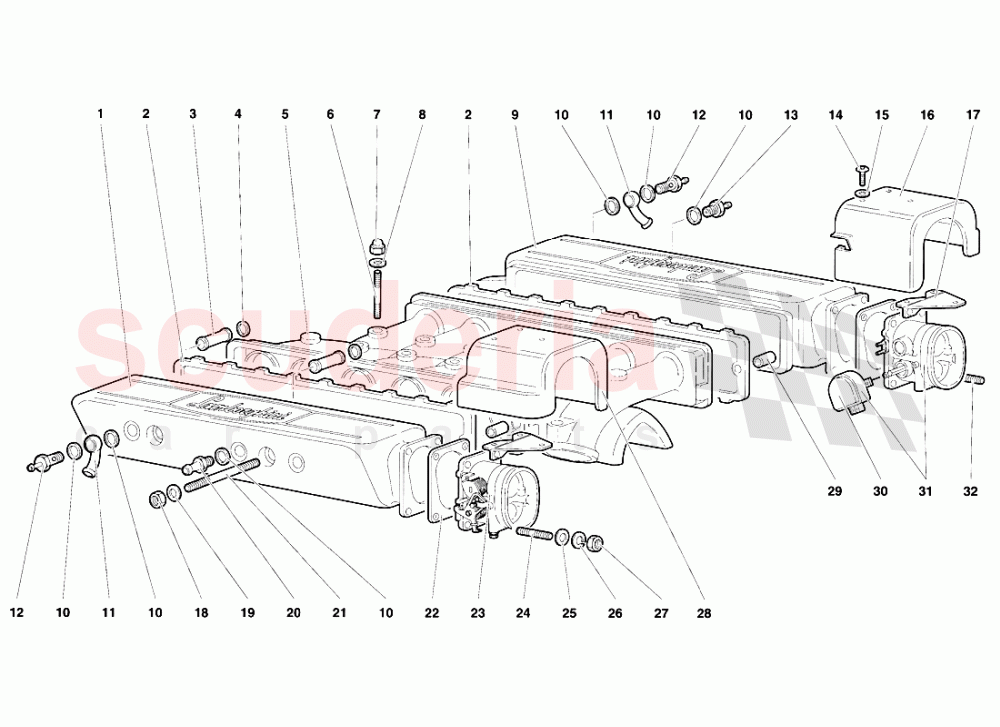

Lamborghini Diablo SE30 (1993-1995) - Intake Manifold

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1334565	RIGHT COVER	1334565 RIGHT COVER COPERCHIO DX	$1,570.53	1
002	1323717	Gasket	1323717 Gasket GUARNIZIONE	$58.06	2
003	1322163	SPACER	1322163 SPACER DISTANZIALE	-	4	Enquire
004	8401025	WASHER	8401025 WASHER RONDELLA	$33.31	4
005	1335012	INLET MANIFOLD	1335012 INLET MANIFOLD COLLETTORE ASPIRAZIONE	-	1	Enquire
006	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	10
007	8200605	NUT	8200605 NUT DADO	$3.06	10
008	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	6
009	1334566	LEFT COVER	1334566 LEFT COVER COPERCHIO SX	$1,570.53	1
010	3101513	WASHER	3101513 WASHER RONDELLA	$1.44 MSRP: ~~7.32~~ (80.3% off)	6
011	1328002	CONNECTION	1328002 CONNECTION RACCORDO	$58.75	2
012	1328722	CONNECTION	1328722 CONNECTION RACCORDO	$161.92	2
013	1330455	CONNECTION	1330455 CONNECTION RACCORDO	$33.15	1
014	8700541	SCREW	8700541 SCREW VITE	$3.18	6
015	8400511	WASHER	8400511 WASHER RONDELLA	$0.33	6
016	1335305	LEFT SHIELD	1335305 LEFT SHIELD PROTEZIONE SX	$482.00	1
017	1335307	BRACKET	1335307 BRACKET STAFFA	$27.66	2
018	8201006	NUT	8201006 NUT DADO	$7.58	4
019	8401022	WASHER	8401022 WASHER RONDELLA	$0.27 MSRP: ~~7.35~~ (96.3% off)	4
020	1330882	CONNECTION	1330882 CONNECTION RACCORDO	-	1	Enquire
021	8301030	STUD	8301030 STUD PRIGIONIERO	$34.99	4
022	1326311	GASKET	1326311 GASKET GUARNIZIONE	$22.03	2
023	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER CORPO FARFALLATO DX	$1,305.64	1
024	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.30	7
025	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 RONDELLA	$0.33 MSRP: ~~7.35~~ (95.5% off)	8
026	N0152785	WASHER	N0152785 WASHER RONDELLA	$0.40	8
027	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	$1.89	8
028	1335306	RIGHT SHIELD	1335306 RIGHT SHIELD PROTEZIONE DX	$366.00	1
029	WHT003577	DOWEL	WHT003577 DOWEL BOCCOLA	$1.80 MSRP: ~~7.03~~ (74.4% off)	4
030	1327641	POTENTIOMETER	1327641 POTENTIOMETER POTENZIOMETRO	$171.23 MSRP: ~~173.50~~ (1.3% off)	1
031	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER CORPO FARFALLATO SX	$1,420.59 MSRP: ~~1,485.00~~ (4.3% off)	1
032	8300913	STUD	8300913 STUD PRIGIONIERO	$47.47	1
