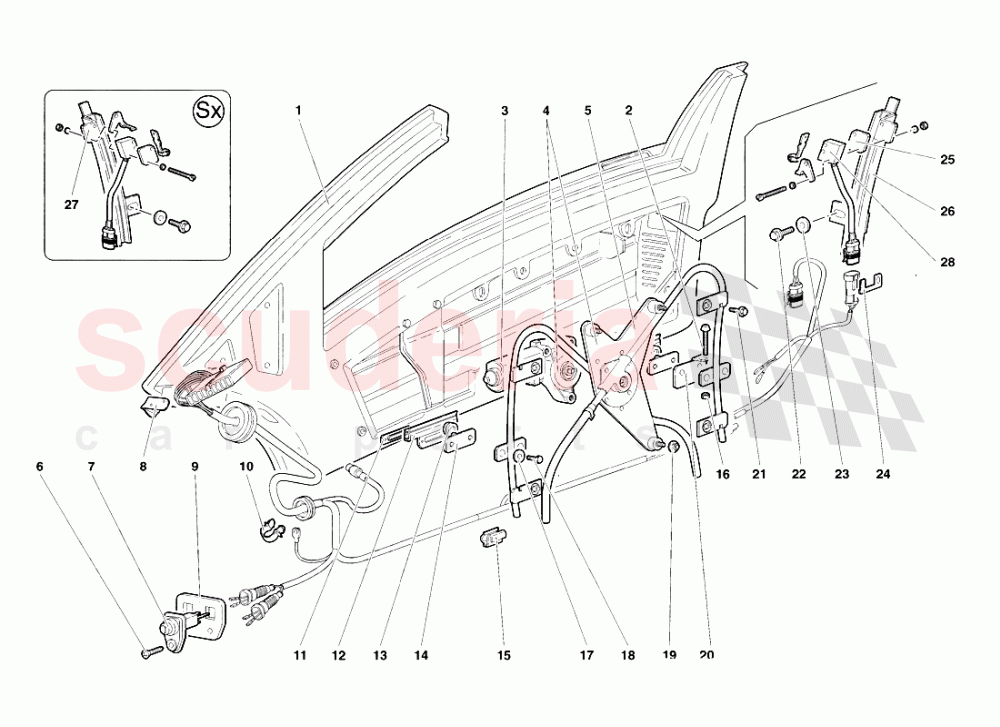

Lamborghini Diablo VT Roadster (1998-2000) - Doors 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9921009	LEFT DOOR	9921009 LEFT DOOR (Valid for U.S.A.1998) PORTA SX	$11,234.46	1
001	9921009	LEFT DOOR	9921009 LEFT DOOR (Valid for AUSTRALIA.1998)PORTA SX	$11,234.46	1
001	9921009	LEFT DOOR	9921009 LEFT DOOR (Valid for CANADA1998) PORTA SX	$11,234.46	1
001	9921008	RIGHT DOOR	9921008 RIGHT DOOR (Valid for CANADA1998) PORTA DX	$11,178.63	1
001	9921008	RIGHT DOOR	9921008 RIGHT DOOR (Valid for AUSTRALIA.1998) PORTA DX	$11,178.63	1
001	9921002	RIGHT DOOR	9921002 RIGHT DOOR PORTA DX	$9,973.10	1
001	9921003	LEFT DOOR	9921003 LEFT DOOR PORTA SX	$9,973.10	1
001	9921008	RIGHT DOOR	9921008 RIGHT DOOR (Valid for U.S.A.1998) PORTA DX	$11,178.63	1
002	9444205	ADJ/SCREW	9444205 ADJ/SCREW ARRESTO	$24.62	2
003	9921805	LEFT ELECT MOTOR	9921805 LEFT ELECT MOTOR MOTORINO ELETTRICO SX	$326.40	1
003	9921804	RIGHT ELECT MOTOR	9921804 RIGHT ELECT MOTOR MOTORING ELETTRICO DX	$400.75	1
004	9921807	LEFT WINDOW REG.	9921807 LEFT WINDOW REG. ALZACRISTALLO SX COMPLETO	$1,498.13	1
004	9921800	RIGHT WINDOW REG.	9921800 RIGHT WINDOW REG. ALZACRISTALLO DX COMPLETO	$610.83	1
005	9921803	LEFT WINDOW REGUL	9921803 LEFT WINDOW REGUL ALZACRISTALLO SX	$272.14	1
005	9921802	RIGHT WINDOW REG.	9921802 RIGHT WINDOW REG. ALZACRISTALLO DX	$272.14	1
006	WHT003304	SCREW	WHT003304 SCREW VITE	$0.61 MSRP: ~~7.28~~ (91.6% off)	4
007	5934450	SWITCH	5934450 SWITCH INTERRUTTORE	$21.47 MSRP: ~~21.75~~ (1.3% off)	4
008	9421618	RIGHT SUPPORT	9421618 RIGHT SUPPORT FASCETTA DX	$16.09	1
008	9421619	LEFT SUPPORT	9421619 LEFT SUPPORT FASCETTA SX	$16.09	1
009	5934448	PLATE	5934448 PLATE PIASTRINA	$31.02 MSRP: ~~32.40~~ (4.3% off)	2
010	8830411	STRAP	8830411 STRAP MOLLETTA	$1.29 MSRP: ~~7.09~~ (81.8% off)	4
011	9921508	BRACKET	9921508 BRACKET STAFFETTA	$122.84	4
012	9921509	BRACKET	9921509 BRACKET STAFFA	$244.43	4
013	8611802	RUBBER RING	8611802 RUBBER RING PASSACAVO	$15.33	4
014	9921510	BRACKET	9921510 BRACKET STAFFA	$179.92	4
015	8830302	CLAMP	8830302 CLAMP FASCETTA	$4.35	10
016	N01100637	NUT M6	N01100637 NUT M6 DADO	$0.33 MSRP: ~~7.29~~ (95.5% off)	4
017	8400501	WASHER	8400501 WASHER RONDELLA	$0.19 MSRP: ~~7.36~~ (97.4% off)	8
018	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	$0.67 MSRP: ~~7.31~~ (90.8% off)	8
019	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	$0.21	6
020	9921511	RIGHT PLATE	9921511 RIGHT PLATE PIASTRA DX	$25.14	2
020	9921512	LEFT PLATE	9921512 LEFT PLATE PIASTRA SX	$25.14	2
021	N90319404	SCREW	N90319404 SCREW VITE	$1.89	8
022	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	2
023	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	2
024	6137785	SUPPORT - SUPPORTO	6137785 SUPPORT - SUPPORTO O	$1.96	2
025	9921222	SPACER	9921222 SPACER DISTANZIALE	$57.63	2
026	9921110	RIGHT SUPPORT	9921110 RIGHT SUPPORT SUPPORTO DX	$130.27	2
027	9921111	LEFT SUPPORT	9921111 LEFT SUPPORT SUPPORTO SX	$151.98	2
028	6137288	SWITCH	6137288 SWITCH INTERRUTTORE	$366.00	2
