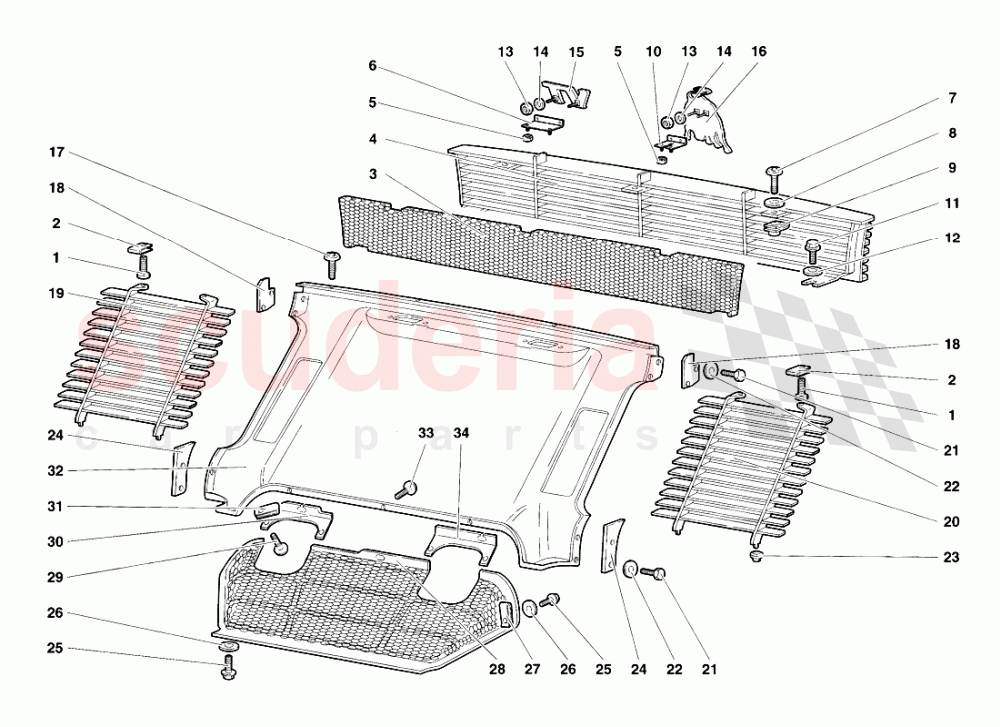

Lamborghini Diablo VT Roadster (1998-2000) - Rear Coque Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700437	SCREW	8700437 SCREW VITE	-	4	Enquire
002	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	4
003	9430159	NET	9430159 NET RETE	$247.54	1
004	9910210	GRILLE	9910210 GRILLE GRIGLIA	$696.04	1
005	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT DADO	-	1	Enquire
006	9430166	BRACKET	9430166 BRACKET STAFFA	$235.22	1
007	8740685	SCREW	8740685 SCREW VITE	$21.42	3
008	8400629	WASHER	8400629 WASHER RONDELLA	$1.44 MSRP: ~~7.11~~ (79.7% off)	3
009	N90327506	SPEED NUT	N90327506 SPEED NUT	$0.94	3
010	9910211	BRACKET	9910211 BRACKET STAFFA	$15.21	1
011	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	2
012	N91109201	WASHER	N91109201 WASHER RONDELLA	$1.55 MSRP: ~~5.85~~ (73.5% off)	2
013	8200302	NUT	8200302 NUT DADO	$0.16	4
014	8400303	WASHER	8400303 WASHER RONDELLA	$0.04	4
015	9966003	PLATE	9966003 PLATE TARGHETTA VT	$26.25	1
016	9966005	ORNAMENT (BULL)	9966005 ORNAMENT (BULL) FREGIO	$295.29	1
017	8740685	SCREW	8740685 SCREW VITE	$21.42	2
018	9410205	SPACER	9410205 SPACER DISTANZIALE	$12.45	2
019	9430103	RIGHT GRILLE	9430103 RIGHT GRILLE GRIGLIA DX	$3,568.03	1
020	9430104	LEFT GRILLE	9430104 LEFT GRILLE GRIGLIA SX	$3,712.77	1
021	8100621	SCREW	8100621 SCREW VITE	$0.12 MSRP: ~~7.37~~ (98.4% off)	8
022	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	8
023	66002463	BUSHING	66002463 BUSHING BOCCOLA	$3.43 MSRP: ~~3.50~~ (2% off)	4
024	9410206	SPACER	9410206 SPACER DISTANZIALE	$50.08	2
025	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	4
026	N91109201	WASHER	N91109201 WASHER RONDELLA	$1.55 MSRP: ~~5.85~~ (73.5% off)	4
027	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	4
028	9430174	GRILLE	9430174 GRILLE GRIGLIA	$524.82	1
029	N91049601	OVAL HEAD PANEL SCREW (COMBI)	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE	$0.67 MSRP: ~~7.31~~ (90.8% off)	4
030	9430144	RIGHT PLATE	9430144 RIGHT PLATE LAMIERINO DX	$42.51	1
031	8220402	CLIP	8220402 CLIP MOLLETTA	$4.41 MSRP: ~~7.12~~ (38.1% off)	4
032	9410200	REAR PANEL	9410200 REAR PANEL ELEMENTO SCOGCA POST.	$1,929.29 MSRP: ~~1,950.00~~ (1.1% off)	1
033	8740685	SCREW	8740685 SCREW VITE	$21.42	3
034	9430146	LEFT PLATE	9430146 LEFT PLATE LAMIERINO SX	$42.51	1
