Frame Elements of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

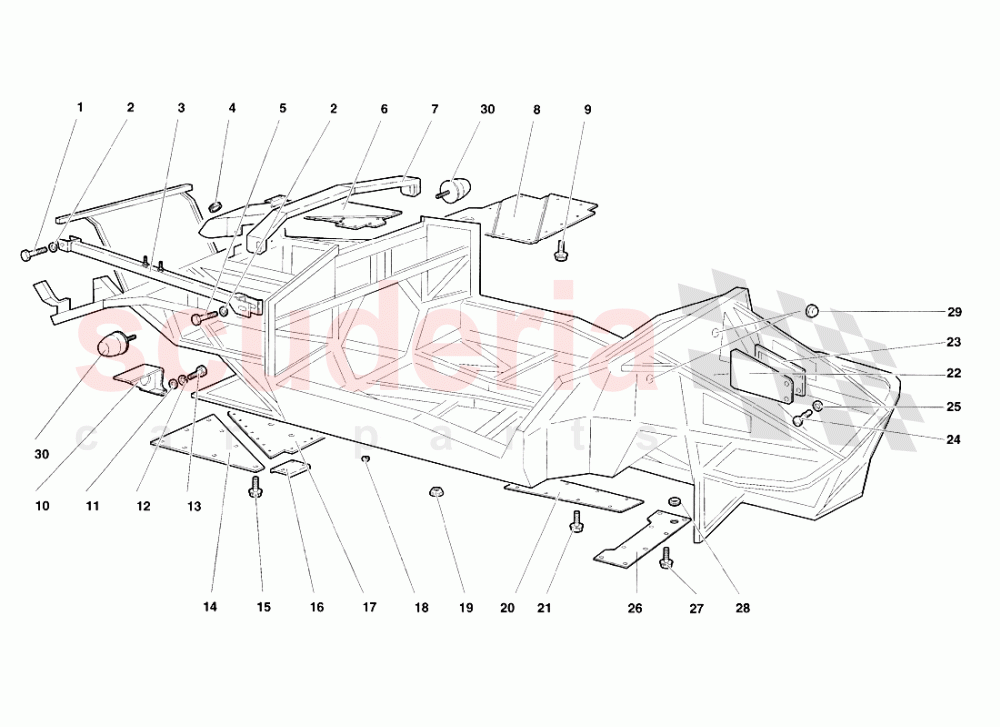

Lamborghini Diablo VT Roadster (1998-2000) - Frame Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0147519	SCREW M8X50	N0147519 SCREW M8X50 VITE	-	2	Enquire
002	8410819	WASHER	8410819 WASHER RONDELLA	-	4	Enquire
003	4133595	LEFT CROSSRAIL	4133595 LEFT CROSSRAIL TRAVERSA SX	-	1	Enquire
003	4133596	RIGHT CROSSRAIL	4133596 RIGHT CROSSRAIL TRAVERSADX	-	1	Enquire
004	8611606	GASKET	8611606 GASKET ANELLO GOMMA	-	2	Enquire
005	8700846	SCREW	8700846 SCREW VITE	-	2	Enquire
006	9411522	RIGTH SUPPORT	9411522 RIGTH SUPPORT SUPPORTO DX	-	1	Enquire
006	9411523	LEFT SUPPORT	9411523 LEFT SUPPORT SUPPORTO SX	-	1	Enquire
007	4131512	CROSSRAIL	4131512 CROSSRAIL TRAVERSA	-	1	Enquire
008	4135417	PANEL	4135417 PANEL PANNELLO	-	1	Enquire
009	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	11	Enquire
010	4137167	SUPPORT - SUPPORTO SERBATOIO BENZINA	4137167 SUPPORT - SUPPORTO SERBATOIO BENZINA O SERBATOIO BENZINA	-	1	Enquire
011	8400801	WASHER	8400801 WASHER RONDELLA	-	2	Enquire
012	8410819	WASHER	8410819 WASHER RONDELLA	-	2	Enquire
013	8100812	SCREW	8100812 SCREW VITE	-	2	Enquire
014	4135426	PANEL	4135426 PANEL PANNELLO	-	1	Enquire
015	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	8	Enquire
016	4133887	REINFORCEMENT	4133887 REINFORCEMENT RINFORZO	-	2	Enquire
017	4135423	PANEL	4135423 PANEL PANNELLO	-	1	Enquire
018	4134333	PLUG	4134333 PLUG TAPPO	-	4	Enquire
019	4131483	PLUG	4131483 PLUG TAPPO	-	8	Enquire
020	4130445	PANEL	4130445 PANEL PANNELLO	-	1	Enquire
021	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	8	Enquire
022	4130206	RIGHT PANEL	4130206 RIGHT PANEL PANNELLO ISPEZIONE ALZAFARI DX	-	1	Enquire
022	4130207	LEFT PANEL	4130207 LEFT PANEL PANNELLO ISPEZIONE ALZAFARI SX	-	1	Enquire
023	9490205	LEFT GASKET	9490205 LEFT GASKET GUARNIZIONE SX	-	1	Enquire
023	410805349	RH GASKET	410805349 RH GASKET GUARNIZIONE DX	-	1	Enquire
024	4131085	PIN	4131085 PIN PERNOAGGANCIO RAPIDO	-	4	Enquire
025	7014263	RUBBER WASHER	7014263 RUBBER WASHER RONDELLA	-	4	Enquire
026	4132986	PANEL	4132986 PANEL PANNELLO	-	1	Enquire
027	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	8	Enquire
028	8612503	GASKET	8612503 GASKET ANELLO GOMMA	-	1	Enquire
029	8931407	PLUG	8931407 PLUG TAPPO	-	2	Enquire
030	4137362	RUBBER PAD	4137362 RUBBER PAD TAMPONE GOMMA	-	2	Enquire
