Rear Wheel and Hub Carrier of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

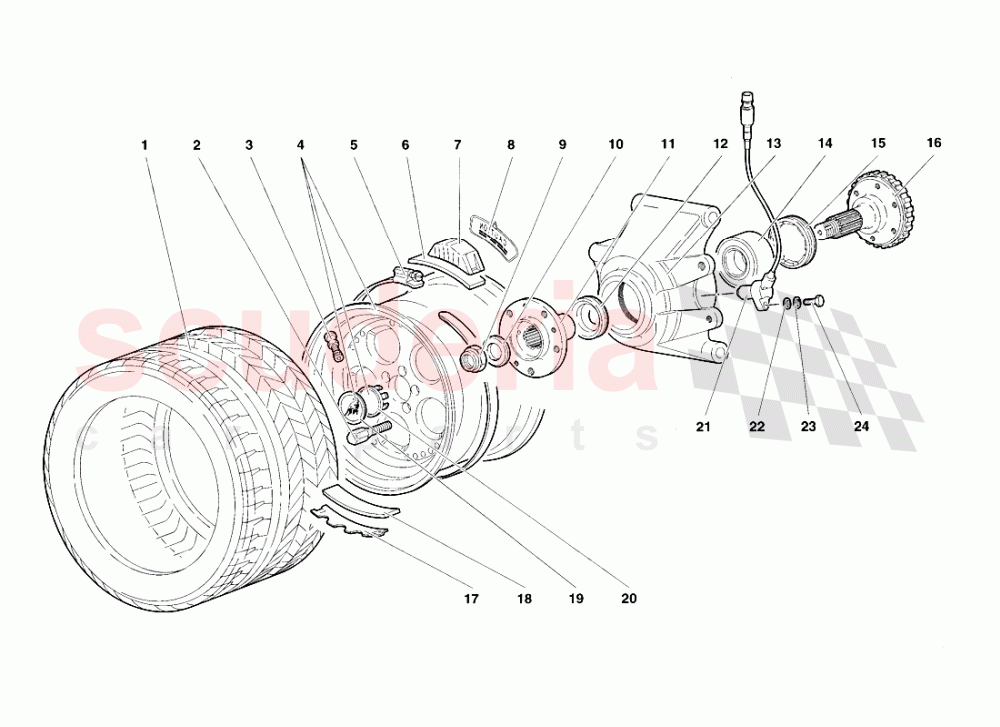

Lamborghini Diablo VT Roadster (1998-2000) - Rear Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5334365	REAR TYRE	5334365 REAR TYRE PNEUMATICO POST. 335/30 ZR 18	-	2	Enquire
002	51001075	STUD	51001075 STUD COLON N ETTA	$32.95 MSRP: ~~34.45~~ (4.4% off)	10
002	51001075LB	LOCKING WHEEL BOLT SET	51001075LB LOCKING WHEEL BOLT SET (includes 1 bolt for each wheel and removal tool)	-	1	Enquire
003	5335195	SUPPORT - SUPPORTO	5335195 SUPPORT - SUPPORTO VALVOLA	$32.95 MSRP: ~~34.45~~ (4.4% off)	2
004	52001025	REAR RIM 18''	52001025 REAR RIM 18''	$2,221.89	2
005	5131893	STRAP	5131893 STRAP FASCETTA	-	2	Enquire
006	5131894	GASKET	5131894 GASKET PROTEZIONE	$2.67 MSRP: ~~2.70~~ (1.1% off)	2
007	5136176	LOW TYRE P. SENSOR	5136176 LOW TYRE P. SENSOR TRASMETTITORE	$1,165.24	2
008	5132551	PLATE	5132551 PLATE TARGHETTA	$16.25	2
009	5231418	NUT	5231418 NUT DADO	$1,006.01	2
010	8403103	WASHER	8403103 WASHER RONDELLA	$147.03	2
011	52001022	HUB	52001022 HUB MOZZO	$430.52 MSRP: ~~436.00~~ (1.3% off)	2
012	5238073	SPACER	5238073 SPACER DISTANZIALE	$406.96	2
013	52000980	RIGHT HUB HOUSING	52000980 RIGHT HUB HOUSING PORTAMOZZO DX	$14,733.21	1
013	52000979	LEFT HUB HOUSING	52000979 LEFT HUB HOUSING PORTAMOZZO SX	$1,395.79	1
014	8514501	BEARING	8514501 BEARING CUSCINETTO	$115.64 MSRP: ~~121.00~~ (4.4% off)	2
015	5233369	PLUG	5233369 PLUG GHIERA	$240.08 MSRP: ~~251.00~~ (4.4% off)	2
016	52002593	FLANGE	52002593 FLANGE FLANGIA	$2,714.01	2
017	5131892	BALANCE WEIGHT	5131892 BALANCE WEIGHT CONTRAPPESO	$33.01	2
018	5131895	GASKET	5131895 GASKET PROTEZIONE	$3.43 MSRP: ~~3.50~~ (2% off)	2
019	52006282	ORNAMENT IN STOCK	52006282 ORNAMENT FREGIO IN STOCK	$180.93	2
020	5236021	SUPPORT - SUPPORTO	5236021 SUPPORT - SUPPORTO O	-	2	Enquire
021	51001139	TYRE REVOLUT. SENS.	51001139 TYRE REVOLUT. SENS. SENSORE GIRI RUOTA LAVOR.	$252.49	2
022	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
023	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	2
024	8100603	SCREW	8100603 SCREW VITE	$1.38 MSRP: ~~7.35~~ (81.2% off)	2
