Frame Floor Panels of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

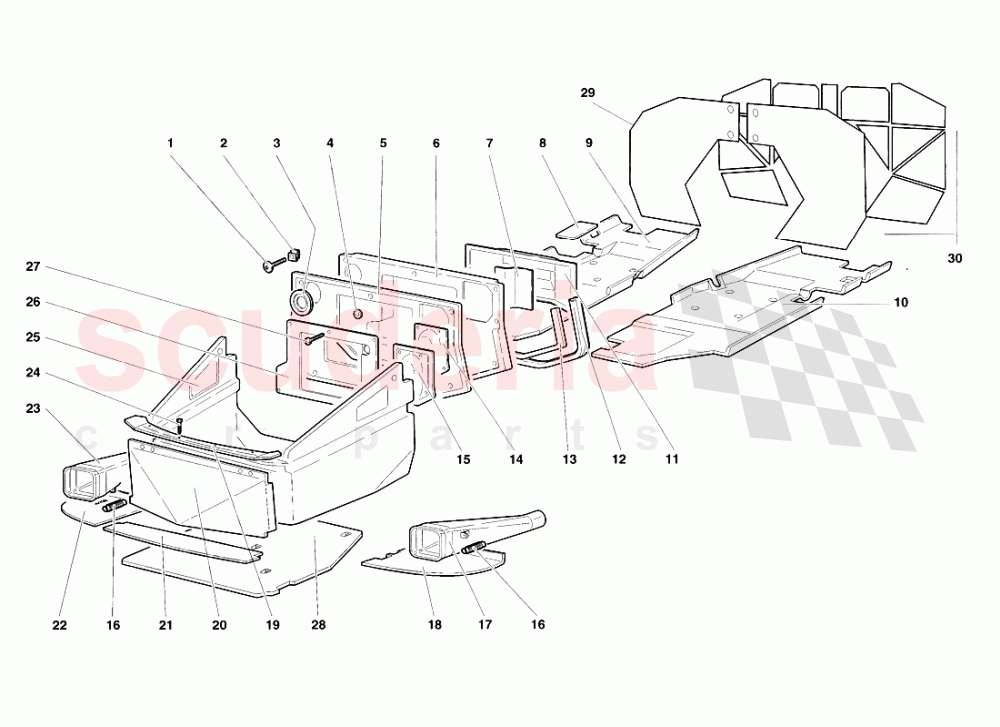

Lamborghini Diablo VT Roadster (1998-2000) - Frame Floor Panels

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700671	SCREW	8700671 SCREW VITE	-	10	Enquire
002	8220605	CLIP	8220605 CLIP MOLLETTA	-	3	Enquire
003	9409215	GASKET	9409215 GASKET GUARNIZIONE	-	1	Enquire
004	9909101	SPACER	9909101 SPACER DISTANZIALE	-	1	Enquire
005	9409228	COVERING	9409228 COVERING RIVESTIMENTO	-	1	Enquire
006	9409242	PANEL	9409242 PANEL PANNELLO	-	1	Enquire
007	9409247	COVERING	9409247 COVERING PELLICOLA	-	1	Enquire
008	9911802	PANEL	9911802 PANEL PANNELLO	-	1	Enquire
009	68001554	RIGHT SHELF PANEL	68001554 RIGHT SHELF PANEL PIANALE DX	-	1	Enquire
010	68001555	LEFT SHELF PANEL	68001555 LEFT SHELF PANEL PIANALE SX	-	1	Enquire
011	9411112	PANEL	9411112 PANEL PANNELLO	-	1	Enquire
012	9409218	GASKET	9409218 GASKET GUARNIZIONE	-	1	Enquire
013	9409219	GASKET	9409219 GASKET GUARNIZIONE	-	1	Enquire
014	9409245	INSPECTION LID	9409245 INSPECTION LID SPORTELLO ISPEZIONE	-	1	Enquire
015	9409246	COVERING	9409246 COVERING RIVESTIMENTO	-	1	Enquire
016	1321270	SPRING	1321270 SPRING MOLLA	-	4	Enquire
017	9953105	LEFT CONVEYOR	9953105 LEFT CONVEYOR CONVOGLIATORE SX	-	1	Enquire
018	9411101	LEFT PANEL	9411101 LEFT PANEL PANNELLO SX	-	1	Enquire
019	68007749	FRAME	68007749 FRAME PANNELLO	-	1	Enquire
020	68001342	PANEL	68001342 PANEL PANNELLO	-	1	Enquire
021	9411106	PANEL	9411106 PANEL PANNELLO	-	1	Enquire
022	9411115	RIGHT PANEL	9411115 RIGHT PANEL PANNELLO DX	-	1	Enquire
023	9953106	RIGHT CONVEYOR	9953106 RIGHT CONVEYOR CONVOGLIATORE DX	-	1	Enquire
024	8700211	BLACK SCREW	8700211 BLACK SCREW VITE	-	4	Enquire
025	65001332	COVERING	65001332 COVERING RIVESTIMENTO	-	1	Enquire
026	65001326	FRAME	65001326 FRAME CORNICE	-	1	Enquire
027	8700211	BLACK SCREW	8700211 BLACK SCREW VITE	-	6	Enquire
028	68001343	PANEL	68001343 PANEL PANNELLO	-	1	Enquire
029	310144009	INTERNAL INSULATION	310144009 INTERNAL INSULATION ISOLAM. INT. ABITACOLO	-	1	Enquire
030	310132017	INTERNAL INSULATION	310132017 INTERNAL INSULATION ISOLAM. INT. ABITACOLO	-	1	Enquire
