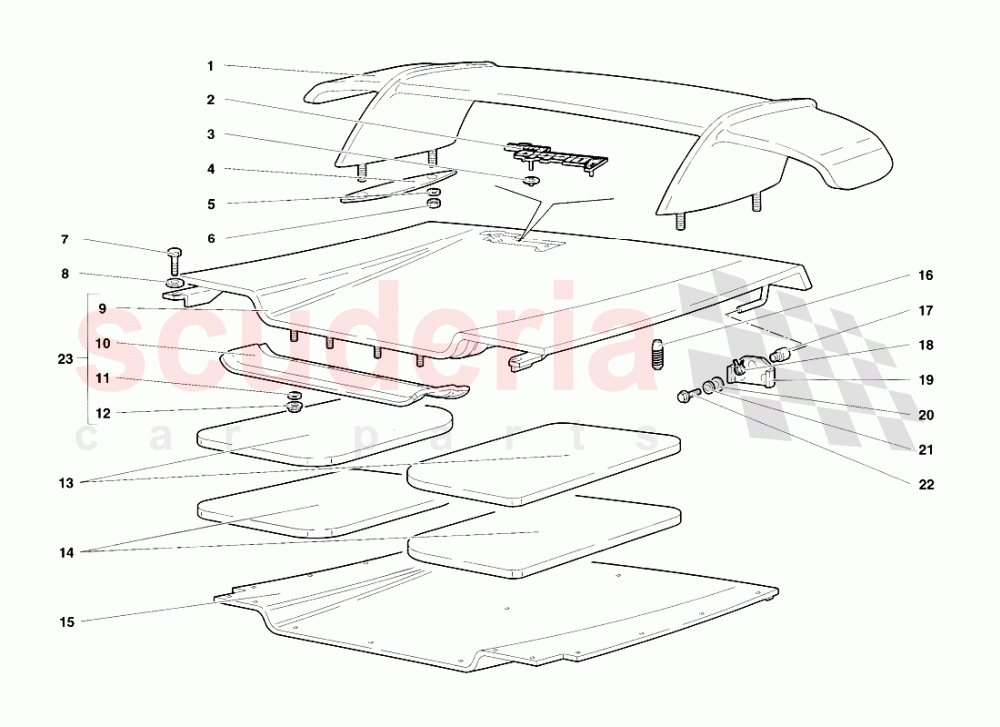

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9990000	WING	9990000 WING ALETTONE (OPTIONAL)	-	1	Enquire
001	9990000VS	PAINTED WING	9990000VS PAINTED WING ALETTONE VERNICIATO	-	1	Enquire
002	9966002	ORNAMENT	9966002 ORNAMENT FREGIO	-	1	Enquire
003	8410305	CLIP	8410305 CLIP MOLLETTA	-	3	Enquire
004	97001880	GASKET	97001880 GASKET GUARNIZIONE	-	2	Enquire
005	8400606	WASHER	8400606 WASHER RONDELLA	-	4	Enquire
006	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	4	Enquire
007	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
008	WHT003093	Washer	WHT003093 Washer RONDELLA	-	2	Enquire
009	9929001	REAR BONNET	9929001 REAR BONNET COFANO POSTERIORE	-	1	Enquire
010	9929102	PANEL	9929102 PANEL PANNELLO	-	1	Enquire
011	N91109201	WASHER	N91109201 WASHER RONDELLA	-	4	Enquire
012	8200513	NUT	8200513 NUT DADO	-	4	Enquire
013	9955411	LINING	9955411 LINING ISOLAMENTO	-	2	Enquire
014	9955410	LINING	9955410 LINING ISOLAMENTO	-	2	Enquire
015	9955412	PANEL	9955412 PANEL PANNELLO	-	1	Enquire
016	9460214	RUBBER BUMPER	9460214 RUBBER BUMPER TAMPONE GOMMA	-	2	Enquire
017	410814940	BUSHING	410814940 BUSHING BOCCOLA	-	2	Enquire
018	8830131	CLAMP	8830131 CLAMP FASCETTA	-	2	Enquire
019	4137074	BRACKET	4137074 BRACKET STAFFA	-	2	Enquire
020	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	4	Enquire
021	8410602	WASHER	8410602 WASHER RONDELLA	-	4	Enquire
022	8100618	SCREW	8100618 SCREW VITE	-	4	Enquire
