Coque Elements -Right Flank of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

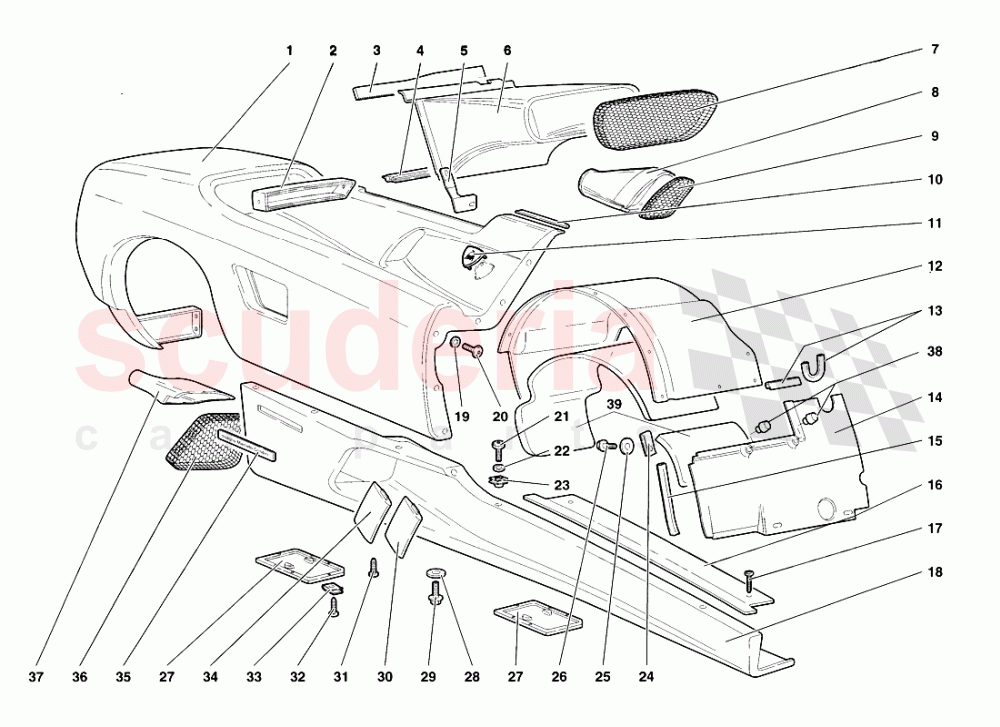

Lamborghini Diablo VT Roadster (1998-2000) - Coque Elements -Right Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9910002	REAR WING	9910002 REAR WING	$9,925.54	1
002	9910207	GRILLE	9910207 GRILLE GRIGLIA	$161.28	1
003	4531592	GASKET	4531592 GASKET GUARNIZIONE	$9.32 MSRP: ~~9.45~~ (1.4% off)	1
004	7090117	GASKET	7090117 GASKET GUARNIZIONE .	$58.63	1
005	4135637	BRACKET	4135637 BRACKET STAFFA	$73.32	1
006	9953102	CONVEYOR	9953102 CONVEYOR CONVOGLIATORE	$830.02	1
007	9910202	NET	9910202 NET RETE	$115.04	1
008	9953100	CONVEYOR	9953100 CONVEYOR CONVOGLIATORE	$294.04	1
009	9910204	NET	9910204 NET RETE	$84.87	1
010	9907107	SHIELD	9907107 SHIELD PROTEZIONE	$17.19	1
011	6127985	ORNAMENT	6127985 ORNAMENT FREGIO	$455.33	1
012	9911500	REAR WHEELBOX	9911500 REAR WHEELBOX PASSARUOTA POST.	$420.61	1
013	9411513	GASKET	9411513 GASKET GUARNIZIONE	$183.12	2
014	9911502	PROTECTION	9911502 PROTECTION PARASASSI	$508.06	1
015	9411511	GASKET	9411511 GASKET GUARNIZIONE	$109.81	1
016	9458614	DOORSILL MOULDING	9458614 DOORSILL MOULDING BATTICALCAGNO	$764.28	1
017	8700334	SCREW	8700334 SCREW VITE	$0.70 MSRP: ~~7.25~~ (90.3% off)	2
018	9910300	SIDE PANEL	9910300 SIDE PANEL BRANCARDO	$6,014.27	1
019	8400629	WASHER	8400629 WASHER RONDELLA	$1.44 MSRP: ~~7.11~~ (79.7% off)	13
020	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	13
021	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	3
022	8400629	WASHER	8400629 WASHER RONDELLA	$1.44 MSRP: ~~7.11~~ (79.7% off)	3
023	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$0.94	6
024	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	17
025	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.55 MSRP: ~~5.85~~ (73.5% off)	17
026	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.99 MSRP: ~~7.37~~ (59.4% off)	17
027	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZIONE	$67.50 MSRP: ~~70.60~~ (4.4% off)	2
028	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
029	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20 VITE	$44.78	9
030	9410309	FIN	9410309 FIN ALETTA	$6,339.92	1
031	WHT003304	SCREW IN STOCK	WHT003304 SCREW VITE IN STOCK	$0.61 MSRP: ~~7.28~~ (91.6% off)	4
032	WHT003114	SCREW	WHT003114 SCREW VITE	$5.45	12
033	WHT003424	CLIP IN STOCK	WHT003424 CLIP MOLLETTA IN STOCK	$0.89 MSRP: ~~7.25~~ (87.7% off)	12
034	9410310	FIN	9410310 FIN ALETTA	$6,339.92	1
036	9430147	NET	9430147 NET RETE	$129.11	1
037	9953104	CONVEYOR	9953104 CONVEYOR CONVOGLIATORE	$605.47	1
038	9421428	RUBBER PAD	9421428 RUBBER PAD TAMPONE GOMMA	$5.14 MSRP: ~~5.30~~ (3% off)	2
039	9455517	RIGHT LINING	9455517 RIGHT LINING (Valid for SWITZERLAND1998) ISOLAMENTO DX	$81.63	1
