Windscreen Wiper and Headlamp Washers of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Windscreen Wiper and Headlamp Washers

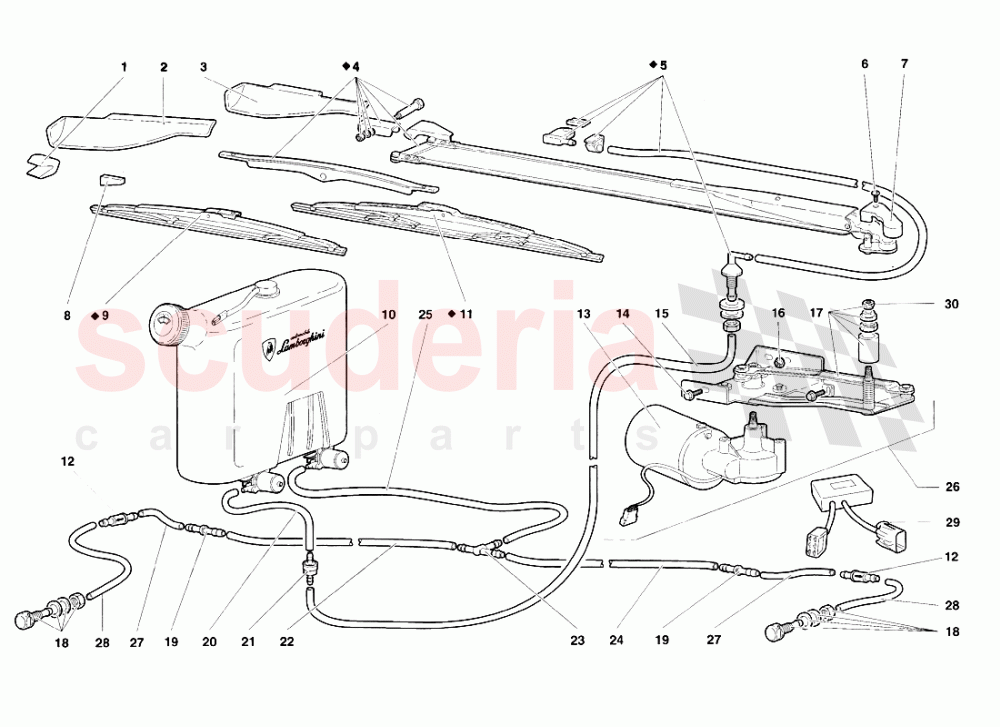

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	600992002	WIND SCREENWIPER	600992002 WIND SCREENWIPER ( Includes any part marked - ? ) KIT TERGICRISTALLO	-	1	Enquire
001	9420129	RUBBER BUMPER	9420129 RUBBER BUMPER PARACOLPI GOMMA	$34.54	1
002	9420128	FIN	9420128 FIN ALETTA ESTERNA	$2,258.06	1
003	9420127	FIN	9420127 FIN ALETTA INTERNA	$1,166.68	1
004	9920103	WIPER ARM	9920103 WIPER ARM BRACCIOTERGITORE	-	1	Enquire
005	418955215	WINDSCREEN WASHER	418955215 WINDSCREEN WASHER LAVAPARABREZZA	$137.10	1
006	WHT003302	SCREW M4X6 IN STOCK	WHT003302 SCREW M4X6 IN STOCK	$1.81 MSRP: ~~7.10~~ (74.5% off)	1
007	9420137	SHIELD	9420137 SHIELD PROTEZIONE	-	1	Enquire
008	9420136	RUBBER	9420136 RUBBER GOMMA	$102.22 MSRP: ~~103.50~~ (1.2% off)	1
009	9420126	BRUSH	9420126 BRUSH SPAZZOLA TERGI (330 MM)	$31.26 MSRP: ~~31.60~~ (1.1% off)	1
010	9420219	WATER RESERVOIR	9420219 WATER RESERVOIR SERBATOIO LAVACRISTALLO .	$822.56	1
011	9920102	WIPER BRUSH	9920102 WIPER BRUSH SPAZZOLA TERGI (450 MM)	$102.22	1
012	9420217	VALVE	9420217 VALVE VALVOLA	$6.75	1
013	9420112	ELECT MOTOR	9420112 ELECT MOTOR MOTORING TERGI	$602.99 MSRP: ~~629.00~~ (4.1% off)	1
014	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	2
015	9420211	PIPE	9420211 PIPE TUBO	$7.31	1
016	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	2
017	9920100	LEVER ASSY	9920100 LEVER ASSY MECCANISMO TERGI	$564.51	1
018	400955985	NOZZLE	400955985 NOZZLE UGELLO LAVAFARO	$5.79	2
019	9420208	CONNECTION	9420208 CONNECTION RACCORDO2VIE	$1.50	2
020	9420201	PIPE	9420201 PIPE TUBO	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
021	9420210	VALVE	9420210 VALVE VALVOLA	$6.45	1
022	9420213	PIPE	9420213 PIPE TUBO	$6.28	1
023	9420209	3 WAY CONNECTION	9420209 3 WAY CONNECTION RACCORDO3VIE	$2.61	1
024	9420214	PIPE	9420214 PIPE TUBO	$21.36	1
025	9420230	PIPE	9420230 PIPE TUBO	-	1	Enquire
026	9920001	WIPER GEAR MOTOR	9920001 WIPER GEAR MOTOR MOTORIDUTTORE TERGI COMPL	$672.46	1
027	9420229	PIPE	9420229 PIPE TUBO	-	2	Enquire
028	9420228	PIPE	9420228 PIPE TUBO	-	2	Enquire
029	6138108	INTERMITTENCE	6138108 INTERMITTENCE INTERMITTENZA	$799.00 MSRP: ~~835.00~~ (4.3% off)	1
030	8200828	NUT	8200828 NUT DADO	-	1	Enquire
