Name: FRONT BRAKE CALLIPERS
Rating: 4.0 (1 reviews)

FRONT BRAKE CALLIPERS of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - FRONT BRAKE CALLIPERS

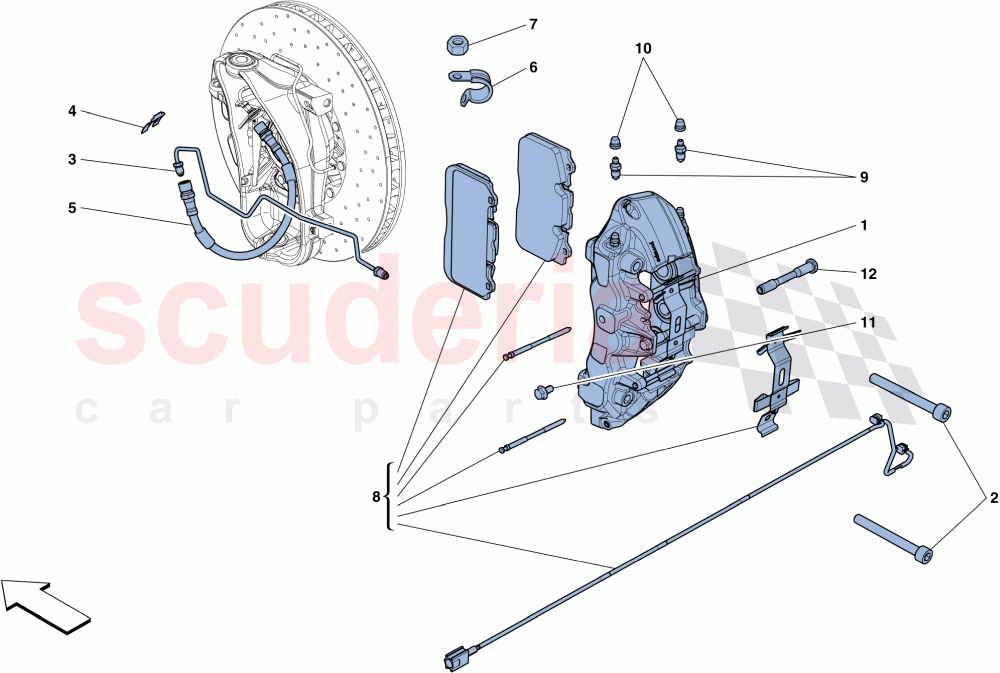

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315573	FRONT LH CALLIPER WITH PADS	$3,639.84	To Order
	315575	FRONT LH CALLIPER WITH PADS	$4,004.56	To Order
	315569	FRONT LH CALLIPER WITH PADS	$3,639.84	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW	$19.69	To Order

Photo	Part No	Description	Price (each)	Stock
	254601	BRAKE PIPE FROM CALIPER TO LH HOSE	$44.91	To Order
	254603	BRAKE PIPE FROM CALIPER TO RH HOSE	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	777000	BRAKE HOSE	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	10440890	BRACKET WITH SHEATH	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	70002035	FRONT BRAKE PAD SET WITH SPRING	$1,445.92	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	198014	SCREW	$10.96	To Order

Photo	Part No	Description	Price (each)	Stock
	263210	TIE-ROD	$50.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	315573	FRONT LH CALLIPER WITH PADS	315573 FRONT LH CALLIPER WITH PADS Gold	$3,639.84	1
1	315575	FRONT LH CALLIPER WITH PADS	315575 FRONT LH CALLIPER WITH PADS Blue	$4,004.56	1
1	315569	FRONT LH CALLIPER WITH PADS	315569 FRONT LH CALLIPER WITH PADS Silver	$3,639.84	1
1	315567	FRONT LH CALLIPER WITH PADS	315567 FRONT LH CALLIPER WITH PADS Yellow	$3,639.84	1
1	315565	FRONT LH CALLIPER WITH PADS	315565 FRONT LH CALLIPER WITH PADS Scuderia Red	$3,639.84	1
1	315563	FRONT LH CALLIPER WITH PADS	315563 FRONT LH CALLIPER WITH PADS Red	$3,524.35	1
1	315557	FRONT LH CALLIPER WITH PADS	315557 FRONT LH CALLIPER WITH PADS Anodised black	$3,377.24	1
1	315561	FRONT LH CALLIPER WITH PADS	315561 FRONT LH CALLIPER WITH PADS Black	$3,439.24	1
1	315571	FRONT LH CALLIPER WITH PADS	315571 FRONT LH CALLIPER WITH PADS Dark grey	$3,998.48	1
1	315564	FRONT RH CALLIPER WITH PADS	315564 FRONT RH CALLIPER WITH PADS Red	$3,524.35	1
1	315574	FRONT RH CALLIPER WITH PADS	315574 FRONT RH CALLIPER WITH PADS Gold	$3,639.84	1
1	315576	FRONT RH CALLIPER WITH PADS	315576 FRONT RH CALLIPER WITH PADS Blue	$4,004.56	1
1	315572	FRONT RH CALLIPER WITH PADS	315572 FRONT RH CALLIPER WITH PADS Dark grey	$3,998.48	1
1	315570	FRONT RH CALLIPER WITH PADS	315570 FRONT RH CALLIPER WITH PADS Silver	$3,639.84	1
1	315568	FRONT RH CALLIPER WITH PADS	315568 FRONT RH CALLIPER WITH PADS Yellow	$3,834.36	1
1	315566	FRONT RH CALLIPER WITH PADS	315566 FRONT RH CALLIPER WITH PADS Scuderia Red	$3,639.84	1
1	315559	FRONT RH CALLIPER WITH PADS	315559 FRONT RH CALLIPER WITH PADS Anodised black	$3,377.24	1
1	315562	FRONT RH CALLIPER WITH PADS	315562 FRONT RH CALLIPER WITH PADS Black	$3,439.24	1
2	195167	SCREW	195167 SCREW M12 X 1.5 X 95	$19.69	4
3	254601	BRAKE PIPE FROM CALIPER TO LH HOSE	254601 BRAKE PIPE FROM CALIPER TO LH HOSE	$44.91	1
3	254603	BRAKE PIPE FROM CALIPER TO RH HOSE	254603 BRAKE PIPE FROM CALIPER TO RH HOSE	$46.52	1
4	116374	CLIP	116374 CLIP	$2.51 MSRP: ~~3.50~~ (28.3% off)	2
5	777000	BRAKE HOSE	777000 BRAKE HOSE	$67.38	2
6	10440890	BRACKET WITH SHEATH	10440890 BRACKET WITH SHEATH	$0.55	2
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
8	70002035	FRONT BRAKE PAD SET WITH SPRING	70002035 FRONT BRAKE PAD SET WITH SPRING	$1,445.92 MSRP: ~~2,115.90~~ (31.7% off)	1
9	215665	BLEED SCREW	215665 BLEED SCREW	$51.59	4
10	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	$33.68 MSRP: ~~44.54~~ (24.4% off)	4
11	198014	SCREW	198014 SCREW	$10.96	2
12	263210	TIE-ROD	263210 TIE-ROD	$50.15	2
