COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM of Ferrari Ferrari GTC4Lusso T

View All

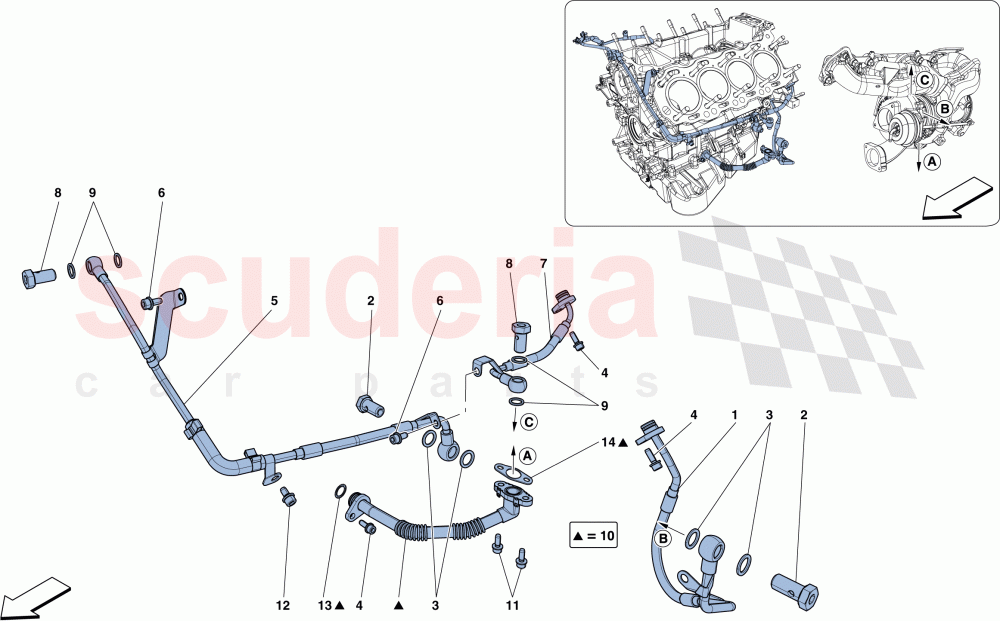

Ferrari GTC4Lusso T - COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	307669	WATER DELIVERY PIPE TO LH TURBO	Enquire	To Order
	307668	WATER DELIVERY PIPE TO RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297184	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303509	WATER RETURN PIPE FROM RH TURBO	Enquire	To Order
	297747	WATER RETURN PIPE FROM LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306837	OIL DELIVERY PIPE TO LH TURBO	Enquire	To Order
	297862	OIL DELIVERY PIPE TO RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297185	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297864	OIL RETURN PIPE FROM RH TURBO	Enquire	To Order
	306347	OIL RETURN PIPE FROM LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order
	282406	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287722	O-RING 15.08 x 2.62	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271457	OIL DRAIN PIPE GASKET	Enquire	To Order
	295801	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	307669	WATER DELIVERY PIPE TO LH TURBO	307669 WATER DELIVERY PIPE TO LH TURBO	-	1	Enquire
1	307668	WATER DELIVERY PIPE TO RH TURBO	307668 WATER DELIVERY PIPE TO RH TURBO	-	1	Enquire
2	297184	HOSE CONNECTOR	297184 HOSE CONNECTOR	-	4	Enquire
3	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5 Also comes with engine gasket set	-	8	Enquire
4	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	6	Enquire
5	303509	WATER RETURN PIPE FROM RH TURBO	303509 WATER RETURN PIPE FROM RH TURBO	-	1	Enquire
5	297747	WATER RETURN PIPE FROM LH TURBO	297747 WATER RETURN PIPE FROM LH TURBO	-	1	Enquire
6	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
7	306837	OIL DELIVERY PIPE TO LH TURBO	306837 OIL DELIVERY PIPE TO LH TURBO	-	1	Enquire
7	297862	OIL DELIVERY PIPE TO RH TURBO	297862 OIL DELIVERY PIPE TO RH TURBO	-	1	Enquire
8	297185	HOSE CONNECTOR	297185 HOSE CONNECTOR	-	4	Enquire
9	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5 Also comes with engine gasket set	-	8	Enquire
10	297864	OIL RETURN PIPE FROM RH TURBO	297864 OIL RETURN PIPE FROM RH TURBO	-	1	Enquire
10	306347	OIL RETURN PIPE FROM LH TURBO	306347 OIL RETURN PIPE FROM LH TURBO	-	1	Enquire
11	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM Fastening to LH turbo	-	2	Enquire
11	231620	SCREW	231620 SCREW M6 X 25; Fastening to RH turbo	-	2	Enquire
12	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12; Fastening LH return pipe	-	1	Enquire
12	282406	SCREW	282406 SCREW Fastening RH return pipe	-	1	Enquire
13	287722	O-RING 15.08 x 2.62	287722 O-RING 15.08 x 2.62	-	2	Enquire
14	271457	OIL DRAIN PIPE GASKET	271457 OIL DRAIN PIPE GASKET Applicable for pipe 306347	-	1	Enquire
14	295801	GASKET	295801 GASKET Applicable for pipe 297864	-	1	Enquire
