Ferrari GTC4Lusso T - FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
273540 COMPL. INCLINATION SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
282784 FUEL PUMP FILTER Enquire To Order
Photo Part No Description Price (each) Stock
282785 FUEL PUMP FILTER Enquire To Order
Photo Part No Description Price (each) Stock
275998 FASTENER RING Enquire To Order
Photo Part No Description Price (each) Stock
239413 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
275314 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
13046011 NUT Enquire To Order
Photo Part No Description Price (each) Stock
272086 FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
272087 LH FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
336395 LOWER CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
329074 FUEL DELIVERY PIPE, FRONT SECTION Enquire To Order
Photo Part No Description Price (each) Stock
329075 LOW PRESSURE FUEL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
198253 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
270767 LOWER PIPE SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
14622387 CAP Enquire To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW Enquire To Order
Photo Part No Description Price (each) Stock
313045 LOWER PIPE HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
13046011 NUT Enquire To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW Enquire To Order
Photo Part No Description Price (each) Stock
257886 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
16286121 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
235682 PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
285160 FUEL DELIVERY PIPE, REAR SECTION Enquire To Order
Photo Part No Description Price (each) Stock
271937 FUEL DELIVERY PIPE, CENTRE SECTION Enquire To Order
Photo Part No Description Price (each) Stock
281598 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
177553 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
276001 FASTENER RING Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11001124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
303789 RH FUEL PIPE FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
301717 LH FUEL PIPE FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
204777 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
212671 SPACER CLIP FOR 2 PIPES D10-D16 Enquire To Order
Photo Part No Description Price (each) Stock
296614 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
304212 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13604015 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14040614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
View All

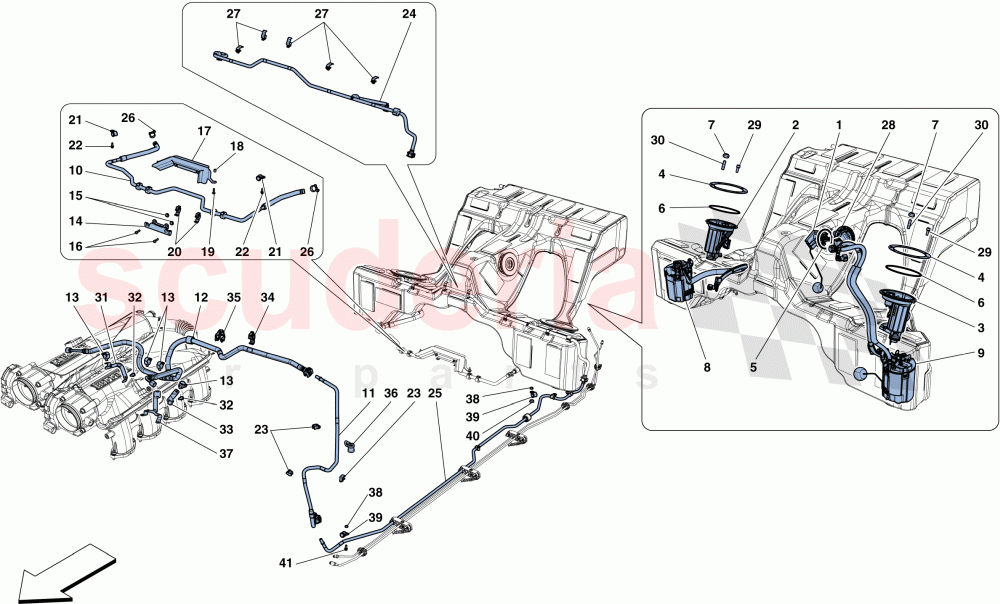

FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 273540
COMPL. INCLINATION SENSOR 		- 1 Enquire
2 282784
FUEL PUMP FILTER 		- 1 Enquire
3 282785
FUEL PUMP FILTER 		- 1 Enquire
4 275998
FASTENER RING 		- 2 Enquire
5 239413
O-RING 		- 1 Enquire
6 275314
O-RING 		- 2 Enquire
7 13046011
NUT 		- 2 Enquire
8 272086
FUEL PUMP 		- 1 Enquire
9 272087
LH FUEL PUMP 		- 1 Enquire
10 336395
LOWER CONNECTOR PIPE 		- 1 Enquire
11 329074
FUEL DELIVERY PIPE, FRONT SECTION 		- 1 Enquire
12 329075
LOW PRESSURE FUEL PIPE 		- 1 Enquire
13 198253
CLIP 		- 4 Enquire
14 270767
LOWER PIPE SHIELD 		- 1 Enquire
15 14622387
CAP 		- 2 Enquire
16 88831000
GRUB SCREW
M5 X 20 		- 2 Enquire
17 313045
LOWER PIPE HEAT SHIELD 		- 1 Enquire
18 13046011
NUT 		- 2 Enquire
19 88831000
GRUB SCREW
M5 X 20 		- 2 Enquire
20 257886
CLIP 		- 2 Enquire
21 10441290
BRACKET WITH SHEATH 		- 2 Enquire
22 16286121
SCREW
M6 X 18 		- 2 Enquire
23 235682
PIPE CLIP 		- 4 Enquire
24 285160
FUEL DELIVERY PIPE, REAR SECTION 		- 1 Enquire
25 271937
FUEL DELIVERY PIPE, CENTRE SECTION 		- 1 Enquire
26 281598
COLLAR 		- 2 Enquire
27 177553
CLAMP 		- 5 Enquire
28 276001
FASTENER RING 		- 1 Enquire
29 85833700
SCREW
M5 X 16 		- 20 Enquire
30 11001124
STUD BOLT 		- 2 Enquire
31 303789
RH FUEL PIPE FASTENER BRACKET 		- 1 Enquire
32 248334
SCREW M6 X 14MM
M6 X 14 		- 2 Enquire
33 301717
LH FUEL PIPE FASTENER BRACKET 		- 1 Enquire
34 204777
CLIP 		- 1 Enquire
35 212671
SPACER CLIP FOR 2 PIPES D10-D16 		- 1 Enquire
36 296614
BRACKET WITH SHEATH 		- 1 Enquire
37 304212
BRACKET 		- 1 Enquire
38 13604015
SPACER 		- 3 Enquire
39 10441290
BRACKET WITH SHEATH
D. 10 		- 3 Enquire
40 14040614
NUT 		- 2 Enquire
41 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 22 		- 1 Enquire
