Ferrari GTC4Lusso T - WHEELS

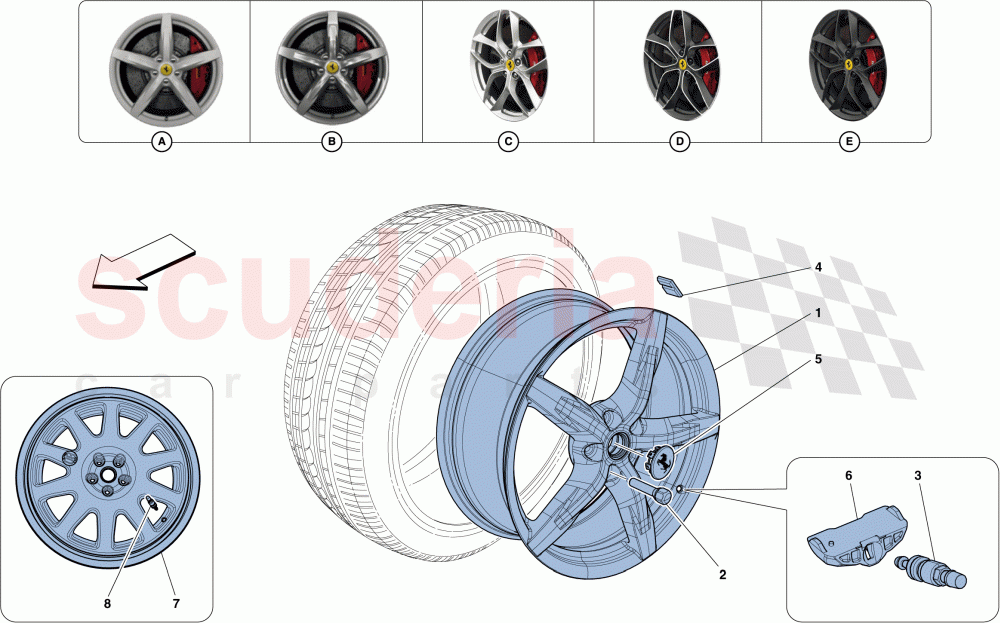

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	327113	REAR WHEEL	Enquire	To Order
	327109	REAR WHEEL	Enquire	To Order
	327806	REAR WHEEL	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70006039	WHEEL STUD BOLT KIT	Enquire	To Order
	803384	WHEEL STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185328	Valve - Tyre Pressure Monitoring System	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11096693	ADHESIVE WHEEL BALANCER WEIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340066	Wheel Centre Cap Prancing Horse	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314818	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	To Order
	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240241	SPARE WHEEL RIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317250104	VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	327113	REAR WHEEL	327113 REAR WHEEL 10.5J X 20"; Forged, diamond cut; See box D; Modis code RSFD	-	2	Enquire
1	327109	REAR WHEEL	327109 REAR WHEEL 10.5J X 20"; Forged painted matt Corsa grey; See box E; Modis code RIFS	-	2	Enquire
1	327806	REAR WHEEL	327806 REAR WHEEL 10.5J X 20"; Cast, chrome paint finish; See box B; Modis code RICS	-	2	Enquire
1	327800	REAR WHEEL	327800 REAR WHEEL 10.5J X 20"; Forged, chrome paint finish; See box C; Modis code RMSV	-	2	Enquire
1	327112	FRONT WHEEL	327112 FRONT WHEEL 8.5J X 20"; Forged, diamond cut; See box D; Modis code RSFD	-	2	Enquire
1	327108	FRONT WHEEL	327108 FRONT WHEEL 8.5J X 20"; Forged painted matt Corsa grey; See box E; Modis code RIFS	-	2	Enquire
1	328467	REAR WHEEL	328467 REAR WHEEL 10.5J X 20"; Cast, matte silver paint finish; See box A; Modis code STANDARD	-	2	Enquire
1	328466	FRONT WHEEL	328466 FRONT WHEEL 8.5J X 20"; Cast, matte silver paint finish; See box A; Modis code STANDARD	-	2	Enquire
1	327805	FRONT WHEEL	327805 FRONT WHEEL 8.5J X 20"; Cast, chrome paint finish; See box B; Modis code RICS	-	2	Enquire
1	327799	FRONT WHEEL	327799 FRONT WHEEL 8.5J X 20"; Forged, chrome paint finish; See box C; Modis code RMSV	-	2	Enquire
2	70006039	WHEEL STUD BOLT KIT	70006039 WHEEL STUD BOLT KIT Applicable up to Ass. No. 155616	-	1	Enquire
2	803384	WHEEL STUD BOLT	803384 WHEEL STUD BOLT Applicable from Ass. No. 155617	-	20	Enquire
3	185328	Valve - Tyre Pressure Monitoring System	185328 Valve - Tyre Pressure Monitoring System	-	4	Enquire
4	11096693	ADHESIVE WHEEL BALANCER WEIGHT	11096693 ADHESIVE WHEEL BALANCER WEIGHT	-	-	Enquire
5	340066	Wheel Centre Cap Prancing Horse	340066 Wheel Centre Cap Prancing Horse	-	4	Enquire
6	314818	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	314818 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Not for J	-	4	Enquire
6	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	314821 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Applicable for J	-	4	Enquire
7	240241	SPARE WHEEL RIM	240241 SPARE WHEEL RIM 4.5J X 20"	-	1	Enquire
8	317250104	VALVE	317250104 VALVE	-	1	Enquire
