Name: COOLING - HEADER TANK AND PIPES
Rating: 5.0 (1 reviews)

View All

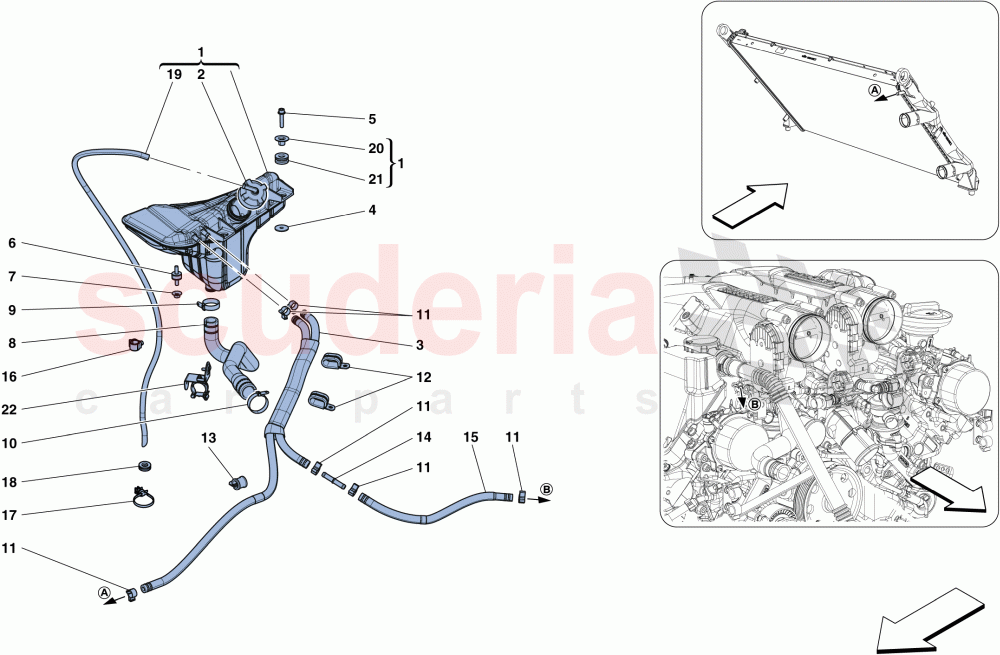

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	305322	HEADER TANK COOLING SYSTEM	$149.21	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	334917	HEADER PIPE COMPL. WITH SHEATH	$103.20	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	267798	BUSH	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	334540	COOLING SYSTEM HEADER TANK PIPE	$45.85	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	253512	BRACKET	$8.70	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	323307	2-WAY CONNECTOR	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	340102	RUBBER PIPE	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	279762	CLAMP	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	10397380	CABLE GROMMET	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	305321	RUBBER PIPE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	286491	SPACER	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	286492	CABLE GROMMET	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	334539	PIPE MOUNTING BRACKET	$40.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	305322	HEADER TANK COOLING SYSTEM	305322 HEADER TANK COOLING SYSTEM	$149.21 MSRP: ~~178.78~~ (16.5% off)	1
2	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	$320.90	1
3	334917	HEADER PIPE COMPL. WITH SHEATH	334917 HEADER PIPE COMPL. WITH SHEATH	$103.20	1
4	12648925	WASHER	12648925 WASHER	$0.39	2
5	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	2
6	267798	BUSH	267798 BUSH	$10.10	1
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
8	334540	COOLING SYSTEM HEADER TANK PIPE	334540 COOLING SYSTEM HEADER TANK PIPE	$45.85	1
9	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
10	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
11	13126970	COLLAR	13126970 COLLAR	$1.56	6
12	253512	BRACKET	253512 BRACKET	$8.70	2
13	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	3
14	323307	2-WAY CONNECTOR	323307 2-WAY CONNECTOR	$38.69	1
15	340102	RUBBER PIPE	340102 RUBBER PIPE	$34.38	1
16	198253	CLIP	198253 CLIP	$3.71 MSRP: ~~3.85~~ (3.6% off)	1
17	279762	CLAMP	279762 CLAMP	$0.50	1
18	10397380	CABLE GROMMET	10397380 CABLE GROMMET No longer supplied	$1.54	1
19	305321	RUBBER PIPE	305321 RUBBER PIPE	$72.19	1
20	286491	SPACER	286491 SPACER	$43.31	2
21	286492	CABLE GROMMET	286492 CABLE GROMMET	$43.31	2
22	334539	PIPE MOUNTING BRACKET	334539 PIPE MOUNTING BRACKET	$40.11	1
