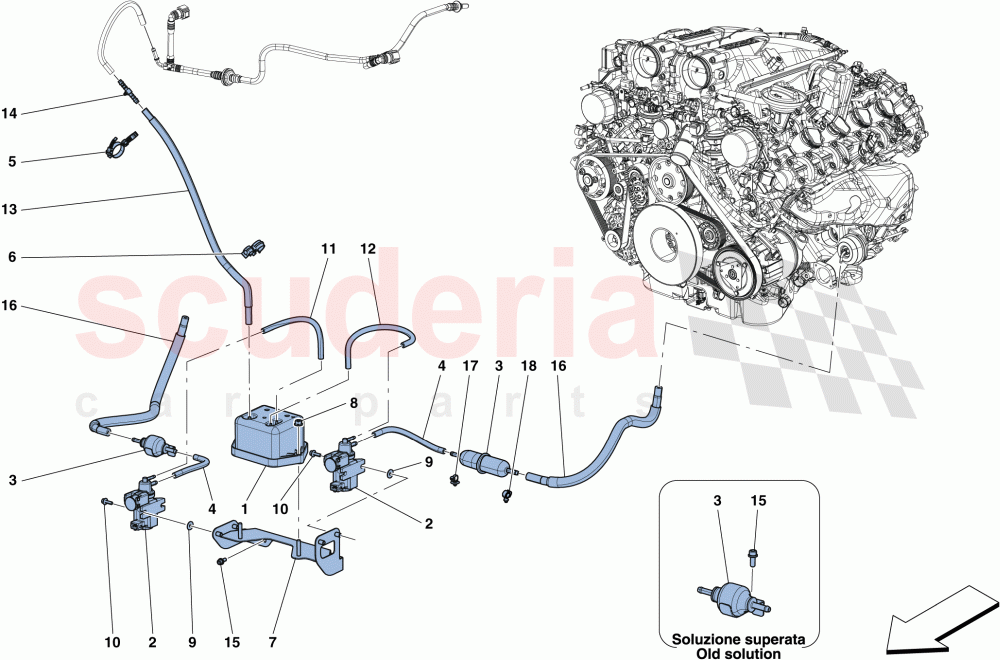

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329914	VACUUM ACCUMULATOR TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316062	MODULATOR SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300549	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306692	CLIP SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337973	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333070	TANK AND SOLENOID VAlVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308147	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333092	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338216	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340258	T UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340610	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808421	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316888	CLIP	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	329914	VACUUM ACCUMULATOR TANK	329914 VACUUM ACCUMULATOR TANK	-	1	Enquire
2	316062	MODULATOR SOLENOID VALVE	316062 MODULATOR SOLENOID VALVE	-	2	Enquire
4	300549	RUBBER PIPE	300549 RUBBER PIPE	-	2	Enquire
5	306692	CLIP SET	306692 CLIP SET	-	1	Enquire
6	337973	CLIP	337973 CLIP	-	1	Enquire
7	333070	TANK AND SOLENOID VAlVE MOUNTING BRACKET	333070 TANK AND SOLENOID VAlVE MOUNTING BRACKET	-	1	Enquire
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
9	13577724	WASHER	13577724 WASHER	-	4	Enquire
10	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
11	308147	RUBBER PIPE	308147 RUBBER PIPE	-	1	Enquire
12	333092	RUBBER PIPE	333092 RUBBER PIPE	-	1	Enquire
13	338216	RUBBER PIPE	338216 RUBBER PIPE	-	1	Enquire
14	340258	T UNION	340258 T UNION	-	1	Enquire
15	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM Fastener for aluminium cylinder	-	2	Enquire
16	340610	RUBBER PIPE	340610 RUBBER PIPE	-	2	Enquire
17	808421	CLIP	808421 CLIP Fastener for plastic cylinder	-	2	Enquire
18	316888	CLIP	316888 CLIP Fastener for plastic cylinder	-	2	Enquire
