HYDRAULIC POWER STEERING BOX of Ferrari Ferrari GTC4Lusso T

View All

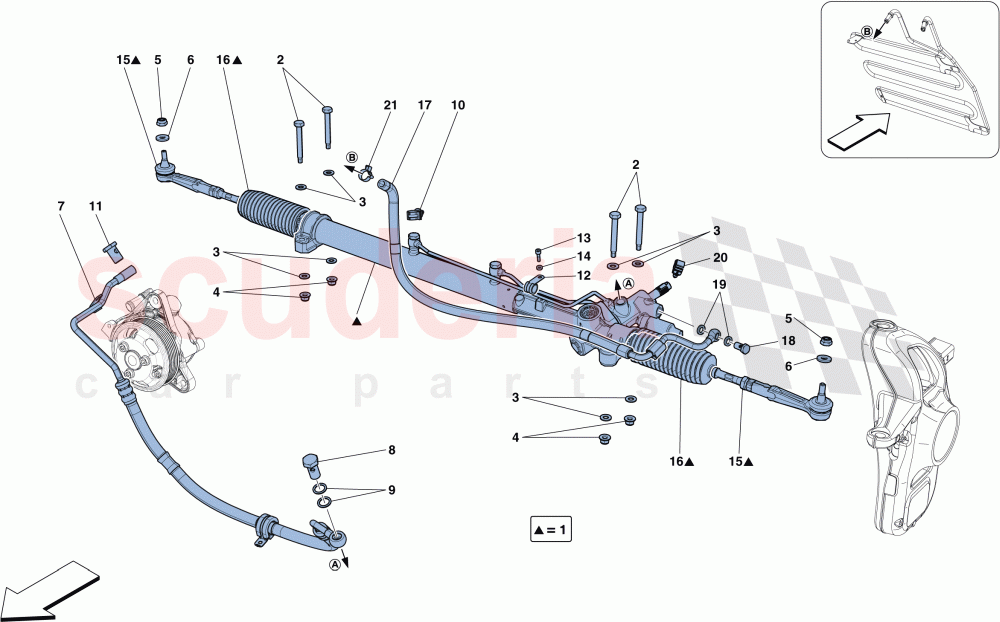

Ferrari GTC4Lusso T - HYDRAULIC POWER STEERING BOX

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	256225	STEERING BOX	Enquire	To Order
	267116	STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323250	PIPE FROM PUMP TO STEERING BOX	Enquire	To Order
	340311	PIPE FROM PUMP TO STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276087	FUEL FILLER NECK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239094	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245041	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305724	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250196	ROD END FOR STEERING BOX	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	229521	STEERING BOX GAITER REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340312	PIPE FROM STEERING BOX TO COIL	Enquire	To Order
	323251	PIPE FROM STEERING BOX TO COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	256225	STEERING BOX	256225 STEERING BOX Not for GD	-	1	Enquire
1	267116	STEERING BOX	267116 STEERING BOX Applicable for GD	-	1	Enquire
2	277720	SCREW	277720 SCREW M10 X 1.25 X 80	-	4	Enquire
3	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	8	Enquire
4	14058621	NUT	14058621 NUT	-	4	Enquire
5	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
6	12626224	WASHER	12626224 WASHER	-	2	Enquire
7	323250	PIPE FROM PUMP TO STEERING BOX	323250 PIPE FROM PUMP TO STEERING BOX Not for GD	-	1	Enquire
7	340311	PIPE FROM PUMP TO STEERING BOX	340311 PIPE FROM PUMP TO STEERING BOX Applicable for GD	-	1	Enquire
8	276087	FUEL FILLER NECK PIPE	276087 FUEL FILLER NECK PIPE	-	1	Enquire
9	10261460	GASKET	10261460 GASKET	-	2	Enquire
10	239094	CLIP	239094 CLIP	-	1	Enquire
11	245041	HOSE	245041 HOSE	-	1	Enquire
12	305724	BRACKET WITH SHEATH	305724 BRACKET WITH SHEATH Not for GD	-	1	Enquire
13	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 10; Not for GD ARRIVING SOON	-	1	Enquire
14	11181574	WASHER	11181574 WASHER Not for GD	-	1	Enquire
15	250196	ROD END FOR STEERING BOX ARRIVING SOON	250196 ROD END FOR STEERING BOX ARRIVING SOON	-	2	Enquire
16	229521	STEERING BOX GAITER REPLACEMENT KIT	229521 STEERING BOX GAITER REPLACEMENT KIT	-	1	Enquire
17	340312	PIPE FROM STEERING BOX TO COIL	340312 PIPE FROM STEERING BOX TO COIL Applicable for GD	-	1	Enquire
17	323251	PIPE FROM STEERING BOX TO COIL	323251 PIPE FROM STEERING BOX TO COIL Not for GD	-	1	Enquire
18	277407	HOSE CONNECTOR	277407 HOSE CONNECTOR	-	1	Enquire
19	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5 Also comes with engine gasket set	-	2	Enquire
20	259508	CLIP	259508 CLIP	-	1	Enquire
21	13127070	COLLAR	13127070 COLLAR	-	1	Enquire
