TRANSMISSION HOUSING of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - TRANSMISSION HOUSING

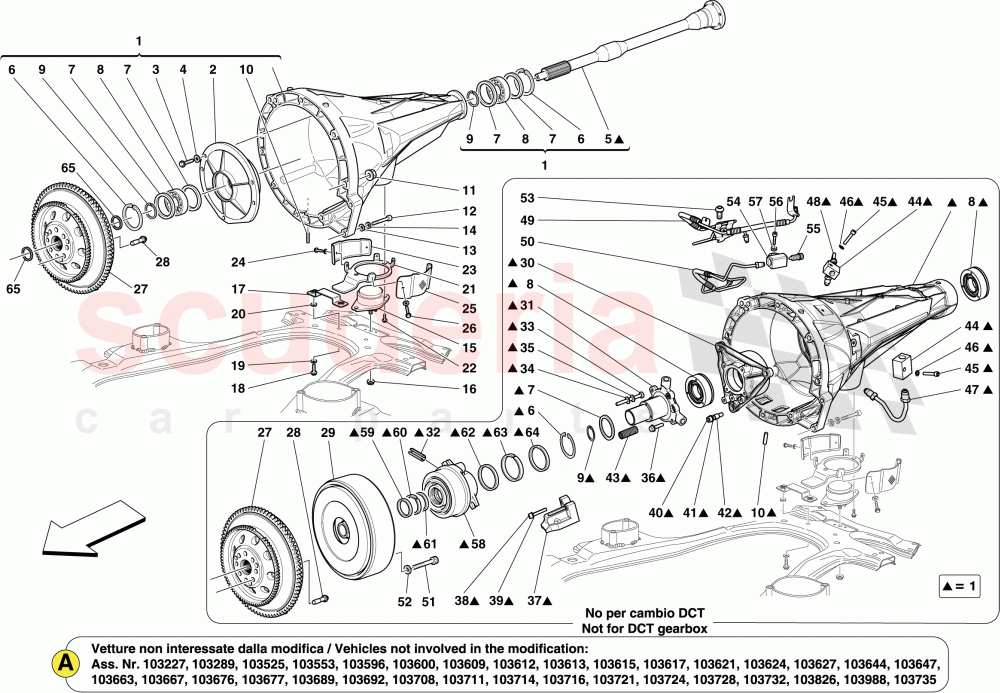

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	260416	COMPL. TRANSMISSION HOUSING	$25,730.30	To Order
	269701	COMPL. TRANSMISSION HOUSING	$4,132.34	To Order

Photo	Part No	Description	Price (each)	Stock
	251921	TRANSMISSION HOUSING FLANGE	$577.64	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	254309	TRANSMISSION HOUSING SHAFT	$7,171.57	To Order

Photo	Part No	Description	Price (each)	Stock
	11062474	SNAP RING	$5.36	To Order

Photo	Part No	Description	Price (each)	Stock
	253627	RING	$258.00	To Order
	253627	RING	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	253629	COMPLETE BEARING	$608.81	To Order

Photo	Part No	Description	Price (each)	Stock
	11068874	SEEGER RING	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$6.95	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	177018	NUT	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	242080	BRACKET	$42.98	To Order
	277524	BUSHING TRAVEL STOP BRACKET	$45.85	To Order

Photo	Part No	Description	Price (each)	Stock
	15970724	SCREW	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	269406	BRACKET	$77.00	To Order
	277682	BRACKET	$116.10	To Order
	249048	BRACKET	$81.82	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	246930	R.H. SHIELD FOR PAD	$41.70	To Order
	295117	RH TRANSMISSION HOUSING BUSHING HEAT SHIELD	$53.02	To Order

Photo	Part No	Description	Price (each)	Stock
	13833224	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	246931	L.H. SHIELD FOR PAD	$41.70	To Order
	295118	LH TRANSMISSION HOUSING BUSHING HEAT SHIELD	$53.02	To Order

Photo	Part No	Description	Price (each)	Stock
	13833224	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	259577	ENGINE DAMPER FLYWHEEL	$10,545.40	To Order

Photo	Part No	Description	Price (each)	Stock
	229907	SCREW	$9.21	To Order
	201502	SCREW	$8.31	To Order

Photo	Part No	Description	Price (each)	Stock
	228738	CLUTCH	$2,693.65	To Order

Photo	Part No	Description	Price (each)	Stock
	253040	MOUNTING FOR THRUST BEARING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

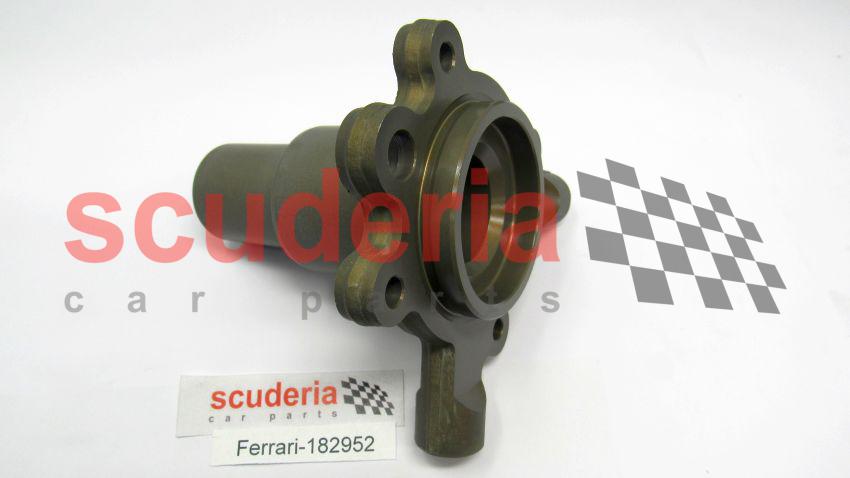

	182952	FLANGE FOR HYDRAULIC CONTROL	$1,094.13	To Order

Photo	Part No	Description	Price (each)	Stock
	14604170	SPRING PIN	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	182955	STUD BOLT	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	207447	SENSOR MOUNT	$159.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock

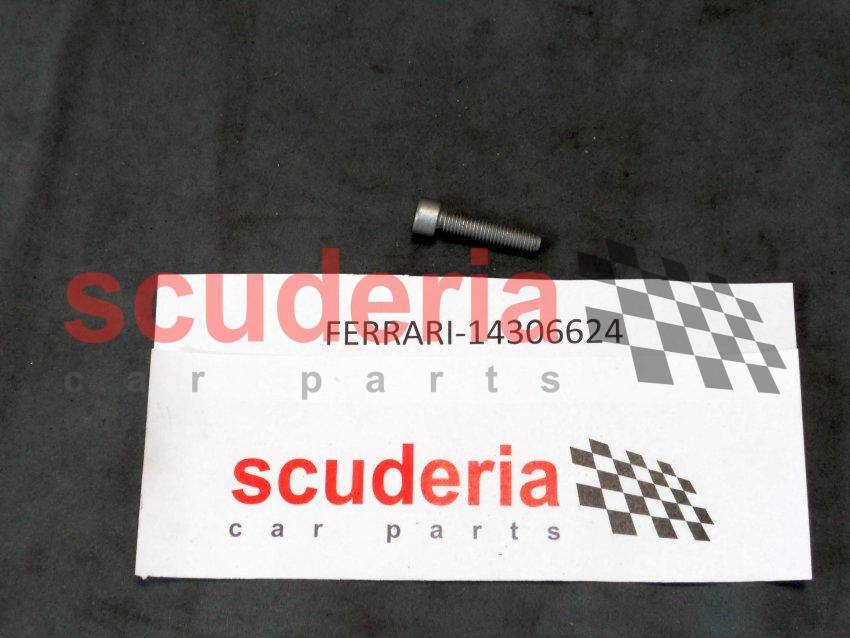

	14306624	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	155207	Pre-Tightening Springs	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	234615	CLUTCH OIL DELIVERY BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	250234	DELIVERY PIPE FOR CLUTCH CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263469	CLUTCH CONTROL PIPE	Enquire	To Order
	263449	CLUTCH CONTROL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256597	BLEED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216771	SCREW M6 X 75 TCEI	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	249922	UNION	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	$6.37	To Order

Photo	Part No	Description	Price (each)	Stock

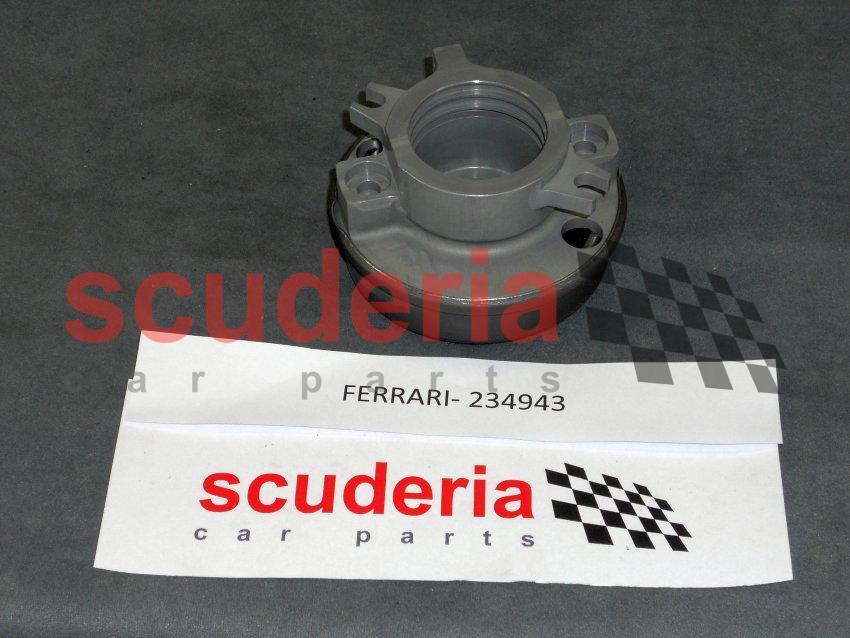

	234943	Thrust Bearing	$1,203.43	To Order

Photo	Part No	Description	Price (each)	Stock
	172970	Scraper Ring	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	208014	Ring	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	172972	Seal Ring	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	154508	Sealing Ring 44mm	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	154507	Ring	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	154551	Scrapper Ring	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	282966	GASKET	$4.59	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	260416	COMPL. TRANSMISSION HOUSING	260416 COMPL. TRANSMISSION HOUSING Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$25,730.30	1
1	269701	COMPL. TRANSMISSION HOUSING	269701 COMPL. TRANSMISSION HOUSING Also order bracket ref. 21 part No. 269406; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	$4,132.34	1
2	251921	TRANSMISSION HOUSING FLANGE	251921 TRANSMISSION HOUSING FLANGE Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	$577.64	1
3	14306424	SCREW	14306424 SCREW Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	$0.24 MSRP: ~~0.41~~ (41.5% off)	3
4	12638524	WASHER	12638524 WASHER Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	$0.06 MSRP: ~~0.25~~ (76% off)	3
5	254309	TRANSMISSION HOUSING SHAFT	254309 TRANSMISSION HOUSING SHAFT Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$7,171.57	1
6	11062474	SNAP RING	11062474 SNAP RING	$5.36	2
7	253627	RING	253627 RING Applicable for Mechanical gearbox	$258.00	2
7	253627	RING	253627 RING Not for Mechanical gearbox	$258.00	4
8	253629	COMPLETE BEARING	253629 COMPLETE BEARING	$608.81	2
9	11068874	SEEGER RING	11068874 SEEGER RING	$15.66	2
10	13543124	STUD BOLT	13543124 STUD BOLT	$6.95	2
11	14059421	NUT	14059421 NUT	$0.52	8
12	14309024	SCREW	14309024 SCREW	$1.46	3
13	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	3
14	12638524	WASHER	12638524 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	3
16	177018	NUT	177018 NUT	$1.26	1
17	242080	BRACKET	242080 BRACKET Applicable up to engine No. 103178	$42.98	1
17	277524	BUSHING TRAVEL STOP BRACKET	277524 BUSHING TRAVEL STOP BRACKET not affected by modification; Applicable from engine No. 103179	$45.85	1
18	15970724	SCREW	15970724 SCREW	$0.57	2
19	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	2
20	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	2
21	269406	BRACKET	269406 BRACKET Applicable up to Ass. No. 103178; Applicable from engine No. 167395	$77.00	1
21	277682	BRACKET	277682 BRACKET not affected by modification; Applicable from Ass. No. 103179	$116.10	1
21	249048	BRACKET	249048 BRACKET Applicable up to engine No. 167394	$81.82	1
22	18754324	SCREW	18754324 SCREW	$1.56	2
23	246930	R.H. SHIELD FOR PAD	246930 R.H. SHIELD FOR PAD Applicable up to Ass. No. 103178	$41.70	1
23	295117	RH TRANSMISSION HOUSING BUSHING HEAT SHIELD	295117 RH TRANSMISSION HOUSING BUSHING HEAT SHIELD not affected by modification; Applicable from Ass. No. 103179	$53.02	1
24	13833224	SCREW	13833224 SCREW	$0.19	2
25	246931	L.H. SHIELD FOR PAD	246931 L.H. SHIELD FOR PAD Applicable up to Ass. No. 103178	$41.70	1
25	295118	LH TRANSMISSION HOUSING BUSHING HEAT SHIELD	295118 LH TRANSMISSION HOUSING BUSHING HEAT SHIELD not affected by modification; Applicable from Ass. No. 103179	$53.02	1
26	13833224	SCREW	13833224 SCREW	$0.19	2
27	259577	ENGINE DAMPER FLYWHEEL	259577 ENGINE DAMPER FLYWHEEL Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$10,545.40	1
28	229907	SCREW	229907 SCREW Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	$9.21	8
28	201502	SCREW	201502 SCREW Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$8.31	8
29	228738	CLUTCH	228738 CLUTCH Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$2,693.65	1
30	253040	MOUNTING FOR THRUST BEARING FLANGE	253040 MOUNTING FOR THRUST BEARING FLANGE Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
31	182952	FLANGE FOR HYDRAULIC CONTROL	182952 FLANGE FOR HYDRAULIC CONTROL Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$1,094.13 MSRP: ~~1,385.58~~ (21% off)	1
32	14604170	SPRING PIN	14604170 SPRING PIN	$0.44 MSRP: ~~0.75~~ (41.3% off)	1
33	182955	STUD BOLT	182955 STUD BOLT Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$32.08 MSRP: ~~45.00~~ (28.7% off)	2
34	10519424	WASHER	10519424 WASHER Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.02 MSRP: ~~0.25~~ (92% off)	2
35	11197774	WASHER	11197774 WASHER Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.06 MSRP: ~~0.30~~ (80% off)	2
36	231625	SCREW	231625 SCREW Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.65	2
37	207447	SENSOR MOUNT	207447 SENSOR MOUNT Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$159.10	1
38	14304424	SCREW	14304424 SCREW Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.19	2
39	62769800	WASHER	62769800 WASHER Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.23 MSRP: ~~0.30~~ (23.3% off)	2
40	14306624	SCREW	14306624 SCREW Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.29	3
41	12638524	WASHER	12638524 WASHER Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.06 MSRP: ~~0.25~~ (76% off)	3
42	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$3.13	2
43	155207	Pre-Tightening Springs	155207 Pre-Tightening Springs Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$9.00	2
44	234615	CLUTCH OIL DELIVERY BLOCK	234615 CLUTCH OIL DELIVERY BLOCK Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	2	Enquire
45	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	14305521 ALLEN SCREW SOCKET HEAD M6 X 30 Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.11	2
46	11197774	WASHER	11197774 WASHER Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.06 MSRP: ~~0.30~~ (80% off)	2
47	250234	DELIVERY PIPE FOR CLUTCH CONTROL	250234 DELIVERY PIPE FOR CLUTCH CONTROL Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
48	256681	BLEED PIPE	256681 BLEED PIPE Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
49	263469	CLUTCH CONTROL PIPE	263469 CLUTCH CONTROL PIPE Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD	-	1	Enquire
49	263449	CLUTCH CONTROL PIPE	263449 CLUTCH CONTROL PIPE Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD	-	1	Enquire
50	256597	BLEED PIPE	256597 BLEED PIPE Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
51	216771	SCREW M6 X 75 TCEI	216771 SCREW M6 X 75 TCEI Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$2.33	9
52	11194379	WASHER	11194379 WASHER Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$0.32 MSRP: ~~1.05~~ (69.5% off)	9
53	249922	UNION	249922 UNION Applicable for GD	$91.45	1
54	263519	2-WAY CONNECTOR	263519 2-WAY CONNECTOR Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
55	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	$6.37	1
56	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	14305521 ALLEN SCREW SOCKET HEAD M6 X 30	$0.11	1
57	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
58	234943	Thrust Bearing	234943 Thrust Bearing	$1,203.43	1
59	172970	Scraper Ring	172970 Scraper Ring	$24.05 MSRP: ~~25.16~~ (4.4% off)	1
60	208014	Ring	208014 Ring	$6.08 MSRP: ~~8.00~~ (24% off)	1
61	172972	Seal Ring	172972 Seal Ring	$24.05 MSRP: ~~25.22~~ (4.6% off)	1
62	154508	Sealing Ring 44mm	154508 Sealing Ring 44mm	$43.31 MSRP: ~~54.22~~ (20.1% off)	1
63	154507	Ring	154507 Ring	$4.18 MSRP: ~~5.05~~ (17.2% off)	1
64	154551	Scrapper Ring	154551 Scrapper Ring	$28.87 MSRP: ~~29.85~~ (3.3% off)	1
65	282966	GASKET	282966 GASKET Applicable for flywheel 285262 pos. 27; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from engine No. 181223	$4.59	2
