LEFT HAND CYLINDER HEAD of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - LEFT HAND CYLINDER HEAD

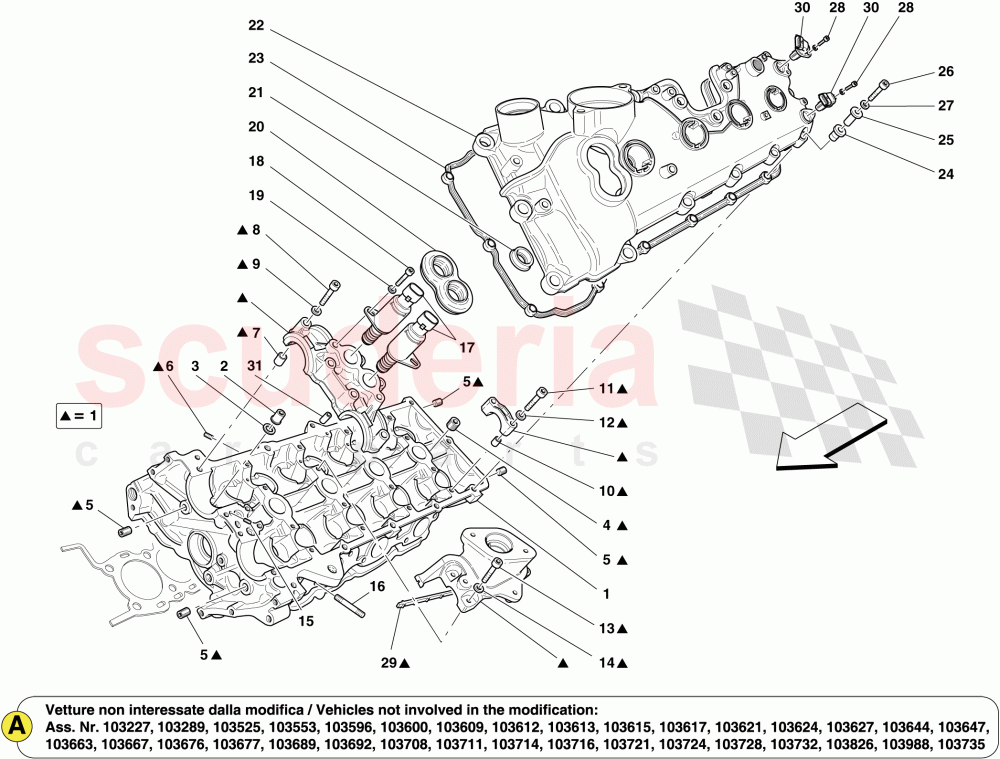

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	272045	COMPLETE LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243721	SCREW WITH WASHER	Enquire	To Order
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	Enquire	To Order
	226415	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296016	VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259947	LH HEAD COVER	Enquire	To Order
	259947	LH HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239180	LH Head Cover Gasket	Enquire	To Order
	264095	LH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203102	Rubber Bushing	Enquire	ARRIVING SOON
	239748	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261543	BUSHING	Enquire	To Order
	261544	BUSHING	Enquire	To Order
	261544	BUSHING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	239501	SCREW	Enquire	To Order
	239501	SCREW	Enquire	To Order
	239501	SCREW	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	NON RETURN VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	272045	COMPLETE LH HEAD	272045 COMPLETE LH HEAD For vehicles up to engine No. 189672 also order RH cylinder head 272044, bush 257217 tab.51 pos.18, bush 257220 tab.51 pos.17, bush 247088 tab. 50 pos.16 and screw 14308324 tab.51 ref.13	-	1	Enquire
2	321187	NUT	321187 NUT	-	10	Enquire
3	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	10	Enquire
4	282756	THREADED PLUG	282756 THREADED PLUG	-	5	Enquire
5	282755	THREADED PLUG	282755 THREADED PLUG	-	4	Enquire
6	199760	THREADED PLUG	199760 THREADED PLUG	-	4	Enquire
7	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
8	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER Applicable from engine No. 153469	-	6	Enquire
8	231624	SCREW	231624 SCREW Applicable up to engine No. 153468	-	6	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable up to engine No. 153468	-	6	Enquire
10	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
11	231622	SCREW	231622 SCREW Applicable up to engine No. 153468	-	12	Enquire
11	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 Applicable from engine No. 153469	-	12	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable up to engine No. 153468	-	12	Enquire
13	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 Applicable from engine No. 153469	-	4	Enquire
13	231622	SCREW	231622 SCREW Applicable up to engine No. 153468	-	4	Enquire
14	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable up to engine No. 153468	-	5	Enquire
15	256827	GRUB SCREW	256827 GRUB SCREW Applicable from engine No. 149384	-	2	Enquire
15	226415	DOWEL	226415 DOWEL Applicable up to engine No. 149383	-	2	Enquire
16	13543424	STUD BOLT	13543424 STUD BOLT	-	8	Enquire
17	296016	VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	296016 VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE With grease on connector	-	2	Enquire
18	14304124	SCREW	14304124 SCREW	-	2	Enquire
19	11181574	WASHER	11181574 WASHER	-	2	Enquire
20	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	-	1	Enquire
21	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	-	4	Enquire
22	259947	LH HEAD COVER	259947 LH HEAD COVER For vehicles up to engine No. 146192, also order: LH camshaft 250174 tab.5 pos.7, LH head cover 264095 pos. 23 and screw 156830 pos. 26	-	1	Enquire
22	259947	LH HEAD COVER	259947 LH HEAD COVER For vehicles up to engine No. 185627, also order: LH head cover 264095 pos.23 and screw 156830 pos.26	-	1	Enquire
23	239180	LH Head Cover Gasket	239180 LH Head Cover Gasket Applicable up to engine No. 185627	-	1	Enquire
23	264095	LH HEAD COVER GASKET	264095 LH HEAD COVER GASKET Applicable from engine No. 185628	-	1	Enquire
24	203102	Rubber Bushing ARRIVING SOON	203102 Rubber Bushing Applicable up to engine No. 185627 ARRIVING SOON	-	11	Enquire
24	239748	RUBBER BUSHING	239748 RUBBER BUSHING Applicable up to engine No. 185627	-	5	Enquire
25	261543	BUSHING	261543 BUSHING Applicable from engine No. 152970 up to engine No. 185627	-	11	Enquire
25	261544	BUSHING	261544 BUSHING Applicable up to engine No. 152969	-	5	Enquire
25	261544	BUSHING	261544 BUSHING Applicable from engine No. 152970 up to engine No. 185627	-	5	Enquire
25	228598	BUSHING	228598 BUSHING Applicable up to engine No. 152969	-	11	Enquire
26	239501	SCREW	239501 SCREW Replaces 250383; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
26	239501	SCREW	239501 SCREW	-	4	Enquire
26	239501	SCREW	239501 SCREW Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
26	213129	SCREW	213129 SCREW Applicable up to engine No. 185627	-	11	Enquire
26	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40 Applicable from engine No. 185628	-	11	Enquire
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	16	Enquire
28	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
29	239614	GASKET	239614 GASKET	-	1	Enquire
30	224573	TIMING SENSOR	224573 TIMING SENSOR	-	2	Enquire
31	200458	NON RETURN VALVE	200458 NON RETURN VALVE	-	2	Enquire
