ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR

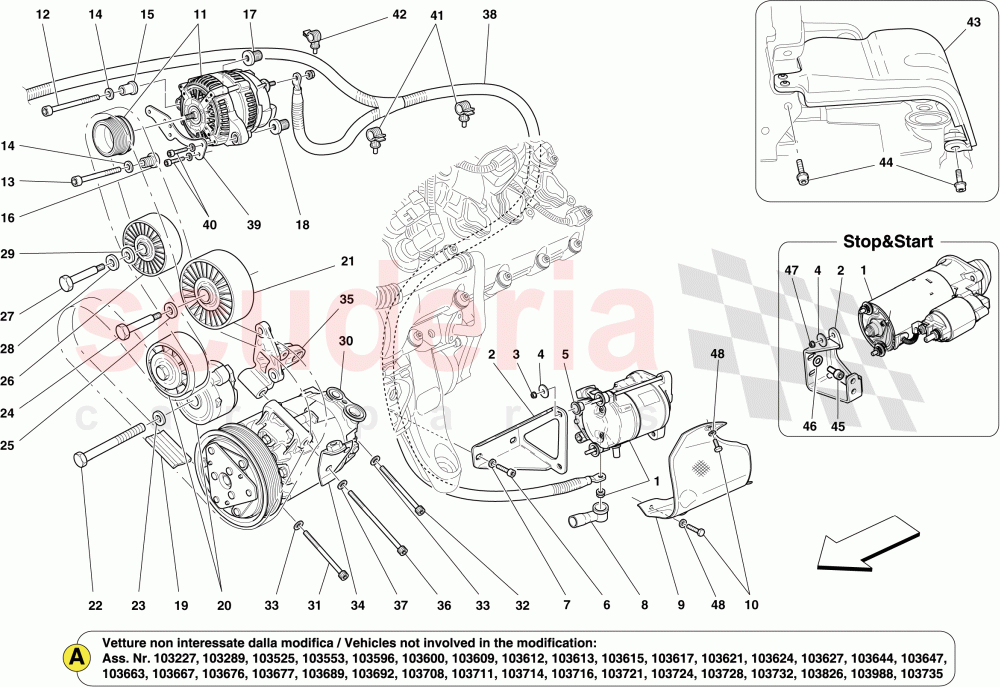

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	252087	STARTER MOTOR	Enquire	To Order
	962187	STARTER MOTOR	Enquire	To Order
	962187	STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277661	REAR STARTER MOTOR MOUNTING BRACKET	Enquire	To Order
	248066	BRACKET	Enquire	To Order
	277661	REAR STARTER MOTOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order
	11193274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215645	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124683	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251293	ANTI-HEAT SHIELD	Enquire	To Order
	287180	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66649300	SCREW	Enquire	To Order
	203135	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247088	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247088	THREADED BUSHING	Enquire	To Order
	253732	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247087	THREADED BUSHING	Enquire	To Order
	257220	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244781	THREADED BUSHING	Enquire	To Order
	257217	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250070	Compressor Control Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224178	BELT TIGHTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227894	BELT TIGHTENING PULLEY	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	268567	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11343821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226205	Belt Tightening Pulley	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267144	AIR CONDITIONING COMPRESSOR	Enquire	To Order
	267144	AIR CONDITIONING COMPRESSOR	Enquire	To Order
	267144	AIR CONDITIONING COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243936	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250238	OUTER SHIELD SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274851	SHIELD MOUNTING BRACKET ON CRANKCASE	Enquire	To Order
	279336	SHIELD MOUNTING BRACKET ON CRANKCASE	Enquire	To Order
	250239	CRANKCASE SHIELD SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246208	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11186374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262172	CABLE FROM ALTERNATOR TO STARTER MOTOR	Enquire	To Order
	256467	CABLE FROM ALTERNATOR TO STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247169	ALTERNATOR BRACKET STIFFENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222072	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246722	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279335	HEAT SHIELD	Enquire	To Order
	253024	ANTI-HEAT SHIELD	Enquire	To Order
	274850	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	252087	STARTER MOTOR	252087 STARTER MOTOR Not for HELE; Not for Stop & Start; Applicable up to Ass. No. 103178	-	1	Enquire
1	962187	STARTER MOTOR	962187 STARTER MOTOR Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	-	1	Enquire
1	962187	STARTER MOTOR	962187 STARTER MOTOR not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
2	277661	REAR STARTER MOTOR MOUNTING BRACKET	277661 REAR STARTER MOTOR MOUNTING BRACKET Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
2	248066	BRACKET	248066 BRACKET Not for HELE; Not for Stop & Start	-	1	Enquire
2	277661	REAR STARTER MOTOR MOUNTING BRACKET	277661 REAR STARTER MOTOR MOUNTING BRACKET Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	-	1	Enquire
3	15896470	NUT	15896470 NUT Not for HELE; Not for Stop & Start	-	2	Enquire
4	127493	WASHER	127493 WASHER Not for HELE; Not for Stop & Start	-	2	Enquire
4	11193274	WASHER	11193274 WASHER Applicable for HELE; Applicable for Stop & Start	-	2	Enquire
5	215645	SPACER BUSHING	215645 SPACER BUSHING Not for HELE; Not for Stop & Start	-	2	Enquire
6	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM Not for HELE; Not for Stop & Start	-	2	Enquire
7	14498824	WASHER	14498824 WASHER Not for HELE; Not for Stop & Start	-	2	Enquire
8	124683	PROTECTIVE CAP	124683 PROTECTIVE CAP Not for HELE; Not for Stop & Start	-	1	Enquire
9	251293	ANTI-HEAT SHIELD	251293 ANTI-HEAT SHIELD Not for HELE; Not for Stop & Start	-	1	Enquire
9	287180	HEAT SHIELD	287180 HEAT SHIELD Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
10	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20; Not for HELE; Not for Stop & Start	-	3	Enquire
10	231620	SCREW	231620 SCREW M6 X 25; Applicable for HELE; Applicable for Stop & Start	-	3	Enquire
12	14308724	SCREW	14308724 SCREW	-	1	Enquire
13	66649300	SCREW	66649300 SCREW not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
13	203135	SCREW WITH WASHER	203135 SCREW WITH WASHER Applicable up to Ass. No. 103178	-	1	Enquire
14	10569474	WASHER	10569474 WASHER	-	2	Enquire
15	247088	THREADED BUSHING	247088 THREADED BUSHING	-	1	Enquire
16	247088	THREADED BUSHING	247088 THREADED BUSHING Applicable from engine No. 189673	-	1	Enquire
16	253732	THREADED BUSHING	253732 THREADED BUSHING Applicable up to engine No. 189672	-	1	Enquire
17	247087	THREADED BUSHING	247087 THREADED BUSHING Applicable up to engine No. 189672	-	1	Enquire
17	257220	THREADED BUSHING	257220 THREADED BUSHING Applicable from engine No. 189673	-	1	Enquire
18	244781	THREADED BUSHING	244781 THREADED BUSHING Applicable up to engine No. 189672	-	1	Enquire
18	257217	THREADED BUSHING	257217 THREADED BUSHING Applicable from engine No. 189673	-	1	Enquire
19	250070	Compressor Control Belt	250070 Compressor Control Belt	-	1	Enquire
20	224178	BELT TIGHTENER	224178 BELT TIGHTENER	-	1	Enquire
21	227894	BELT TIGHTENING PULLEY ARRIVING SOON	227894 BELT TIGHTENING PULLEY ARRIVING SOON	-	1	Enquire
22	268567	SCREW	268567 SCREW	-	1	Enquire
23	11193874	WASHER	11193874 WASHER	-	1	Enquire
24	11343821	SCREW	11343821 SCREW M10 X 1.25 X 50	-	1	Enquire
25	10569474	WASHER	10569474 WASHER	-	1	Enquire
26	226205	Belt Tightening Pulley	226205 Belt Tightening Pulley	-	1	Enquire
27	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	1	Enquire
28	12642078	WASHER	12642078 WASHER	-	1	Enquire
29	12647021	WASHER	12647021 WASHER	-	1	Enquire
30	267144	AIR CONDITIONING COMPRESSOR	267144 AIR CONDITIONING COMPRESSOR Applicable for HELE; Applicable for Stop & Start; Applicable for Soft Start (from MY 11); Applicable for USA, CDN, USA LIGHT	-	1	Enquire
30	267144	AIR CONDITIONING COMPRESSOR	267144 AIR CONDITIONING COMPRESSOR Applicable for HELE; Applicable for Stop & Start; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
30	267144	AIR CONDITIONING COMPRESSOR	267144 AIR CONDITIONING COMPRESSOR Not for HELE; Applicable for Soft Start; Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 97352	-	1	Enquire
31	243936	SCREW	243936 SCREW	-	1	Enquire
32	14307224	SCREW	14307224 SCREW	-	1	Enquire
33	11193874	WASHER	11193874 WASHER	-	2	Enquire
34	250238	OUTER SHIELD SUPPORT BRACKET	250238 OUTER SHIELD SUPPORT BRACKET	-	1	Enquire
35	274851	SHIELD MOUNTING BRACKET ON CRANKCASE	274851 SHIELD MOUNTING BRACKET ON CRANKCASE Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	-	1	Enquire
35	279336	SHIELD MOUNTING BRACKET ON CRANKCASE	279336 SHIELD MOUNTING BRACKET ON CRANKCASE Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
35	250239	CRANKCASE SHIELD SUPPORT BRACKET	250239 CRANKCASE SHIELD SUPPORT BRACKET Not for HELE; Not for Stop & Start	-	1	Enquire
36	246208	SCREW	246208 SCREW	-	1	Enquire
37	11186374	WASHER	11186374 WASHER	-	1	Enquire
38	262172	CABLE FROM ALTERNATOR TO STARTER MOTOR	262172 CABLE FROM ALTERNATOR TO STARTER MOTOR Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
38	256467	CABLE FROM ALTERNATOR TO STARTER MOTOR	256467 CABLE FROM ALTERNATOR TO STARTER MOTOR Not for HELE; Not for Stop & Start	-	1	Enquire
39	247169	ALTERNATOR BRACKET STIFFENER	247169 ALTERNATOR BRACKET STIFFENER	-	1	Enquire
40	231620	SCREW	231620 SCREW M6 X 25	-	5	Enquire
41	222072	CLIP	222072 CLIP D. 20	-	2	Enquire
42	246722	CLIP	246722 CLIP D. 23	-	1	Enquire
43	279335	HEAT SHIELD	279335 HEAT SHIELD Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
43	253024	ANTI-HEAT SHIELD	253024 ANTI-HEAT SHIELD Not for HELE; Not for Stop & Start	-	1	Enquire
43	274850	HEAT SHIELD	274850 HEAT SHIELD Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	-	1	Enquire
44	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; Not for HELE; Not for Stop & Start	-	2	Enquire
45	86768100	SCREW	86768100 SCREW Applicable for HELE; Applicable for Stop & Start	-	2	Enquire
46	11193874	WASHER	11193874 WASHER Applicable for HELE; Applicable for Stop & Start	-	2	Enquire
47	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for HELE; Applicable for Stop & Start	-	2	Enquire
48	12643724	WASHER	12643724 WASHER Applicable for HELE; Applicable for Stop & Start	-	3	Enquire
