Crankshaft, Connecting Rods And Pistons

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - CRANKSHAFT, CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
272396 CRANKSHAFT $5,119.15 To Order
234930 CRANKSHAFT $1,826.88 To Order
Photo Part No Description Price (each) Stock
286833 UPPER HALF-BEARING $24.05 IN STOCK
268865 UPPER HALF-BEARING $22.45 To Order
268864 UPPER HALF-BEARING $25.66 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
268870 LOWER HALF-BEARING $22.45 To Order
286837 LOWER HALF-BEARING $22.45 IN STOCK
286837 LOWER HALF-BEARING $22.45 IN STOCK
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
261727 SHIM RING $10.26 To Order
222874 SHIM RING $31.90 To Order
222874 SHIM RING $31.90 To Order
Photo Part No Description Price (each) Stock
176396 THREADED PLUG $5.35 To Order
Photo Part No Description Price (each) Stock
263683 WASHER $50.54 To Order
Photo Part No Description Price (each) Stock
196216 SCREW $72.73 IN STOCK
Photo Part No Description Price (each) Stock
188717 Front Crankshaft Seal $28.87 ARRIVING SOON
Photo Part No Description Price (each) Stock
200323 REAR MAIN OIL SEALING RING D.80-100X10 $49.73 IN STOCK
Photo Part No Description Price (each) Stock
186201 TAB $0.96 To Order
Photo Part No Description Price (each) Stock
268163 COMPL. CONNECTING ROD AND CAP $199.25 To Order
281167 COMPL. CONNECTING ROD AND CAP $199.25 To Order
Photo Part No Description Price (each) Stock
264370 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $481.36 To Order
277396 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $609.73 To Order
264370 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $481.36 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
178890 STOP RING $3.29 To Order
Photo Part No Description Price (each) Stock
198260 GUDGEON PIN $66.26 To Order
Photo Part No Description Price (each) Stock
234861 BUSHING $6.74 To Order
234861 BUSHING $6.74 To Order
234861 BUSHING $6.74 To Order
Photo Part No Description Price (each) Stock
218371 CONNECTING ROD TIGHTENING SCREW $82.27 To Order
Photo Part No Description Price (each) Stock
261720 CONNECTING ROD HALF-BEARING $18.83 To Order
204292 CONNECTING ROD HALF-BEARING $8.82 IN STOCK
204292 CONNECTING ROD HALF-BEARING $8.82 IN STOCK
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
224608 ALIGNMENT PIN $3.52 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $30.39 IN STOCK
Photo Part No Description Price (each) Stock
254778 COMPL. PISTON RING SET $246.56 To Order
Photo Part No Description Price (each) Stock
258636 DIAMOND COATED WASHER $77.00 To Order
View All

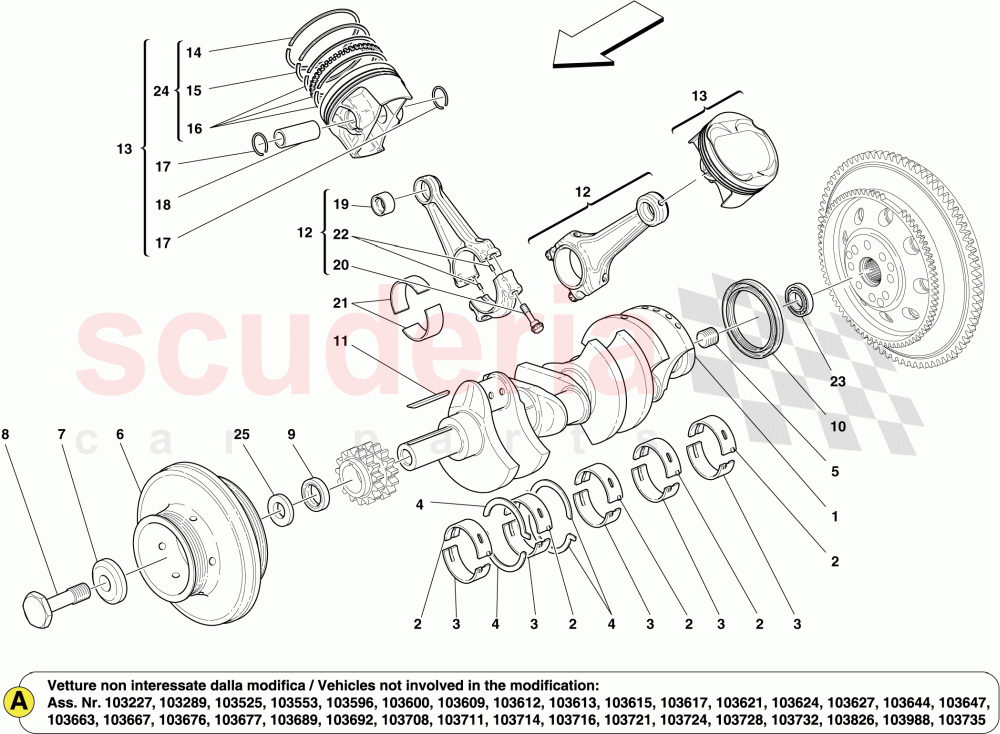

CRANKSHAFT, CONNECTING RODS AND PISTONS of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 272396
CRANKSHAFT
Replaces 261181; Includes threaded cap 176396, ref. 5; Applicable from Ass. No. 98368; Applicable from engine No. 172991 		$5,119.15 1
1 234930
CRANKSHAFT
Applicable up to Ass. No. 88122; Applicable up to engine No. 153878 		$1,826.88 1
2 286833
UPPER HALF-BEARING
Yellow; Applicable for EU GS, UK; Applicable up to engine No. 172990
IN STOCK 		$24.05 5
2 268865
UPPER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$22.45 5
2 268864
UPPER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$25.66 5
2 286833
UPPER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$24.05 5
2 286832
UPPER MAIN HALF BEARING BLUE
Blue; Not for EU GS, UK
IN STOCK 		$24.05 5
2 286832
UPPER MAIN HALF BEARING BLUE
Blue; Applicable for EU GS, UK; Applicable up to engine No. 172990
IN STOCK 		$24.05 5
2 286834
UPPER HALF-BEARING
Green; Standard; Applicable for EU GS, UK; Applicable up to engine No. 172990
IN STOCK 		$24.05 5
2 268866
UPPER HALF-BEARING
Green; Standard; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991
IN STOCK 		$24.05 5
2 286834
UPPER HALF-BEARING
Green; Standard; Not for EU GS, UK
IN STOCK 		$24.05 5
3 268870
LOWER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$22.45 5
3 286837
LOWER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$22.45 5
3 286837
LOWER HALF-BEARING
Yellow; Applicable for EU GS, UK; Applicable up to engine No. 172990
IN STOCK 		$22.45 5
3 268869
LOWER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$25.66 5
3 268871
LOWER HALF-BEARING
Green; Standard; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$24.05 5
3 200194
Lower Main Half Bearing Blue
Blue; Not for EU GS, UK
IN STOCK 		$30.47 5
3 200194
Lower Main Half Bearing Blue
Blue; Applicable for EU GS, UK; Applicable up to engine No. 172990
IN STOCK 		$30.47 5
3 286838
LOWER HALF-BEARING
Green; Standard; Not for EU GS, UK 		$22.45 5
3 286838
LOWER HALF-BEARING
Green; Standard; Applicable for EU GS, UK; Applicable up to engine No. 172990 		$22.45 5
4 261727
SHIM RING
Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$10.26 4
4 222874
SHIM RING
Not for EU GS, UK 		$31.90 4
4 222874
SHIM RING
Applicable for EU GS, UK; Applicable up to engine No. 172990 		$31.90 4
5 176396
THREADED PLUG
Included with crankshaft 272396, ref.1 		$5.35 1
7 263683
WASHER 		$50.54 1
8 196216
SCREW
IN STOCK 		$72.73 1
9 188717
Front Crankshaft Seal
ARRIVING SOON 		$28.87 (26.7% off) 1
10 200323
REAR MAIN OIL SEALING RING D.80-100X10
IN STOCK 		$49.73 (25.9% off) 1
11 186201
TAB 		$0.96 1
12 268163
COMPL. CONNECTING ROD AND CAP
Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$199.25 8
12 281167
COMPL. CONNECTING ROD AND CAP
not affected by modification; Not for EU GS, UK; Applicable from Ass. No. 103179 		$199.25 8
13 264370
PISTON COMPL. WITH RINGS, LH CYLINDER BANK
Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 103178 		$481.36 4
13 277396
PISTON COMPL. WITH RINGS, LH CYLINDER BANK
not affected by modification; Not for USA, CDN, USA LIGHT; Applicable from Ass. No. 103179 		$609.73 4
13 264370
PISTON COMPL. WITH RINGS, LH CYLINDER BANK
Applicable for USA, CDN, USA LIGHT 		$481.36 4
13 264369
PISTON COMPL. WITH RINGS, RH CYLINDER BANK
Applicable for USA, CDN, USA LIGHT 		$481.36 4
13 264369
PISTON COMPL. WITH RINGS, RH CYLINDER BANK
Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 103178 		$481.36 4
13 277395
PISTON COMPL. WITH RINGS, RH CYLINDER BANK
not affected by modification; Not for USA, CDN, USA LIGHT; Applicable from Ass. No. 103179 		$625.78 4
17 178890
STOP RING
Applicable until depletion 		$3.29 16
18 198260
GUDGEON PIN
Applicable until depletion 		$66.26 8
19 234861
BUSHING
Applicable for EU GS, UK; Applicable up to engine No. 172990 		$6.74 8
19 234861
BUSHING
Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$6.74 8
19 234861
BUSHING
Not for EU GS, UK 		$6.74 8
20 218371
CONNECTING ROD TIGHTENING SCREW 		$82.27 16
21 261720
CONNECTING ROD HALF-BEARING
Black; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$18.83 16
21 204292
CONNECTING ROD HALF-BEARING
Black; Not for EU GS, UK
IN STOCK 		$8.82 16
21 204292
CONNECTING ROD HALF-BEARING
Black; Applicable for EU GS, UK; Applicable up to engine No. 172990
IN STOCK 		$8.82 16
21 204291
CONNECTING ROD HALF-BEARING BLUE
Blue; Not for EU GS, UK 		$8.82 (64.5% off) 16
21 204291
CONNECTING ROD HALF-BEARING BLUE
Blue; Applicable for EU GS, UK; Applicable up to engine No. 172990 		$8.82 (64.5% off) 16
21 261719
CONNECTING ROD HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$18.83 16
21 204290
Connecting Rod Half Bearing Red
Red; Standard; Applicable for EU GS, UK; Applicable up to engine No. 172990 		$8.82 16
21 261718
CONNECTING ROD HALF-BEARING
Red; Standard; Lead free; Applicable for EU GS, UK; Applicable from engine No. 172991 		$18.83 16
21 204290
Connecting Rod Half Bearing Red
Red; Standard; Not for EU GS, UK 		$8.82 16
22 224608
ALIGNMENT PIN 		$3.52 4
23 103877
BEARING
IN STOCK 		$30.39 1
24 254778
COMPL. PISTON RING SET 		$246.56 8
25 258636
DIAMOND COATED WASHER 		$77.00 1
