RIGHT HAND CYLINDER HEAD

Find Your Part

Ferrari California (2012-2014) - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
272044 COMPLETE RH HEAD $1,832.53 To Order
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.20 To Order
Photo Part No Description Price (each) Stock
282756 THREADED PLUG $2.84 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $2.14 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.31 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.17 To Order
Photo Part No Description Price (each) Stock
243721 SCREW WITH WASHER $0.50 To Order
231624 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.17 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 To Order
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.58 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 To Order
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.58 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
256827 GRUB SCREW $5.58 To Order
226415 DOWEL $5.48 To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.94 To Order
Photo Part No Description Price (each) Stock
296016 VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE $208.58 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $19.24 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.54 To Order
Photo Part No Description Price (each) Stock
259946 RH HEAD COVER $673.92 To Order
259946 RH HEAD COVER $673.92 To Order
Photo Part No Description Price (each) Stock
239179 RH Head Cover Gasket $48.12 To Order
264094 RH HEAD COVER GASKET $91.45 To Order
Photo Part No Description Price (each) Stock
203102 Rubber Bushing $5.36 To Order
239748 RUBBER BUSHING $8.09 To Order
Photo Part No Description Price (each) Stock
261544 BUSHING $37.25 To Order
261543 BUSHING $15.07 To Order
261544 BUSHING $37.25 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
239501 SCREW $0.57 To Order
239501 SCREW $0.57 To Order
239501 SCREW $0.57 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
239614 GASKET $6.73 To Order
Photo Part No Description Price (each) Stock
224573 TIMING SENSOR $39.30 ARRIVING SOON
Photo Part No Description Price (each) Stock
200458 CHECK VALVE $9.77 To Order
View All

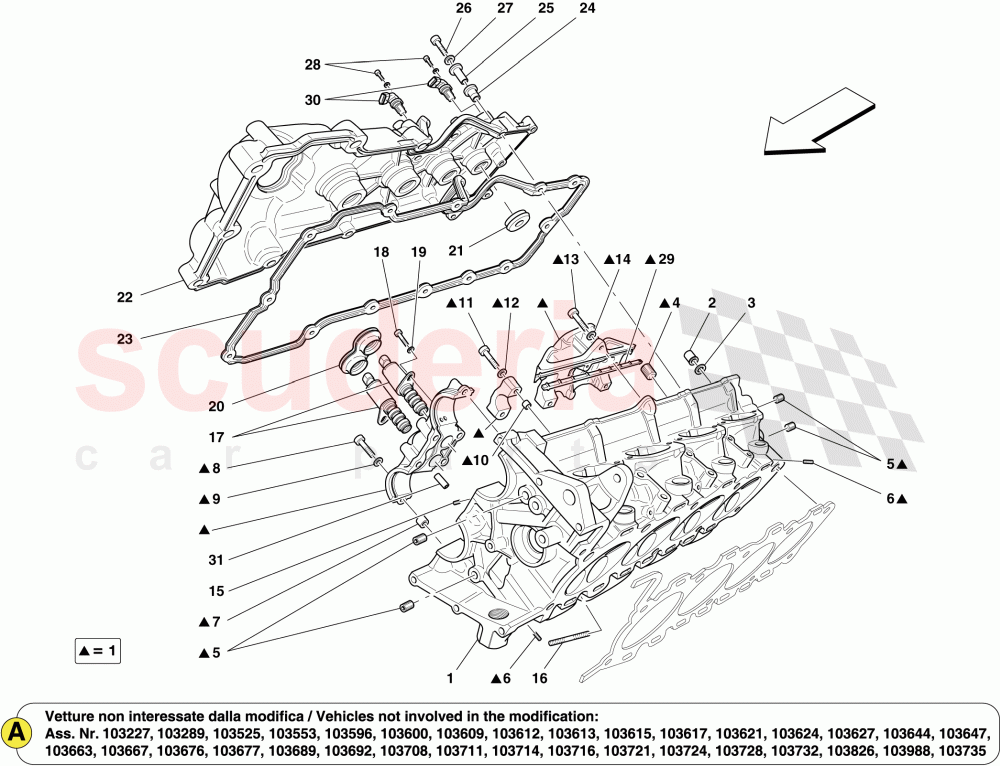

RIGHT HAND CYLINDER HEAD of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 272044
COMPLETE RH HEAD
For vehicles up to engine No. 189672 also order LH cylinder head 272045, bush 257217 tab.51 pos.18, bush 257220 tab.51 pos.17, bush 247088 tab. 50 pos.16 and screw 14308324 tab.51 ref.13 		$1,832.53 1
2 321187
NUT 		- 10 Enquire
3 151117
WASHER 		$1.20 10
4 282756
THREADED PLUG 		$2.84 5
5 282755
THREADED PLUG 		$2.14 4
6 199760
THREADED PLUG 		$0.31 5
7 102725
CENTERING DOWEL 		$1.17 (48% off) 2
8 243721
SCREW WITH WASHER
Applicable from engine No. 153469 		$0.50 6
8 231624
SCREW
Applicable up to engine No. 153468 		$0.44 6
9 11197774
WASHER
Applicable up to engine No. 153468 		$0.06 (80% off) 6
10 102725
CENTERING DOWEL 		$1.17 (48% off) 2
11 231622
SCREW
Applicable up to engine No. 153468 		$0.36 (28% off) 12
11 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
Applicable from engine No. 153469 		$0.58 12
12 11197774
WASHER
Applicable up to engine No. 153468 		$0.06 (80% off) 12
13 231622
SCREW
Applicable up to engine No. 153468 		$0.36 (28% off) 4
13 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
Applicable from engine No. 153469 		$0.58 4
14 11197774
WASHER
Applicable up to engine No. 153468 		$0.06 (80% off) 5
15 256827
GRUB SCREW
Applicable from engine No. 149384 		$5.58 2
15 226415
DOWEL
Applicable up to engine No. 149383 		$5.48 2
16 13543424
STUD BOLT 		$1.94 8
17 296016
VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
With grease on connector 		$208.58 (19.1% off) 2
18 14304124
SCREW 		$0.16 (78.7% off) 2
19 11181574
WASHER 		$0.02 2
20 229353
SOLENOID VALVE GASKET 		$19.24 (34.3% off) 1
21 223982
SPARK PLUG TUBE SEAL 		$2.54 (36% off) 4
22 259946
RH HEAD COVER
For vehicles up to engine No. 146192, also order: RH camshaft 250173 tab.5 pos.6, RH head cover 264094 pos. 23 and screw 156830 pos. 26 		$673.92 1
22 259946
RH HEAD COVER
For vehicles up to engine No. 185627, also order: RH head cover 264094 pos.23 and screw 156830 pos.26 		$673.92 1
23 239179
RH Head Cover Gasket
Applicable up to engine No. 185627 		$48.12 (49.5% off) 1
23 264094
RH HEAD COVER GASKET
Applicable from engine No. 185628 		$91.45 (15.1% off) 1
24 203102
Rubber Bushing
Applicable up to engine No. 185627 		$5.36 11
24 239748
RUBBER BUSHING
Applicable up to engine No. 185627 		$8.09 5
25 261544
BUSHING
Applicable from engine No. 152970 up to engine No. 185627 		$37.25 5
25 261543
BUSHING
Applicable from engine No. 152970 up to engine No. 185627 		$15.07 11
25 261544
BUSHING
Applicable up to engine No. 152969 		$37.25 5
25 228598
BUSHING
Applicable up to engine No. 152969 		$3.40 11
26 239501
SCREW
Replaces 250383; Applicable for DCT-F1 gearbox (Not for mechanical gearbox) 		$0.57 1
26 239501
SCREW 		$0.57 4
26 239501
SCREW
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$0.57 1
26 213129
SCREW
Applicable up to engine No. 185627 		$0.70 11
26 156830
ALLEN SCREW M6 X 40
Applicable from engine No. 185628 		$0.96 (25.6% off) 11
27 11197774
WASHER 		$0.06 (80% off) 16
28 248334
SCREW
M6 X 14 		$0.68 2
29 239614
GASKET 		$6.73 1
30 224573
TIMING SENSOR
ARRIVING SOON 		$39.30 (29.1% off) 2
31 200458
CHECK VALVE 		$9.77 2
