LUBRICATION: CIRCUIT AND PICKUP of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - LUBRICATION: CIRCUIT AND PICKUP

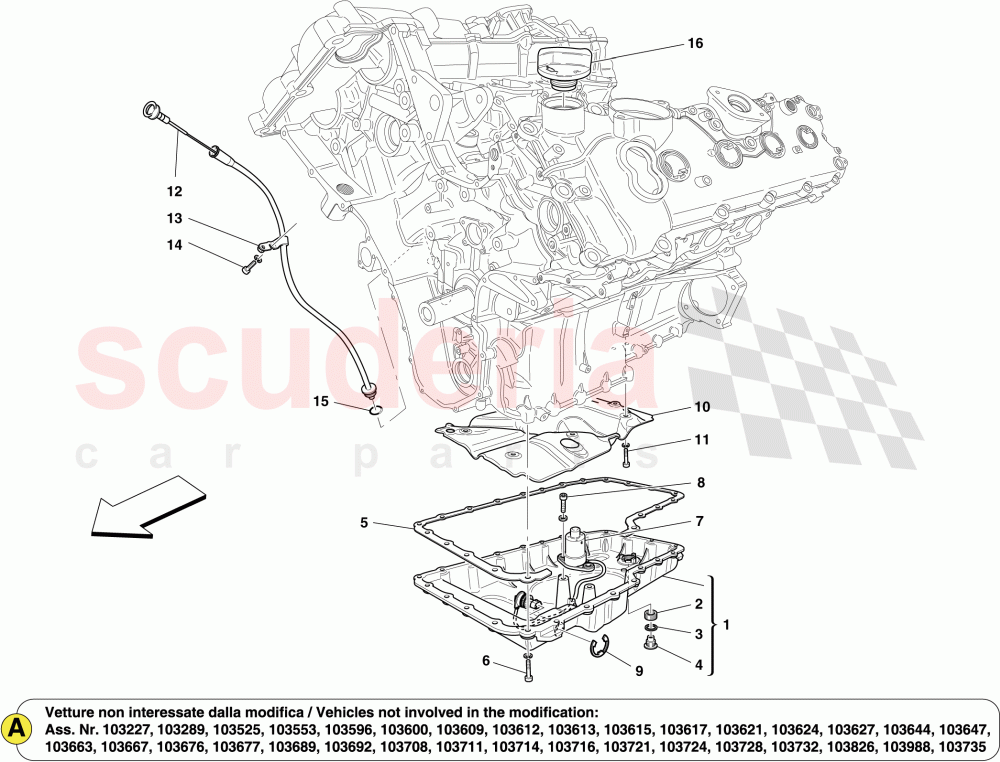

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	240052	COMPLETE OIL SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	230171	OIL LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261013	SUMP SHIELD	Enquire	To Order
	251166	SUMP SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	Enquire	To Order
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256298	OIL DIPSTICK	Enquire	To Order
	250954	OIL DIPSTICK	Enquire	To Order
	250940	OIL DIPSTICK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	263742	DIPSTICK HOLDER EXTENSION	Enquire	To Order
	252371	OIL LEVEL ROD EXTENTION	Enquire	To Order
	250808	OIL LEVEL ROD EXTENTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159871	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247720	OIL PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	240052	COMPLETE OIL SUMP	240052 COMPLETE OIL SUMP	-	1	Enquire
2	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	-	1	Enquire
3	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	-	1	Enquire
4	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	-	1	Enquire
6	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	24	Enquire
7	230171	OIL LEVEL SENSOR	230171 OIL LEVEL SENSOR	-	1	Enquire
8	231625	SCREW	231625 SCREW	-	2	Enquire
9	16165276	SNAP RING	16165276 SNAP RING	-	1	Enquire
10	261013	SUMP SHIELD	261013 SUMP SHIELD Applicable from Ass. No. 88123; Applicable from engine No. 153879	-	1	Enquire
10	251166	SUMP SHIELD	251166 SUMP SHIELD Applicable up to Ass. No. 88122; Applicable up to engine No. 153878	-	1	Enquire
11	282393	SCREW	282393 SCREW M6 X 14	-	6	Enquire
11	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; No longer supplied; Replaced by 282392	-	6	Enquire
12	256298	OIL DIPSTICK	256298 OIL DIPSTICK Applicable for GD; Applicable from Ass. No. 88123; Applicable from engine No. 153879	-	1	Enquire
12	250954	OIL DIPSTICK	250954 OIL DIPSTICK Applicable for GD; Applicable up to Ass. No. 88122; Applicable up to engine No. 153878	-	1	Enquire
12	250940	OIL DIPSTICK	250940 OIL DIPSTICK Not for GD; Applicable up to Ass. No. 88122; Applicable up to engine No. 153878	-	1	Enquire
12	263534	OIL DIPSTICK	263534 OIL DIPSTICK Not for GD; Applicable from Ass. No. 88123 up to Ass. No. 103178; Applicable from engine No. 153879	-	1	Enquire
13	263742	DIPSTICK HOLDER EXTENSION	263742 DIPSTICK HOLDER EXTENSION not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
13	252371	OIL LEVEL ROD EXTENTION	252371 OIL LEVEL ROD EXTENTION Applicable for GD	-	1	Enquire
13	250808	OIL LEVEL ROD EXTENTION	250808 OIL LEVEL ROD EXTENTION Not for GD; Applicable up to Ass. No. 103178	-	1	Enquire
14	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
15	159871	SEAL RING	159871 SEAL RING	-	1	Enquire
16	247720	OIL PLUG	247720 OIL PLUG	-	1	Enquire
