RIGHT HAND INJECTION SYSTEM - IGNITION of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - RIGHT HAND INJECTION SYSTEM - IGNITION

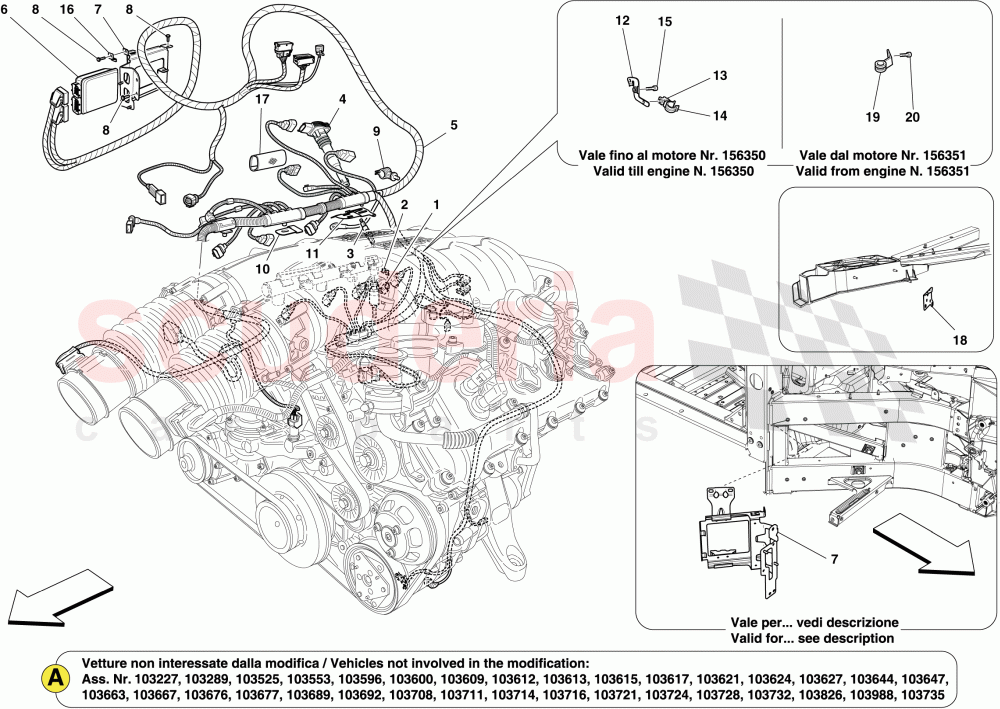

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247589	ELECTRO-INJECTOR	Enquire	To Order
	247588	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231926	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246615	Spark Plug	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	281449	Ignition Coil	Enquire	To Order
	281449	Ignition Coil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274644	RH INJECTION WIRING HARNESS	Enquire	To Order
	283502	RH INJECTION WIRING HARNESS	Enquire	To Order
	274644	RH INJECTION WIRING HARNESS	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	238263	IGNITION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239998	RH BRACKET	Enquire	To Order
	282838	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320598	CLIP	Enquire	To Order
	246722	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251449	R.H. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251448	R.H. REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247665	R.H. WATER PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140162	ANCHOR FOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140730	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236876	CONTROL UNIT FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251811	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248610	FRONT CABLE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65996800	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	247589	ELECTRO-INJECTOR	247589 ELECTRO-INJECTOR Pressure sensor side; Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14; No longer supplied	-	2	Enquire
1	247588	ELECTRO-INJECTOR	247588 ELECTRO-INJECTOR Opposite pressure sensor side; Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14; No longer supplied	-	2	Enquire
2	231926	CLIP	231926 CLIP Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14; No longer supplied	-	4	Enquire
3	246615	Spark Plug ARRIVING SOON	246615 Spark Plug ARRIVING SOON	-	4	Enquire
4	281449	Ignition Coil	281449 Ignition Coil Applicable up to Ass. No. 105501	-	4	Enquire
4	281449	Ignition Coil	281449 Ignition Coil Applicable from Ass. No. 105502	-	4	Enquire
5	274644	RH INJECTION WIRING HARNESS	274644 RH INJECTION WIRING HARNESS Applicable for Soft Start; Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 97352	-	1	Enquire
5	283502	RH INJECTION WIRING HARNESS	283502 RH INJECTION WIRING HARNESS Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
5	274644	RH INJECTION WIRING HARNESS	274644 RH INJECTION WIRING HARNESS Applicable for Soft Start; Applicable from MY 11; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
5	264131	R.H. ENGINE INJECTION CABLE	264131 R.H. ENGINE INJECTION CABLE Applicable for Stop & Start; Applicable up to Ass. No. 95557	-	1	Enquire
5	268672	RH INJECTION WIRING HARNESS	268672 RH INJECTION WIRING HARNESS Applicable for HELE; Applicable for Stop & Start; Applicable from Ass. No. 95558 up to Ass. No. 103178	-	1	Enquire
5	254773	R.H. ENGINE INJECTION CABLE	254773 R.H. ENGINE INJECTION CABLE Not for Stop & Start; Applicable up to Ass. No. 90970; Applicable up to engine No. 159182	-	1	Enquire
5	264124	R.H. ENGINE INJECTION CABLE	264124 R.H. ENGINE INJECTION CABLE Not for HELE; Not for Stop & Start; Applicable from Ass. No. 90971; Applicable from engine No. 159183	-	1	Enquire
6	238263	IGNITION ECU	238263 IGNITION ECU Unprogrammed	-	1	Enquire
7	239998	RH BRACKET	239998 RH BRACKET Applicable up to Ass. No. 103178	-	1	Enquire
7	282838	RH BRACKET	282838 RH BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
8	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM Applicable up to Ass. No. 103178	-	3	Enquire
8	16286124	SCREW	16286124 SCREW not affected by modification; Applicable from Ass. No. 103179	-	4	Enquire
9	320598	CLIP	320598 CLIP D. 16	-	2	Enquire
9	246722	CLIP	246722 CLIP D. 23	-	1	Enquire
10	251449	R.H. FRONT BRACKET	251449 R.H. FRONT BRACKET	-	1	Enquire
11	251448	R.H. REAR BRACKET	251448 R.H. REAR BRACKET	-	1	Enquire
12	247665	R.H. WATER PIPE BRACKET	247665 R.H. WATER PIPE BRACKET Applicable up to engine No. 156350	-	1	Enquire
13	140162	ANCHOR FOR CLIP	140162 ANCHOR FOR CLIP Applicable up to engine No. 156350	-	1	Enquire
14	140730	FASTENER CLIP	140730 FASTENER CLIP Applicable up to engine No. 156350	-	1	Enquire
15	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
16	236876	CONTROL UNIT FIXING BRACKET	236876 CONTROL UNIT FIXING BRACKET	-	1	Enquire
17	251811	HEAT SHIELD	251811 HEAT SHIELD	-	1	Enquire
18	248610	FRONT CABLE FASTENER BRACKET	248610 FRONT CABLE FASTENER BRACKET	-	1	Enquire
19	65996800	BRACKET	65996800 BRACKET Applicable from engine No. 156351	-	1	Enquire
20	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; Applicable from engine No. 156351	-	1	Enquire
