TIMING SYSTEM - DRIVE of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - TIMING SYSTEM - DRIVE

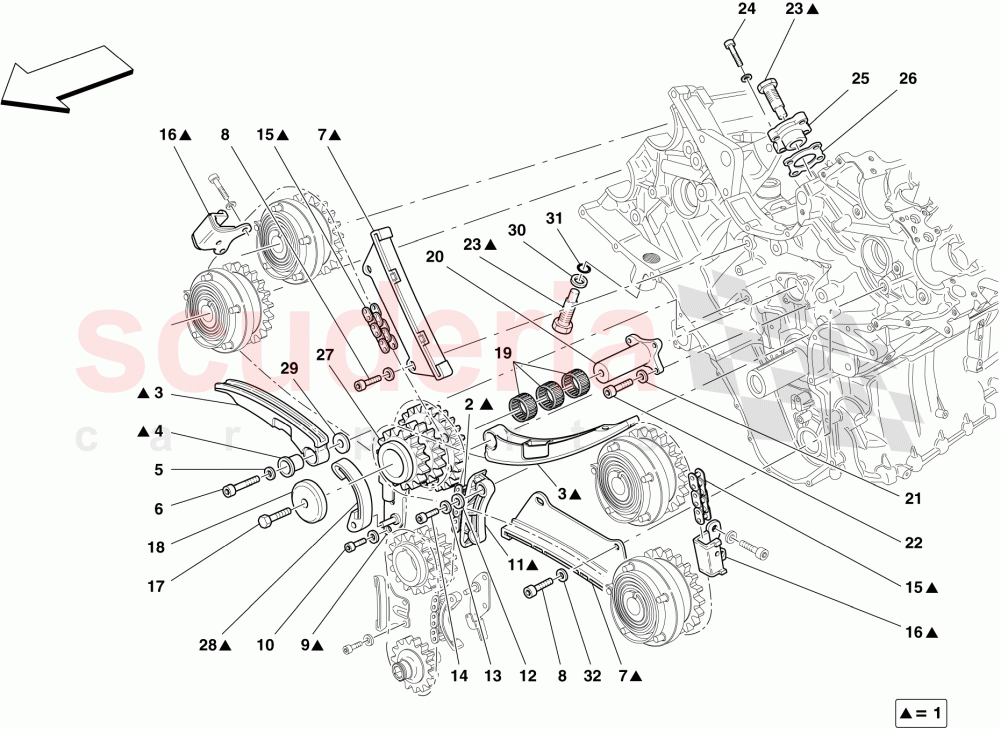

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248388	OIL PUMP AND TIMING CONTROL ASSEMBLY	$1,299.71	To Order
	316221	VALVE TIMING SYSTEM AND OIL PUMP	$1,781.09	To Order

Photo	Part No	Description	Price (each)	Stock
	175286	DRIVE CHAIN	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	186184	TIMING CHAIN GUIDING SHOE	$147.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186185	Fixed Tension Guide - Timing Chain	$57.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	$0.47	To Order
	231627	SCREW	$0.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186159	CHAIN SUPPORT	$30.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.75	To Order
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	193616	VALVE TIMING CHAIN	$137.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock

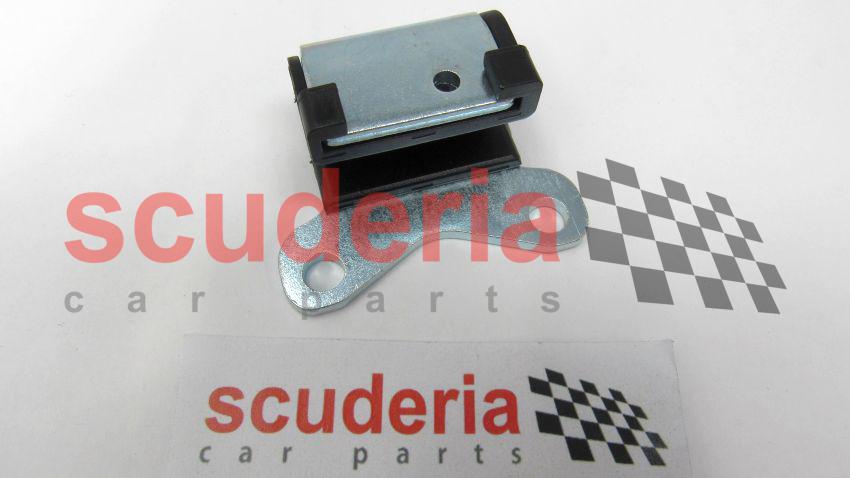

	222310	UPPER FIXED SHOE	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW	$0.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	194262	SHOULDER	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	175282	ROLLER BEARING CAGE	$9.94	To Order

Photo	Part No	Description	Price (each)	Stock
	212970	MOUNTING	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock

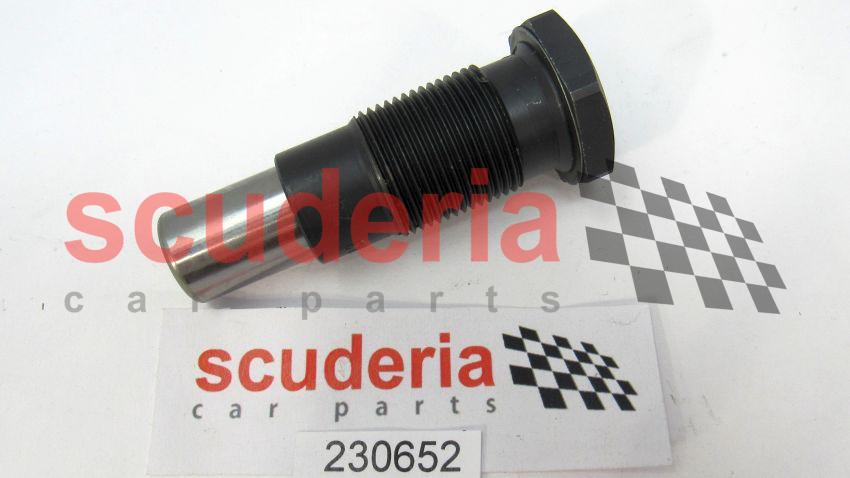

	230652	HYDRAULIC TENSIONER	$154.03	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190060	TENSIONER BUSHING	$37.65	To Order

Photo	Part No	Description	Price (each)	Stock
	193565	DRIVE GEAR	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	196683	SHOE ASSEMBLY	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	175306	SHOULDER	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	190171	SPACER	$6.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	192069	O-RING D.26 X 1.5	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$13.10	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	248388	OIL PUMP AND TIMING CONTROL ASSEMBLY	248388 OIL PUMP AND TIMING CONTROL ASSEMBLY Applicable up to engine No. 166072	$1,299.71	1
1	316221	VALVE TIMING SYSTEM AND OIL PUMP	316221 VALVE TIMING SYSTEM AND OIL PUMP Applicable from engine No. 166073	$1,781.09	1
2	175286	DRIVE CHAIN	175286 DRIVE CHAIN	$44.91	1
3	186184	TIMING CHAIN GUIDING SHOE IN STOCK	186184 TIMING CHAIN GUIDING SHOE IN STOCK	$147.61	2
4	175303	BUSH	175303 BUSH	$33.68	2
6	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	$0.21 MSRP: ~~0.41~~ (48.8% off)	2
7	186185	Fixed Tension Guide - Timing Chain IN STOCK	186185 Fixed Tension Guide - Timing Chain IN STOCK	$57.75	2
8	86768100	SCREW	86768100 SCREW	$0.47	4
8	231627	SCREW IN STOCK	231627 SCREW No longer supplied; Replaced by 14306224 IN STOCK	$0.65 MSRP: ~~0.70~~ (7.1% off)	4
9	186159	CHAIN SUPPORT IN STOCK	186159 CHAIN SUPPORT IN STOCK	$30.47	1
10	282393	SCREW	282393 SCREW M6 X 14	$0.75	2
10	248334	SCREW	248334 SCREW M6 X 14; No longer supplied; Replaced by 282392	$0.68	2
12	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
13	14498801	WASHER IN STOCK	14498801 WASHER IN STOCK	$0.11 MSRP: ~~0.20~~ (45% off)	2
14	231619	SCREW IN STOCK	231619 SCREW IN STOCK	$0.31	2
15	193616	VALVE TIMING CHAIN IN STOCK	193616 VALVE TIMING CHAIN IN STOCK	$137.06	2
16	222310	UPPER FIXED SHOE	222310 UPPER FIXED SHOE Applicable up to engine No. 166072	$60.96	2
17	16043124	SCREW IN STOCK	16043124 SCREW IN STOCK	$0.16	1
18	194262	SHOULDER	194262 SHOULDER	$38.49	1
19	175282	ROLLER BEARING CAGE	175282 ROLLER BEARING CAGE	$9.94 MSRP: ~~11.69~~ (15% off)	3
20	212970	MOUNTING	212970 MOUNTING	$147.61	1
21	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	$0.02	4
22	14304124	SCREW	14304124 SCREW	$0.16 MSRP: ~~0.75~~ (78.7% off)	4
23	230652	HYDRAULIC TENSIONER	230652 HYDRAULIC TENSIONER	$154.03	2
24	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.31	4
25	190060	TENSIONER BUSHING	190060 TENSIONER BUSHING	$37.65	1
27	193565	DRIVE GEAR	193565 DRIVE GEAR	$208.58	1
28	196683	SHOE ASSEMBLY	196683 SHOE ASSEMBLY	$44.91	1
29	175306	SHOULDER	175306 SHOULDER	$4.04	2
30	190171	SPACER IN STOCK	190171 SPACER IN STOCK	$6.53	1
31	192069	O-RING D.26 X 1.5 IN STOCK	192069 O-RING D.26 X 1.5 IN STOCK	$0.52 MSRP: ~~0.60~~ (13.3% off)	1
32	163759	WASHER	163759 WASHER	$13.10	4

Timing System - Drive
