Ferrari 599 GTO - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
227190 DRIVE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
186854 CRANKSHAFT GEAR Enquire To Order
Photo Part No Description Price (each) Stock
175286 DRIVE CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
183761 MOBILE SHOE Enquire To Order
Photo Part No Description Price (each) Stock
175303 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
175306 SHOULDER Enquire To Order
Photo Part No Description Price (each) Stock
198034 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
183929 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
187656 PUMP DRIVE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
186668 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
186186 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
192922 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
175314 PUMP DRIVE CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
186159 CHAIN SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
175410 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
196683 SHOE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
198035 VALVE TIMING CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
239566 COMPL. UPPER FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
14082210 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
194262 SHOULDER Enquire To Order
Photo Part No Description Price (each) Stock
185725 CHAIN TENSIONER SHOE Enquire To Order
Photo Part No Description Price (each) Stock
187742 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
199101 GEAR MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
181336 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
140071 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
197880 HYDRAULIC TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
190060 TENSIONER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
190171 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
192069 O-RING D.26 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
13543824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
187818 NOZZLE Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
86768100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16043124 SCREW M8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
259673 VALVE TIMING AND PUMP DRIVE SYSTEM Enquire To Order
View All

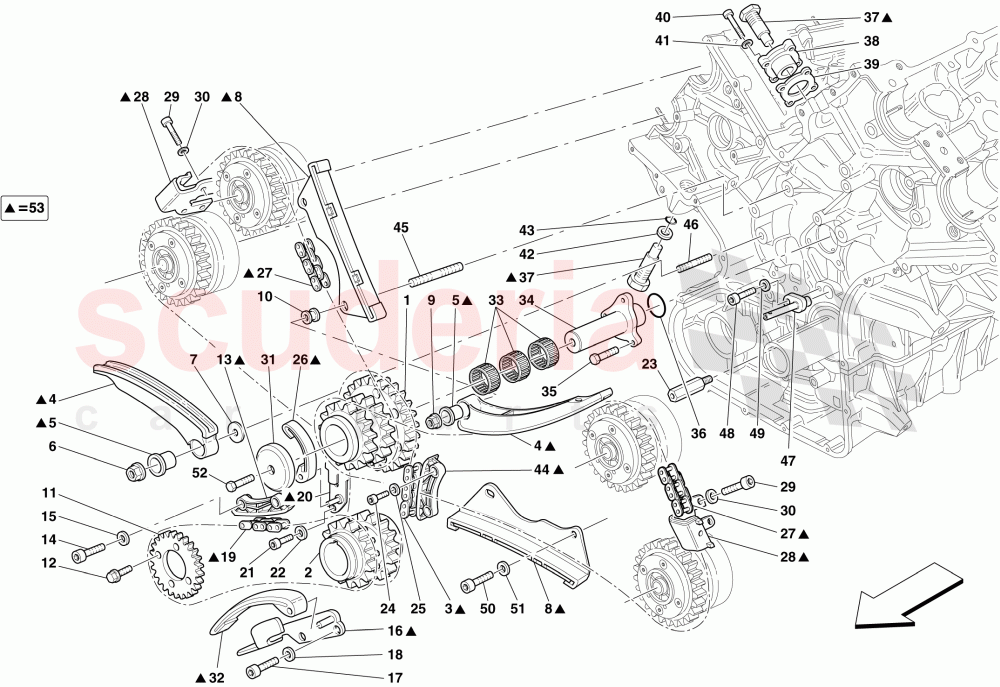

TIMING SYSTEM - DRIVE of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 227190
DRIVE GEAR 		- 1 Enquire
2 186854
CRANKSHAFT GEAR 		- 1 Enquire
3 175286
DRIVE CHAIN 		- 1 Enquire
4 183761
MOBILE SHOE 		- 2 Enquire
5 175303
BUSH 		- 2 Enquire
6 14040711
NUT M8 FLANGED 		- 1 Enquire
7 175306
SHOULDER 		- 1 Enquire
8 198034
FIXED SHOE 		- 2 Enquire
9 14040711
NUT M8 FLANGED 		- 1 Enquire
10 183929
BUSH 		- 1 Enquire
11 187656
PUMP DRIVE GEAR 		- 1 Enquire
12 186668
SCREW 		- 4 Enquire
13 186186
FIXED SHOE 		- 1 Enquire
14 231620
SCREW
L. 25 mm 		- 2 Enquire
15 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
16 192922
MOUNTING 		- 1 Enquire
17 248334
SCREW M6 X 14MM 		- 2 Enquire
18 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
19 175314
PUMP DRIVE CHAIN 		- 1 Enquire
20 186159
CHAIN SUPPORT 		- 1 Enquire
21 248334
SCREW M6 X 14MM 		- 2 Enquire
22 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
23 175410
STUD BOLT 		- 1 Enquire
24 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 2 Enquire
25 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
26 196683
SHOE ASSEMBLY 		- 1 Enquire
27 198035
VALVE TIMING CHAIN 		- 2 Enquire
28 239566
COMPL. UPPER FIXED SHOE 		- 2 Enquire
29 14082210
SCREW 		- 8 Enquire
30 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 8 Enquire
31 194262
SHOULDER 		- 1 Enquire
32 185725
CHAIN TENSIONER SHOE 		- 1 Enquire
33 187742
ROLLER BEARING CAGE 		- 3 Enquire
34 199101
GEAR MOUNT 		- 1 Enquire
35 181336
SCREW 		- 3 Enquire
36 140071
O-Ring 		- 1 Enquire
37 197880
HYDRAULIC TENSIONER 		- 2 Enquire
38 190060
TENSIONER BUSHING 		- 1 Enquire
40 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 4 Enquire
41 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
42 190171
SPACER 		- 1 Enquire
43 192069
O-RING D.26 X 1.5 		- 1 Enquire
45 13543824
STUD BOLT
M8 X 16; Shank length 40 		- 1 Enquire
46 13543124
STUD BOLT 		- 1 Enquire
47 187818
NOZZLE 		- 1 Enquire
48 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 1 Enquire
49 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
50 86768100
SCREW 		- 3 Enquire
51 11193874
WASHER 		- 3 Enquire
52 16043124
SCREW M8 X 14 		- 1 Enquire
53 259673
VALVE TIMING AND PUMP DRIVE SYSTEM 		- 1 Enquire
