LEFT HAND CYLINDER HEAD of Ferrari Ferrari 599 GTO

View All

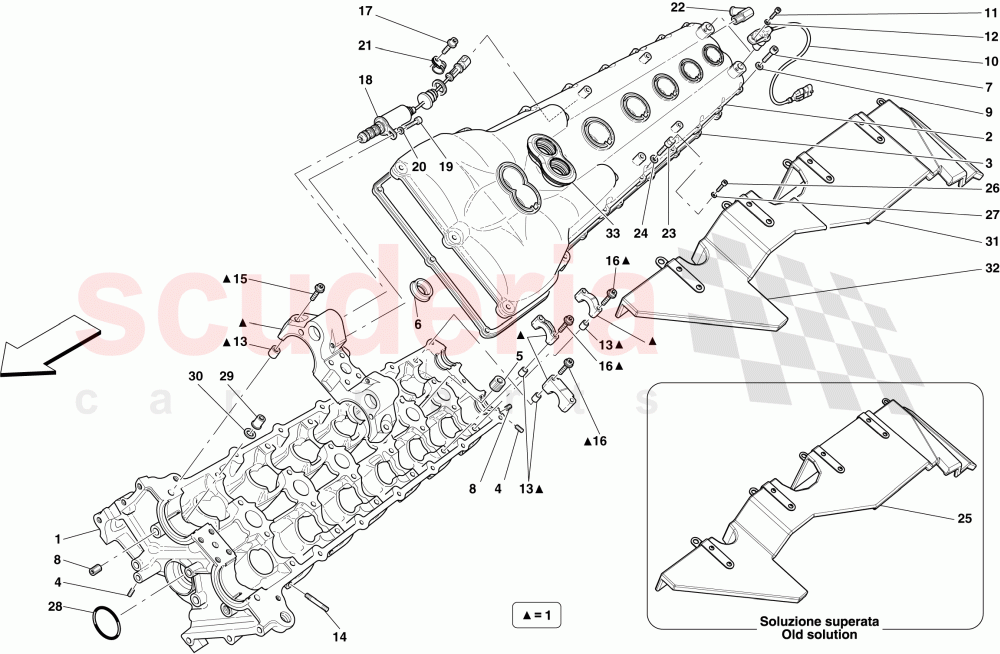

Ferrari 599 GTO - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	258742	LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236703	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

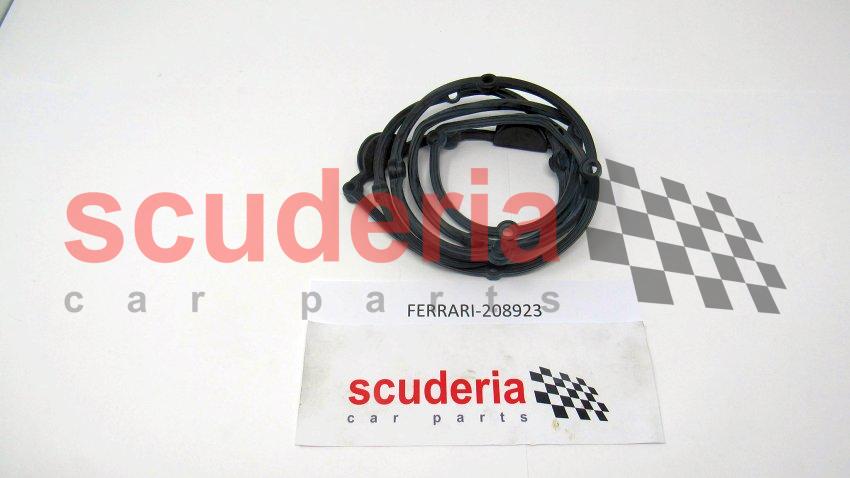

	208923	LH Head Cover Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227048	TIMING SENSOR	Enquire	To Order
	227046	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order
	211641	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243720	SCREW	Enquire	To Order
	243721	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

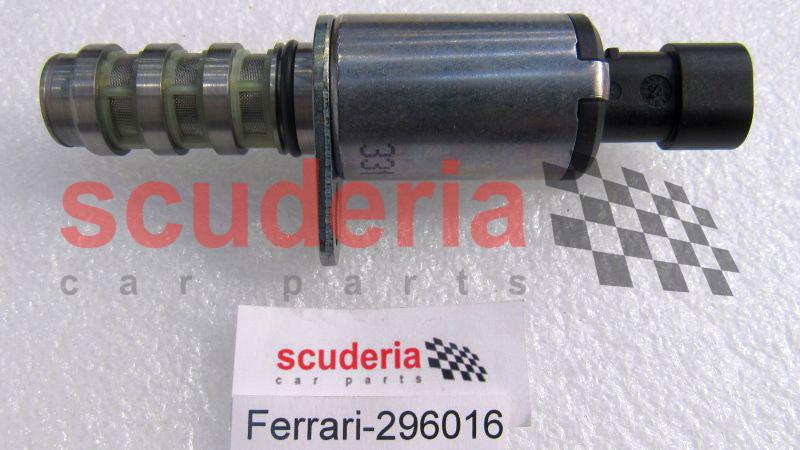

	296016	VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195510	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	Enquire	To Order
	269228	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264189	LH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268088	LH REAR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268087	LH FRONT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	258742	LH HEAD	258742 LH HEAD	-	1	Enquire
2	236703	LH CYLINDER HEAD COVER	236703 LH CYLINDER HEAD COVER	-	1	Enquire
3	208923	LH Head Cover Gasket	208923 LH Head Cover Gasket	-	1	Enquire
4	199760	THREADED PLUG	199760 THREADED PLUG	-	6	Enquire
5	127635	THREADED PLUG	127635 THREADED PLUG	-	12	Enquire
6	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	-	6	Enquire
7	157218	SCREW	157218 SCREW	-	12	Enquire
8	282755	THREADED PLUG	282755 THREADED PLUG	-	5	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	12	Enquire
10	227048	TIMING SENSOR	227048 TIMING SENSOR Intake	-	1	Enquire
10	227046	TIMING SENSOR	227046 TIMING SENSOR Exhaust	-	1	Enquire
11	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	2	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
13	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	26	Enquire
14	13541224	STUD BOLT	13541224 STUD BOLT M6 X 12; Shank length 22	-	12	Enquire
14	211641	STUD BOLT	211641 STUD BOLT M6 X 16; Shank length 24	-	12	Enquire
15	243720	SCREW	243720 SCREW M6 X 40	-	2	Enquire
15	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER M6 X 45	-	4	Enquire
16	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	-	24	Enquire
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
18	296016	VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	296016 VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	-	2	Enquire
19	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	2	Enquire
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
21	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	2	Enquire
22	195510	THREADED CONNECTOR	195510 THREADED CONNECTOR	-	1	Enquire
23	339948	STUD BOLT	339948 STUD BOLT	-	4	Enquire
23	269228	STUD BOLT	269228 STUD BOLT	-	2	Enquire
24	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
25	264189	LH HEAT SHIELD	264189 LH HEAT SHIELD Applicable until depletion	-	1	Enquire
26	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	3	Enquire
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
28	183010	O-RING	183010 O-RING	-	2	Enquire
29	321187	NUT	321187 NUT	-	14	Enquire
30	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	14	Enquire
31	268088	LH REAR HEAT SHIELD	268088 LH REAR HEAT SHIELD Applicable after depletion of 264189	-	1	Enquire
32	268087	LH FRONT HEAT SHIELD	268087 LH FRONT HEAT SHIELD Applicable after depletion of 264189	-	1	Enquire
33	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	-	1	Enquire
