Name: BODYSHELL - ROOF
Rating: 5.0 (1 reviews)

View All

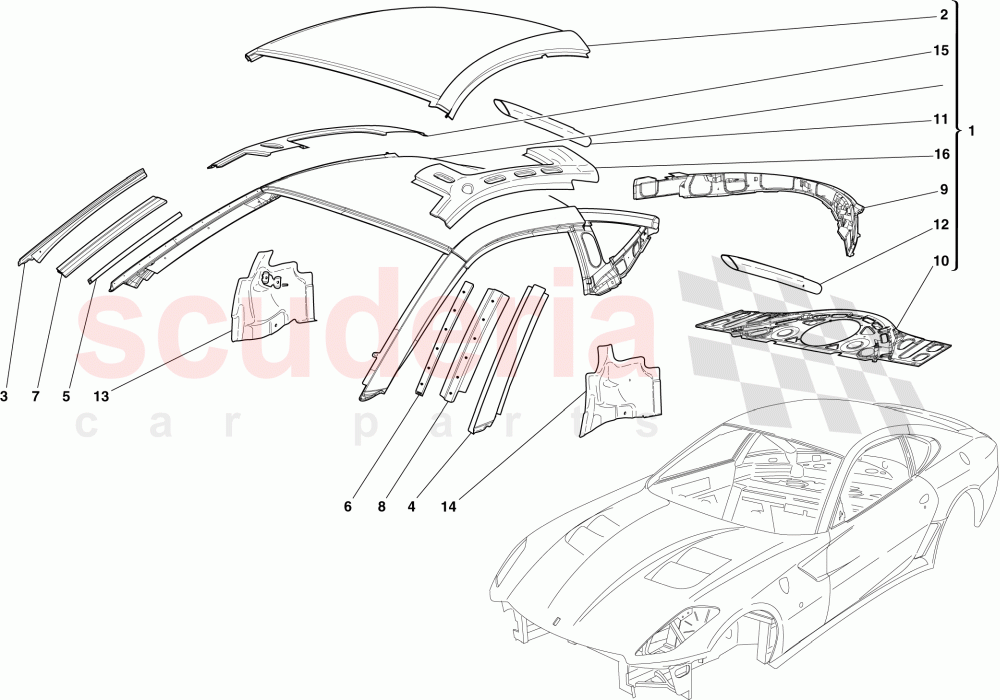

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82797511	OUTER ROOF SKIN	$5,313.78	To Order

Photo	Part No	Description	Price (each)	Stock
	82796711	RH A-PILLAR COVER	$813.68	To Order

Photo	Part No	Description	Price (each)	Stock
	82796811	LH A-PILLAR COVER	$813.68	To Order

Photo	Part No	Description	Price (each)	Stock
	68042711	RH FRONT PILLAR	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	68042811	LH FRONT PILLAR	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	68042511	RH PILLAR CLADDING	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	68042611	LH PILLAR CLADDING	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	82797011	REAR SCREEN CROSS-MEMBER	$3,774.00	To Order

Photo	Part No	Description	Price (each)	Stock
	80214800	RH REAR PILLAR	$1,290.10	To Order

Photo	Part No	Description	Price (each)	Stock
	80214900	L.H. REAR VERTICAL ROD	$1,331.80	To Order

Photo	Part No	Description	Price (each)	Stock
	68053611	RH INTERNAL BRACKET	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	68053711	LH INTERNAL BRACKET	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	68042911	RH ROOF BEAM REINFORCEMENT	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	68043011	LH ROOF BEAM REINFORCEMENT	$497.41	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82796611	COMPLETE ROOF	82796611 COMPLETE ROOF Standard	$14,683.48	1
1	83155511	COMPLETE ROOF	83155511 COMPLETE ROOF Hi-Fi version	$17,661.80	1
2	82797511	OUTER ROOF SKIN	82797511 OUTER ROOF SKIN	$5,313.78	1
3	82796711	RH A-PILLAR COVER	82796711 RH A-PILLAR COVER	$813.68	1
4	82796811	LH A-PILLAR COVER	82796811 LH A-PILLAR COVER	$813.68	1
5	68042711	RH FRONT PILLAR	68042711 RH FRONT PILLAR	$481.36	1
6	68042811	LH FRONT PILLAR	68042811 LH FRONT PILLAR	$481.36	1
7	68042511	RH PILLAR CLADDING	68042511 RH PILLAR CLADDING	$77.00	1
8	68042611	LH PILLAR CLADDING	68042611 LH PILLAR CLADDING	$77.00	1
9	82797011	REAR SCREEN CROSS-MEMBER	82797011 REAR SCREEN CROSS-MEMBER	$3,774.00	1
10	82797311	PARCEL SHELF	82797311 PARCEL SHELF	-	1	Enquire
10	82840911	PARCEL SHELF	82840911 PARCEL SHELF	-	1	Enquire
11	80214800	RH REAR PILLAR	80214800 RH REAR PILLAR	$1,290.10	1
12	80214900	L.H. REAR VERTICAL ROD	80214900 L.H. REAR VERTICAL ROD	$1,331.80	1
13	68053611	RH INTERNAL BRACKET	68053611 RH INTERNAL BRACKET	$139.58	1
14	68053711	LH INTERNAL BRACKET	68053711 LH INTERNAL BRACKET	$139.58	1
15	68042911	RH ROOF BEAM REINFORCEMENT	68042911 RH ROOF BEAM REINFORCEMENT	$497.41	1
16	68043011	LH ROOF BEAM REINFORCEMENT	68043011 LH ROOF BEAM REINFORCEMENT	$497.41	1
